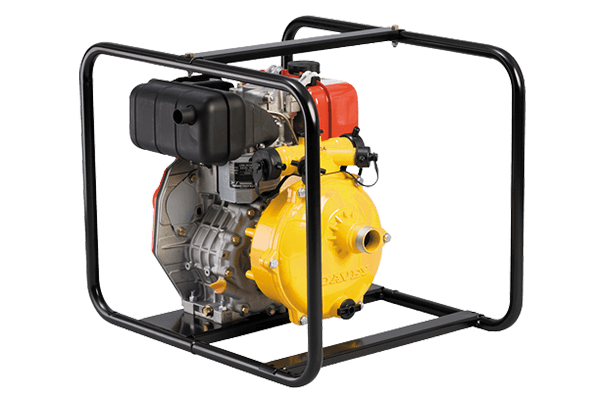

Davey's Firefighter Pump

Davey’s range of firefighter water pumps is widely used by fire departments not just in Australia but worldwide. These pumps have proven, reliable firefighting capability with the flow and high pressure needed for serious firefighting duties.

The pumps feature Davey’s patented single or twin-impeller wet end design that helped achieve higher efficiencies. These portable workhorses also have the flexibility to draw from a shallow or deep well when power is not available.

Features & Benefits

Know more about the features & benefits of using Davey's Firefighter Pump.

Patented clamped impeller design to enable longer impeller life
Improved performance and easier disassembly in the case of blockage
Thrust balanced impeller design extends engine life
Marine-grade aluminum pump casing, diffusers and impellers
Patented floating impeller neckrings to increase efficiency
Low-oil protection on all models

Available Options

We customise pumps according to your specific application. Get in touch with us to know your options.

Spare parts
Single and twin impeller options
Petrol, diesel engine, bareshaft models
Jet kit
3 or 4 way discharge port
Mounting

Key Specifications

Here are the key specifications of Davey's Firefighter Pump.

Flow capacities to 48000 lph
Maximum total head: 120 m
Maximum suction lift: 8 m

Applications

Here is a list of industrial applications for which Davey's Firefighter Pump are commonly utilized.

Firefighting
Tank filling
Water transfer
High head general water transfer
Sheep jetting
Irrigation
Boom spraying
Garden watering
Crop spraying

Different options for a Peristaltic hose pumps tubing

SINGLE IMPELLER

TWIN IMPELLER

DIESEL ENGINE FIREFIGHTER

5190HRS2

5290HRS2

5150P

5250P

OUR RANGE OF AVAILABLE FIREFIGHTER PUMPS

Talk to Experts

Abaque Peristaltic Hose Pump HDX40 model

SINGLE IMPELLER

PETROL-DRIVEN

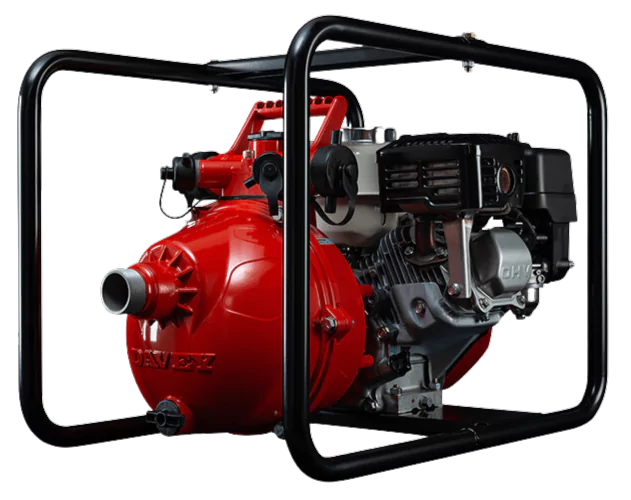

TWIN IMPELLER

PETROL-DRIVEN

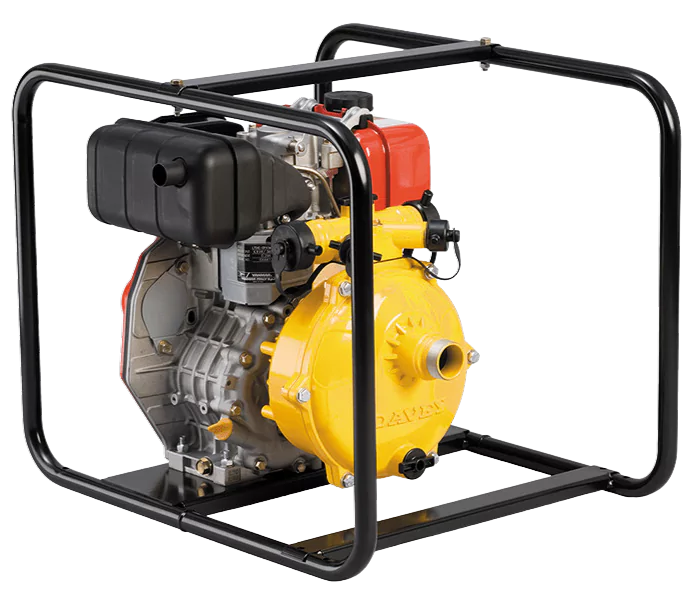

DIESEL ENGINE FIREFIGHTER

DIESEL-ENGINE DRIVEN

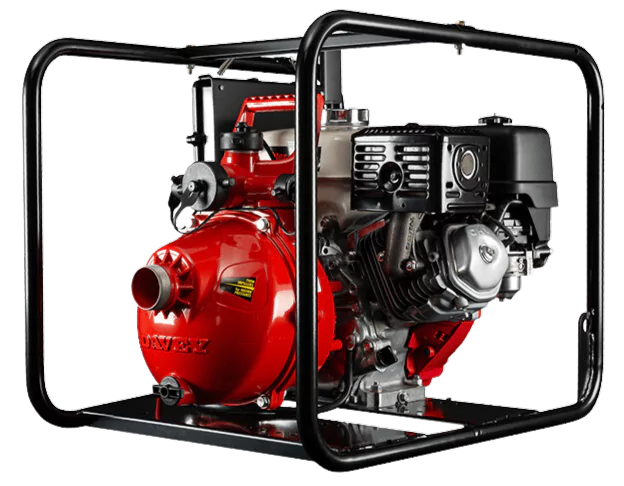

5190HRS2

REMOTE START

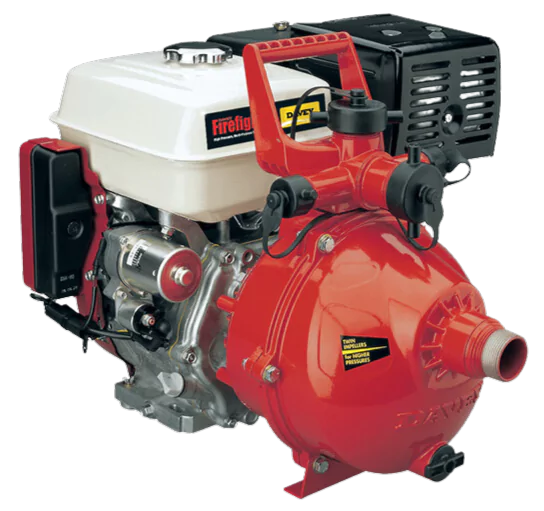

5290HRS2

REMOTE START

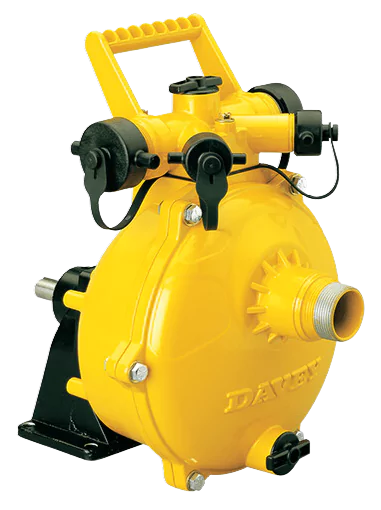

5150P

BARESHAFT

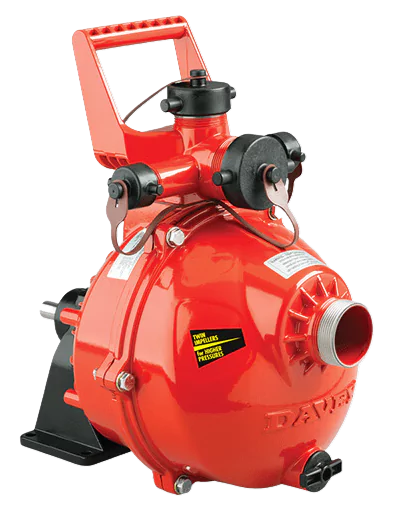

5250P

BARESHAFT

PRINCIPLE OF OPERATION

The working principle of the fire pump is the same as that of the centrifugal pump. It is driven by a motor. Before starting the pump, the pump body and the suction line are filled with liquid from the source. When the impeller rotates at high speed, the impeller drives the liquid between the blades to rotate. Due to the centrifugal force, the liquid is thrown from the centre of the impeller to the outer edge of the impeller and the kinetic energy is also increased. The pressurised water is then pumped out to the nozzle.

Petrol-Driven Firefighter Pumps Key Specifications


    MODELS
    SINGLE IMPELLER
    TWIN IMPELLER

    Max Capacity
    30000 lph
    24000 lph

    Max Total Head
    72 m
    106 m

    Max Suction Lift
    7 m
    7 m

    Max Casing Pressure
    10000 kPa
    1600 kPa

MODELS	SINGLE IMPELLER	TWIN IMPELLER
Max Capacity	30000 lph	24000 lph
Max Total Head	72 m	106 m
Max Suction Lift	7 m	7 m
Max Casing Pressure	10000 kPa	1600 kPa

Diesel-Engine Firefighter Pumps Key Specifications

    Max Capacity
    48000 lph

    Max Total Head
    92 m

    Max Suction Lift
    7 m

Max Capacity	48000 lph
Max Total Head	92 m
Max Suction Lift	7 m

Remote-Start Firefighter Pumps Key Specifications

    MODELS
    5190HRS2
    5290HRS2

    Max Capacity
    48000 lph
    25800 lph

    Max Total Head
    46 m
    90 m

    Max Suction Lift
    7 m
    7 m

    Max Casing Pressure
    1000 kPa
    1600 kPa

MODELS	5190HRS2	5290HRS2
Max Capacity	48000 lph	25800 lph
Max Total Head	46 m	90 m
Max Suction Lift	7 m	7 m
Max Casing Pressure	1000 kPa	1600 kPa

Bareshaft Firefighter Pumps Key Specifications

    MODELS
    5150P
    5250P

    Max Capacity
    33600 lph
    28200 lph

    Max Total Head
    76 m
    120 m

    Max Suction Lift
    8 m
    7 m

MODELS	5150P	5250P
Max Capacity	33600 lph	28200 lph
Max Total Head	76 m	120 m
Max Suction Lift	8 m	7 m
