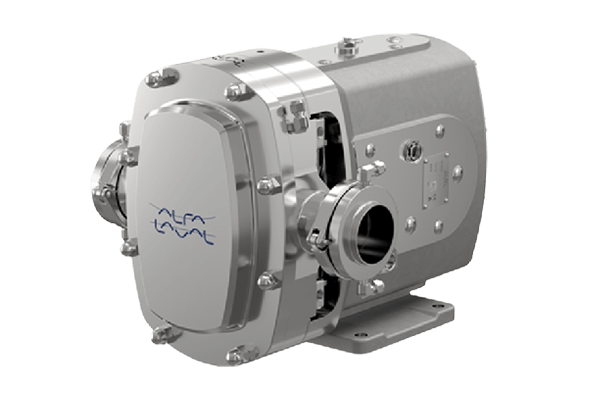

Alfa Laval's Circumferential Piston

Albany Pumps Logo
AIfa Laval’s range of circumferential piston pumps offers all the features that the food, home and personal care, and pharmaceutical industries ever need. They have an exceptional balance of high efficiency and superior hygienic performance. The CIP design of each pump enables operators to easily clean and maintain the pumps to minimize plant downtime. With these, Alfa aval piston pump users can enjoy better operation that leads to improved productivity and increased profitability.

KNOW MORE ABOUT ALFA LAVAL PISTON SERIES

alfa-lavals-circumferential-piston

Design Advantages

  • Meets global standards, including EHEDG and 3-A
  • Robust stainless steel construction and reliable operation
  • Service-friendly and affordable to maintain
  • High volumetric efficiency even for low-viscosity fluids
  • Advanced port and pump-head geometry provide low NPSHr
  • Modular seal design makes seal conversion easier

Available Options

We customise pumps according to your specific application. Get in touch with us today to get a complete list of your options.

  • DuraCirc® Uni-Fit optional retrofit port
  • Alfa Laval CM Connect for monitoring
  • Spare parts
  • Mounting

Key Specifications

MODELS DuraCirc DuraCirc Aseptic
MAX FLOW 150 m3/h 103 m3/h
MAX PRESSURE 4 MPa 2.5 MPa

Applications

  • Beverage processing
  • Dairy processing
  • Food processing
  • Home care
  • Personal care

OUR RANGE OF AVAILABLE PISTON PUMPS

Abaque Peristaltic Hose Pump HD100 model

DURACIRC

Abaque Peristaltic Hose Pump HD 10 or HD20 model

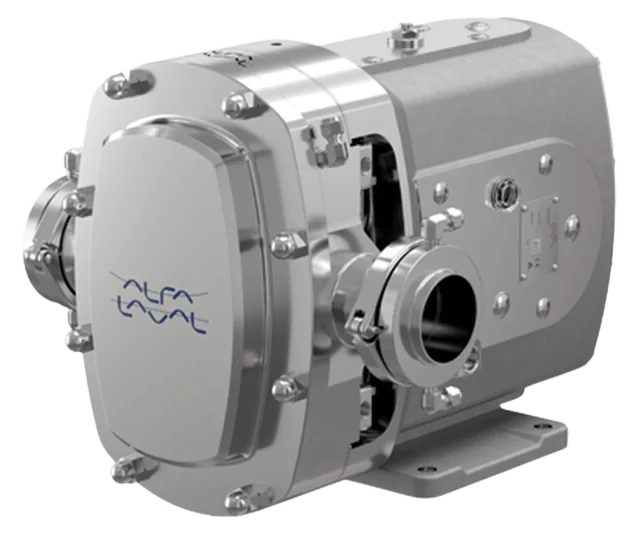

DURACIRC ASEPTIC

PRINCIPLE OF OPERATION

Piston pumps utilise a piston that moves in a reciprocating (back-and-forth) motion within a cylinder to create pressure and move fluid. The piston’s movement generates a pressure differential, causing fluid to flow into the cylinder during the suction stroke. The working fluid is forced to the discharge during the piston’s compression stroke. This process is repeated with each stroke, creating a continuous flow of fluid.
