Ebara has a selection of submersible pumps from grinder to effluent types. These submersible pumps are engineered to handle various fluids used in various applications. Each unit of the Ebara submersible pump has been designed to meet all needs related to the moving of wastewaters and clear waters and conditions where liquid with solid residues should be transported. The Ebara submersible pumps when linked to the range of accessories available can result in more reliable performance, higher efficiency, and more flexibility.

KNOW MORE ABOUT EBARA
CAST IRON SUBMERSIBLE SERIES

Abaque Peristaltic Pump HD25 model

Design Advantages

  • Three-way vulcanisation of power cable prevents entry of liquids
  • Thermoprotector or miniaturised thermal protector
  • Double mechanical seal in an oil chamber with anti-vortex system
  • Sealed bearings lubricated for life and resistant to high temperatures
  • Oil chamber protects pump from damage during dry running
  • Rigid cast iron construction for long life and reliability

Available Options

We customise pumps according to your specific application. Get in touch with us today to get a complete list of your options.

  • Collection tanks
  • Lifting stations
  • Descent slide kit
  • Adapters for JIS/DIN flanges
  • EBAMix
  • Guide hook
  • Spare parts

Key Specifications

  • Max flow: 1800 m3/h
  • Max head: 72 m
  • Maximum liquid temperature: 40°C
  • Max solid passage: 140mm

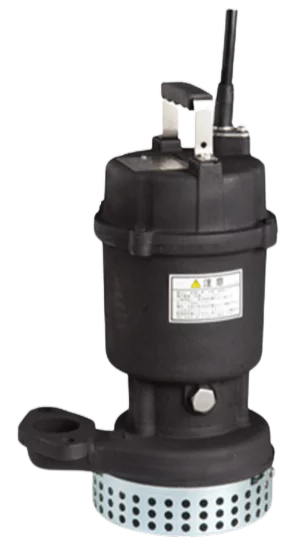

DS/DSF SEMI OPEN IMPELLER

  • Total head: 0.8 to 43 m
  • Flow rate: 5 to 84 m3/h
  • Maximum solid size passage: 5mm to 8mm
  • Maximum length of 50mm fibrous bodies

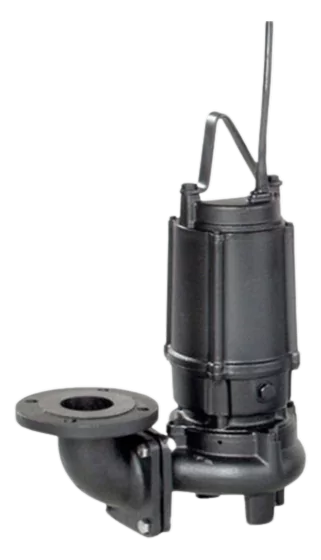

DVS SEMI-VORTEX IMPELLER

  • Total head from 5.3 to 23 m
  • Capacity from 6 to 60 m3/h
  • Maximum solid size passage: 21mm to 41mm
  • Maximum length of fibrous bodies: 100mm to 245mm

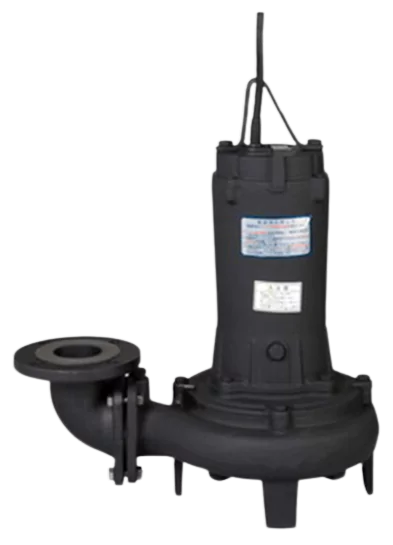

DL/DL W/C (WITH CUTTER)

  • Total head: up to 37.7 m
  • Capacity: up to 780 m3/h
  • Maximum solid size passage: Up to 90mm
  • Maximum length of fibrous bodies: Up to 600 mm

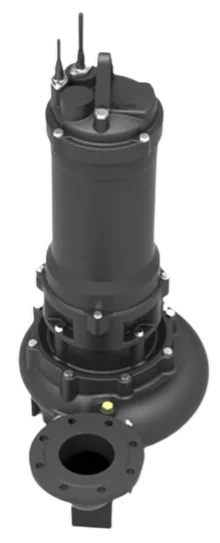

SINGLE CHANNEL IMPELLER (DML-DMLF) or VORTEX IMPELLER (DMLV-DMLVF)

  • Total head: up to 41.3 m
  • Capacity: up to 330 m3/h
  • Maximum solid size passage: Up to 100mm
  • Maximum length of fibrous bodies: up to 500 mm

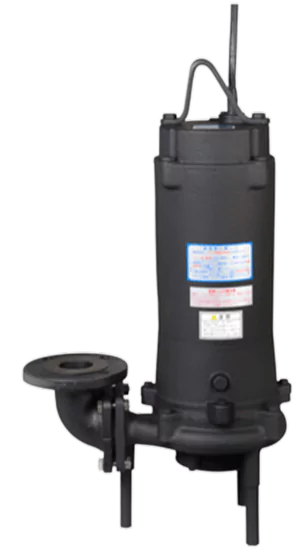

DRS WITH GRINDER - DRD WITH MULTI-CHANNEL IMPELLER

  • Total head: up to 72 m
  • Capacity: up to 1800 m3/h
  • Maximum passage of solids: up to 140 mm

Applications

  • Emptying of wells, garages and cellars
  • Emptying of tanks and cisterns
  • Aspiration from water recovery systems
  • Handling solid or filamentous substances in suspension
  • Civil and industrial wastewater evacuation
  • Drainage of sublevel areas
  • Water extraction from lower-level areas
  • Cesspools emptying
  • Residential and industrial sewage system emptying
  • Rainwater lifting
  • Irrigation
  • Gardening and small-scale agriculture

OUR RANGE OF AVAILABLE Ebara's Cast Iron Submersible

Abaque Peristaltic Hose Pump HD100 model

DS/DSF SEMI OPEN IMPELLER

Abaque Peristaltic Hose Pump HD 10 or HD20 model

DVS SEMI-VORTEX IMPELLER

Abaque Peristaltic Pump HD25 model

DL/DL W/C (WITH CUTTER)

Abaque Peristaltic Pump HD25 model

SINGLE CHANNEL IMPELLER (DML-DMLF)

Abaque Peristaltic Pump HD25 model

DRS WITH GRINDER - DRD WITH MULTI-CHANNEL IMPELLER

PRINCIPLE OF OPERATION

EBARA submersible pumps operate with a centrifugal pump working principle. A mechanical coupling at the bottom of the pump connects the pump shaft to the gas separator or protector. As the pump is primed, fluids enter through the intake screen and are lifted by the pump stages. Like any conventional centrifugal, the pump’s impeller rotates within the housing and reduces pressure at the inlet. This motion then drives fluid to the outside of the pump’s housing, which increases the pressure enough to send it out the discharge and onto the surface.
