Grundfos End Suction Close-Coupled Single Stage

Grundfos end-suction pumps are versatile and reliable solutions suitable for a variety of applications. These centrifugal pumps feature a direct connection between the motor and the pump, making them compact and easy to install. Each pump is designed with a single impeller, an axial suction port, and a radial discharge port, typically operating with a horizontal shaft.

Common applications for these pumps include water supply, industrial processes, and HVAC systems. Pump dimensions adhere to either EN 733 standards or ISO 2858.

Features & Benefits

Know more about the features & benefits of using Grundfos' End Suction Close-Coupled Single Stage.

Standard dimensions according to EN and ISO standards
Compact design
Flexible pump range
EN 12756 shaft seal
Cast iron, bronze or stainless steel impeller options
Cast iron or stainless steel pump housing options

Available Options

We customise pumps according to your specific application. Get in touch with us to know your options.

Materials options
Shaft options
Low energy models
Accessories and spare parts
Baseplate/mounting

Key Specifications

Here are the key specifications of Grundfos' End Suction Close-Coupled Single Stage.

Liquid temperature: -25 - 140 °C
Max. flow: 1400 m³/h
Max. head: 190 m
Max. pressure: 25 bar

Applications

Here is a list of industrial applications for which Grundfos' End Suction Close-Coupled Single Stage are commonly utilized.

District heating plants
Heating systems for blocks of flats
Air-conditioning systems
Cooling systems
Wash down systems
Other industrial systems
Pressure boosting
Irrigation

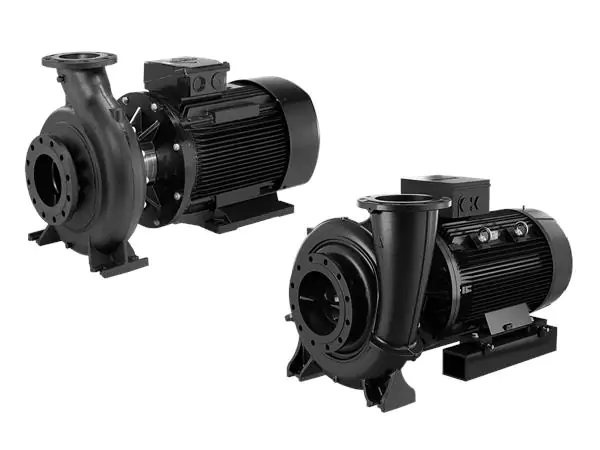

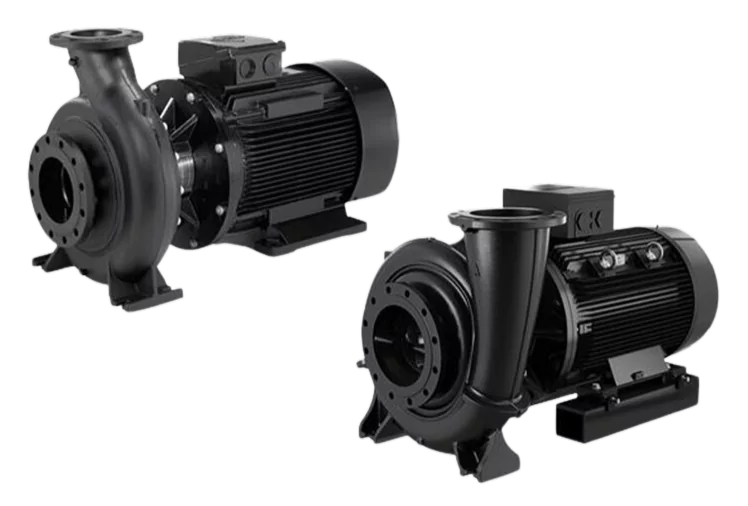

NB - Grundfos End Suction Close-Coupled Single Stage

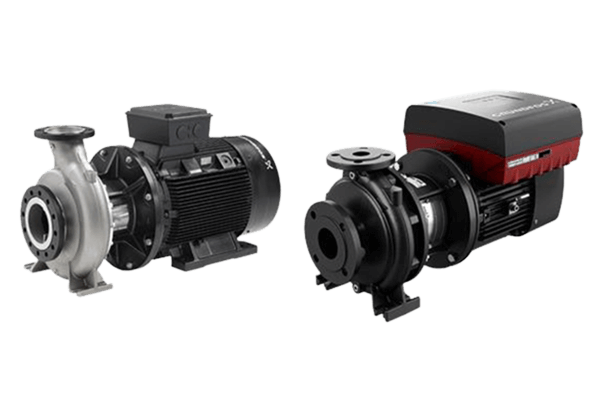

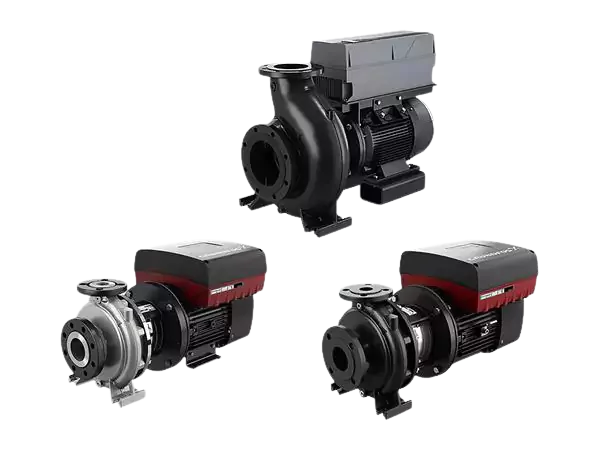

NBE - Grundfos End Suction Close-Coupled Single Stage

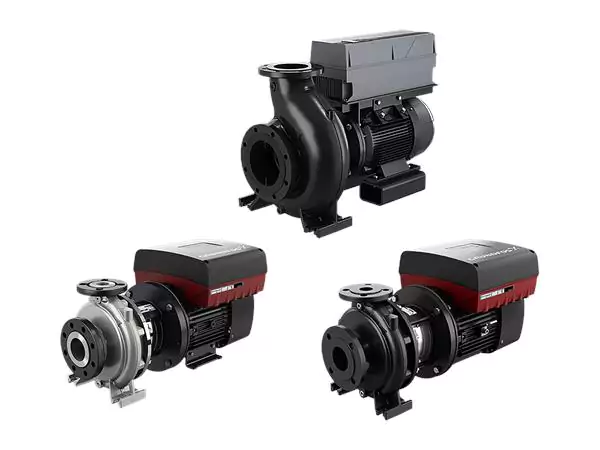

NBE

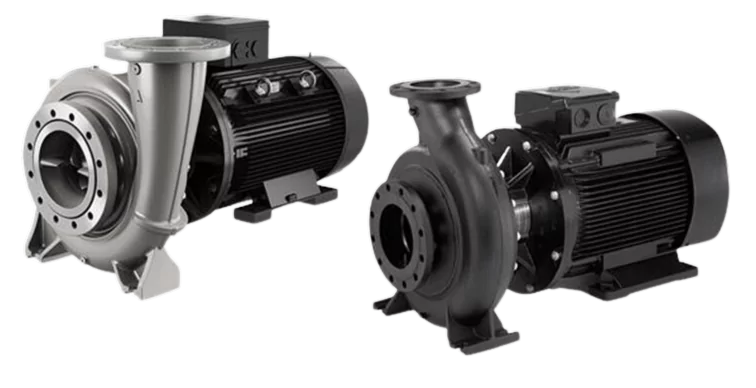

NBG - Grundfos End Suction Close-Coupled Single Stage

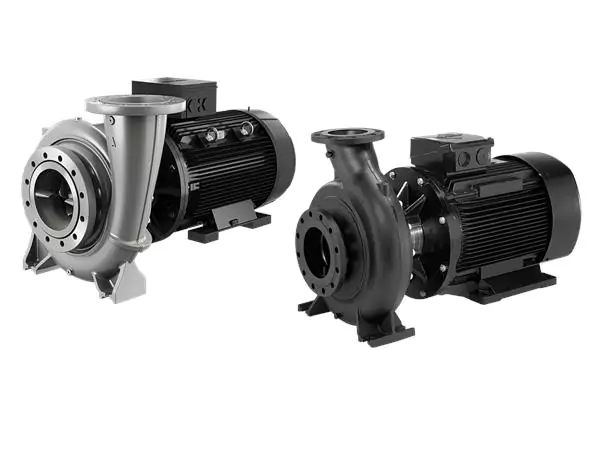

NBG

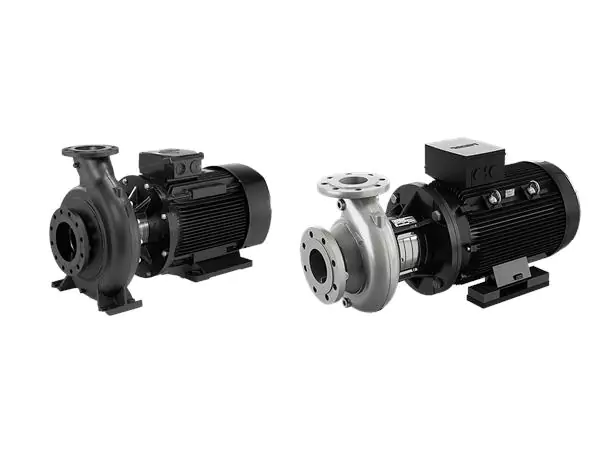

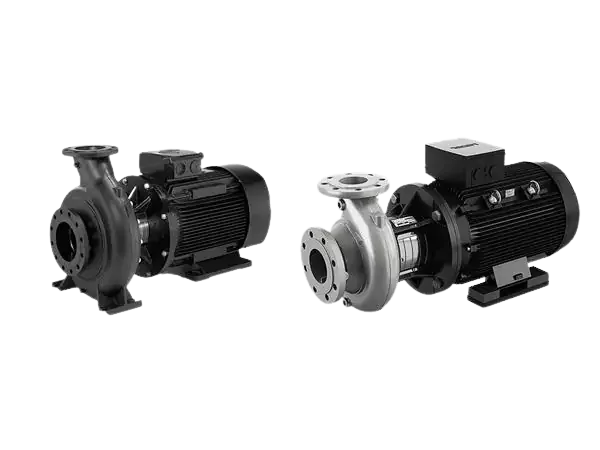

NBG SUPERVORTEX

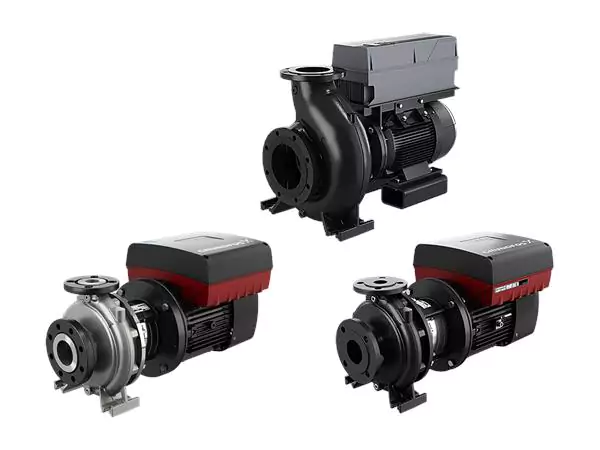

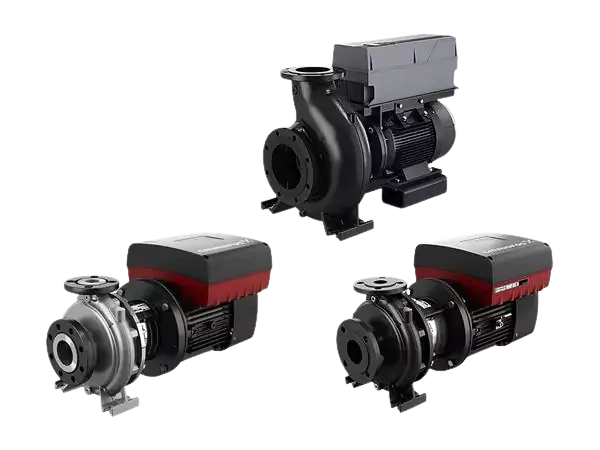

NBGE

NBGE SUPERVORTEX

OUR RANGE OF AVAILABLE END SUCTION CLOSE-COUPLED SINGLE STAGE PUMPS

A Grundfos end-suction close-coupled single-stage pump works by converting mechanical energy into hydraulic energy using centrifugal force. The impeller, which is driven by a motor, rotates and creates a low-pressure zone that draws liquid in from the suction side. As the liquid is forced outward, its velocity increases. This increase in velocity is then converted into pressure as the liquid flows into the volute casing.

Talk to Experts

Max. flow: 408 m³/hF
Max. head: 166 mF
Max. pressure: 25 bar

NBE

Max. flow: 214 m³/h
Max. head: 81 m
Max. pressure: 25 bar

NBG

Max. flow: 1400 m³/h
Max. head: 175 m
Max. pressure: 25 bar

NBG SUPERVORTEX

Max. flow: 231 m³/h
Max. head: 55 m
Max. pressure: 16 bar

NBGE

Max. flow: 550 m³/h
Max. head: 190 m
Max. pressure: 20 bar

NBGE SUPERVORTEX

Max. flow: 194 m³/h
Max. head: 34 m
Max. pressure: 16 bar
