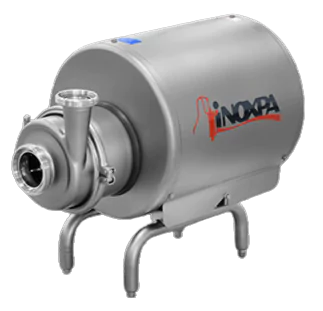

HYGINOX SE Centrifugal Pump

The Hyginox SE range of close-coupled centrifugal pumps from Inoxpa has a cost-effective and hygienic design. Made of cold-formed stainless-steel casing, these pumps are ideal for the food and beverage industry, mainly for transferring liquids. Additionally, these pumps are also used in the pharmaceutical and cosmetic industries.

Hyginox SE pumps' motors are fully compliant with the IEC standards and feature height-adjustable, hygienically designed legs.

Features & Benefits

Know more about the features & benefits of using HYGINOX SE Centrifugal Pump.

Cold-form stainless steel casing
Stainless steel, investment casting open impeller
Mechanical seal according to DIN 24960 L1K
AISI 304 motor shroud
Certified according to 3A sanitary standards
IEC B34 motors, IP 55, F-class insulation

Available Options

We customise pumps according to your specific application. Get in touch with us to know your options.

Mechanical seal material
Gaskets
Pump fitting/connections
Motors with additional protective features
Trolley and/or electric panel
Spare parts

Key Specifications

Here are the key specifications of HYGINOX SE Centrifugal Pump.

Nominal pressure: 10 bar
Maximum flow 145 m³/h
Maximum differential head: 90 m

Applications

Here is a list of industrial applications for which HYGINOX SE Centrifugal Pump are commonly utilized.

Dairy
Beverage
Pharmaceutical
Cosmetic

inoxpa-pumps-hyginox-se-centrifugal-pump transp

PRINCIPLE OF OPERATION

In a centrifugal pump, the fluid enters the casing and falls at the impeller’s eye. The fluid is whirled tangentially and radially outward by the impeller blades, gaining velocity and pressure. It then falls into the diffuser part of the casing. This is how the pump can push out the fluid to a high-level head.
