Sulzer Drainage Pump

Sulzer’s complete range of submersible dewatering pumps meets the most challenging applications in various industries. With over 50 years of technical expertise and real-world experience, these pumps are your best insurance against unexpected downtime.

Sulzer’s J and XJ submersible drainage pumps are portable and sturdy. They can move dirty water with small abrasives with ease. They are preferred for dewatering construction sites, mines, quarries, and tunnelling projects.

Download Brochure

Features & Benefits

Know more about the features & benefits of using Sulzer Drainage Pump.

Wear-resistant white cast iron impellers
Lightweight and slim design
Built-in contactor for easy and fail-proof start and restart

Different options for a Peristaltic hose pumps tubing

J4 TO J7

J12

J15

XJ 25

XJ 40

XJ 50

XJ 80

XJ 110

J 205

J 405

J 604

XJ 900

OUR RANGE OF AVAILABLE Sulzer Drainage Pump

Talk to Experts

Abaque Peristaltic Hose Pump HDX40 model

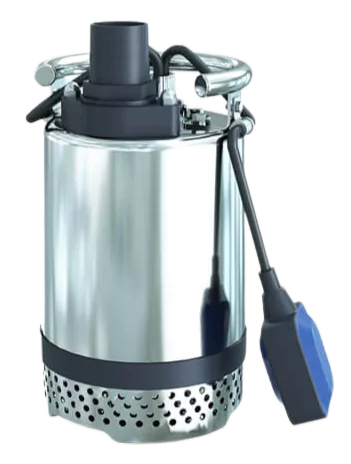

J4 TO J7

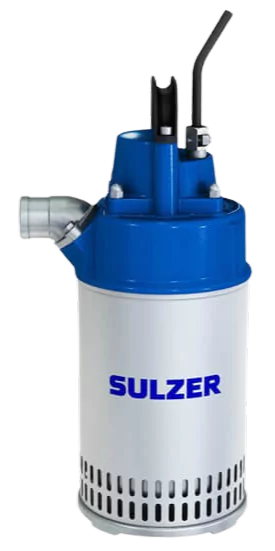

J12

J15

XJ 25

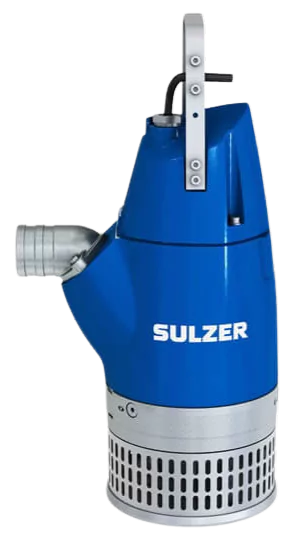

XJ 40

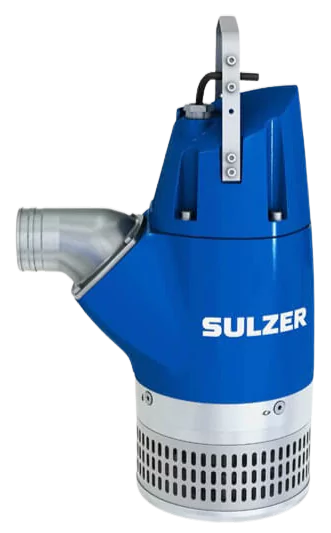

XJ 50

XJ 80

XJ 110

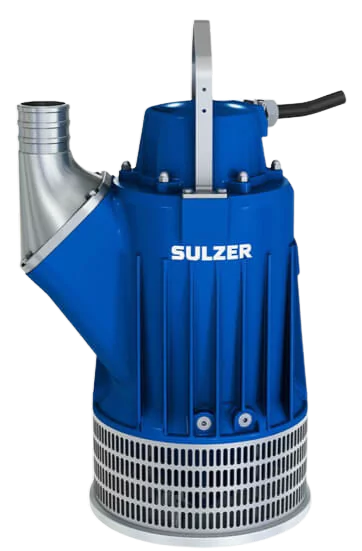

J 205

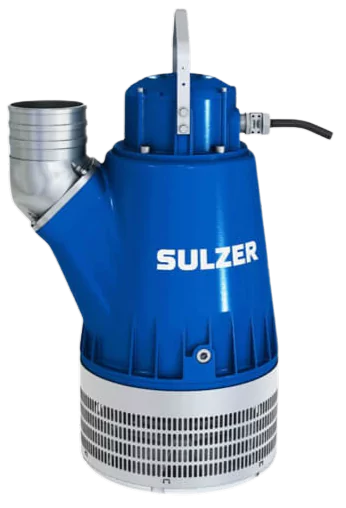

J 405

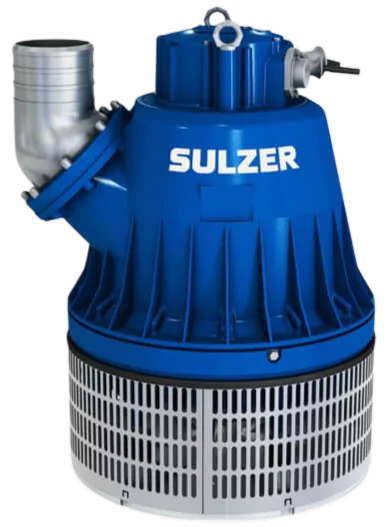

J 604

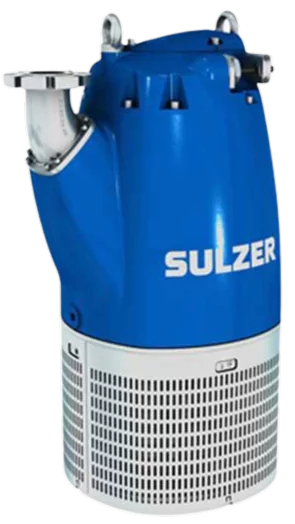

XJ 900

KEY BENEFITS OF THE AQUATRONIC UNIT

Correction of motor rotation if phases are improperly connected
Run mode (no panel needed)
Integrated start equipment (direct or soft start depending on pump model)
Motor protection against high temperature, high amperage and missing phase
Anti-clog function

If the optional level sensor is installed the pump will also have the following:

Precise level control
Protection against dry running
Energy save mode (energy is saved through stopping at dry run and starting by level sensor)

An illustration about Sulzer AquaTronic built-in pump control system

PRINCIPLE OF OPERATION

Sulzer dewatering pumps are submersible centrifugal in type and are used to remove water collected in construction sites, tunnels, and mines. They suck the dirty water – which is circulated in the casing by the impeller – and later discharged to a wellpoint system or open sump. Depending on the type of water, a dewatering pump may use strainers to remove abrasives from the groundwater before being processed. A dewatering sludge pump, on the other hand, is used for moving thick, viscous fluids.

Download Brochure

    Model
    Capacity (l/s)
    Pressure Head (m)
    Weight



    J 4 - J 7
    54
    52
    J4 - 15.3kg | J7 17.3 kg


    J 12
    9
    15
    D: 18 kg | W 19 kg


    J 15
    12
    19
    D: 19 kg | W 21 kg


    XJ 25
    19
    26
    39 kg


    XJ 40
    23
    34
    42 kg


    XJ 50
    35
    45
    59 kg


    XJ 80
    52
    76
    63 kg (ND/LD), 78 kg (SD)


    XJ 110
    54
    52
    81 kg


    J 205
    102
    72
    155 kg


    J 405
    160
    90
    270 kg


    J 604
    330
    58
    525 kg


    XJ 900
    120
    200
    1,200 kg





Model	Capacity (l/s)	Pressure Head (m)	Weight
J 4 - J 7	54	52	J4 - 15.3kg \| J7 17.3 kg
J 12	9	15	D: 18 kg \| W 19 kg
J 15	12	19	D: 19 kg \| W 21 kg
XJ 25	19	26	39 kg
XJ 40	23	34	42 kg
XJ 50	35	45	59 kg
XJ 80	52	76	63 kg (ND/LD), 78 kg (SD)
XJ 110	54	52	81 kg
J 205	102	72	155 kg
J 405	160	90	270 kg
J 604	330	58	525 kg
XJ 900	120	200	1,200 kg

Pump Performance Curve

1 — XJ 900
2 — J 205 – J 604
3 — J 4 – J 7, J 12 – J 15, JC 34, XJ 25 – XJ 110, XJC 50 – XJC 110

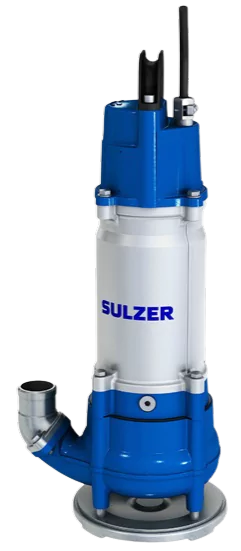

4 — JS 4 – JS 8, JS 12 – JS 15, XJS 25 – XJS 110
