Tabla

TABLA, like NOMAD, is a brand of air operated diaphragm pumps by JDA Global. The range serves as an economical choice for 0.5” to 3” sizes of AODD pumps. TABLA pumps are completely self-priming and are capable of handling viscous and abrasive products without difficulty or damaging. They are sturdy and can run dry without failing.

These AODD pumps are ideal for handling a variety of flows and pressures up to 100 psi. Using economical parts, TABLA pumps provide customers with high quality, cost-effective fluid handling and repair solutions.

Features & Benefits

Know more about the features & benefits of using Tabla Air Operated Diaphragm Pumps.

Low-cost, high-quality pump
Affordable after-market parts ready in stock
Gentle to shear sensitive products
Efficient handling of abrasives, viscous fluids, and solvents
Simple design with few parts, thus easy to maintain
Safe to use in hazardous/explosive environment

Available Options

We customise pumps according to your specific application. Get in touch with us to know your options.

Variety of sizes and materials
Bolted and Clamped options
Spare parts
Baseplate
Elastomer options

Applications

Here is a list of industrial applications for which Tabla Air Operated Diaphragm Pumps are commonly utilized

Automotive
Aviation
Ceramics
Chemical
Construction
Cosmetics
Electronics
Food and beverage
Furniture
Mining
Municipalities
Paints and Coatings

Pharmaceutical
Plating
Pulp/paper/packaging
Refineries
Road tanker
Shipbuilding
Smelters
foundries
dye casting
Textile and carpet
Water and sewage treatment
Utility

OUR RANGE OF AVAILABLE Tabla Air Operated Diaphragm Pumps

Designed for versatility, TABLA Air-operated Diaphragm pumps handle a wide range of flows and pressures up to 100 psi with ease, even in dry conditions. Peruse the TABLA range by JDA Global and secure a cost-effective solution for your fluid handling needs.

Talk to Experts

Abaque Peristaltic Hose Pump HDX40 model

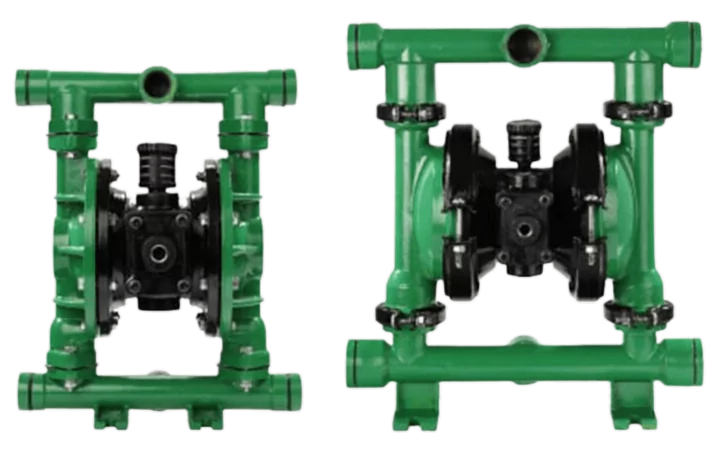

Aluminum

Polyprolene/PVDF

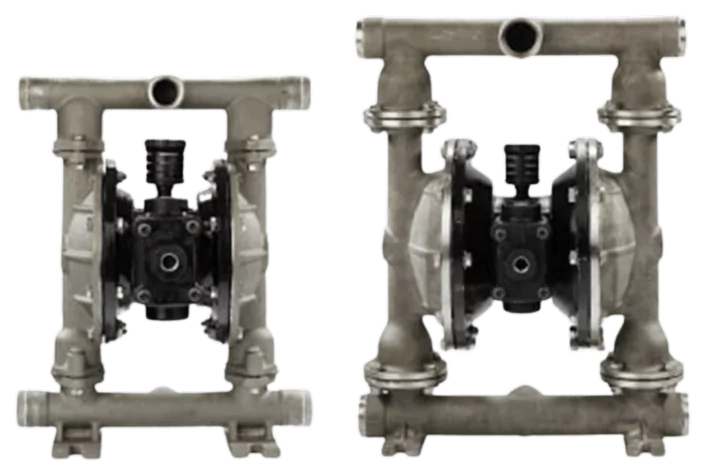

Stainless Steel

PRINCIPLE OF OPERATION

Air-operated diaphragm pumps move fluid by the alternate and repeated back-and-forth movement (strokes) of two diaphragms connected by a common shaft and are placed in opposite chambers. Both chambers have a common inlet and outlet ports.

As air enters the air chamber, the shaft is pushed either to the left or to the right, causing one diaphragm to be pushed while the other is pulled towards the center. The diaphragm that’s pushed by the shaft is the one at the discharge stroke, while the other is at its suction stroke. The fluid suction and discharge volumes are controlled by check valves that are placed at before the inlet and outlet ports of each chamber.

Tabla Catalogue

Tabla Chemical Resistance Guide

Tabla Troubleshooting Guide
