Gabbioneta Pumps® AHP AHP-D BB3 Type API 610 Centrifugal Pump

Trillium Flow Technologies

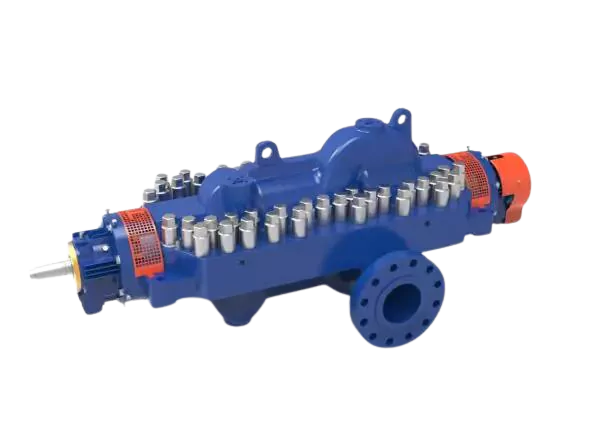

The Gabbioneta AHP AHP-DS range comprises heavy-duty multistage, horizontal, between bearings, centreline mounted, axially split pumps. These API 610-compliant centrifugal pumps have axial split casing for easy internal inspection and maintenance while reducing axial and radial loads. They are equipped with shrink-fitted impellers for higher operational speeds. The AHP AHP-DS BB3 pumps are available in a wide range of sizes and a number of stage combinations to fit any operating condition with best-in-class efficiency. Several options are available for this series to increase pump efficiency and streamline maintenance.

All-Pumps is an exclusive industrial distributor of Gabbioneta Pumps® in Australia. Get in touch with our team for complete options.

KNOW MORE ABOUT TRILLIUM GABBIONETA PUMPS® AHP AHP-D BB3 TYPE API 610 PUMPS

GABBIONETA PUMPS® AHP AHP-D BB3 TYPE API 610 CENTRIFUGAL PUMP
GABBIONETA AHP AHP DS BB3

Design Features

  • Fully API 610 compliant
  • Integral case connections to avoid non-destructive testing
  • Heavy-duty shaft to minimise rotor defection and maximise uptime
  • API 682 compliant seal chamber
  • Single or double suction impeller
  • Duty case suitable for 2x API nozzle loads
  • Bearing housing leverages common parts across all Trillium Flow Technologies between bearings pumps Balance line to ensure both seals remain at equal pressure
  • High-pressure centre bush and back-to-back arrangement to minimise axial thrust and improve rotor dynamics and MTBF
  • Axially split case to allow quick maintenance, inspection, and rotor changes

Available Options

  • All API material options: S-4, S-5, S-6, S-8, C-6, A-8, D-1, D-2
  • Composite wear parts for improved efficiency and rotor dynamics
  • Split wear parts for ease of maintenance
  • Specialist Options: High speed up to 6000 RPM, low SG density modifications
  • Spare parts
  • Custom mounting/baseplate

Key Specifications

  • Capacity: Up to 2,000 m3/h
  • Head: Up to 2,500 m
  • Operating temperature from -30 ºC to 200 ºC
  • Standard design pressure: 40 bar (special executions up to 210 bar)

Applications

  • General high-pressure refinery applications
  • Water injection
  • Pipeline applications
  • Boiler feed
