Plants Can Reduce The Waste Of Expensive Manufacturing Materials By Using Equipment That Offers Powerful Product-Recovery Capabilities
Manufacturers of food and beverages, pharmaceuticals or cosmetics use components and make products that are among the most expensive in the world.
Significant and immediate cost savings can be achieved by improving the volume of premium end-products and costly materials that are recovered from transfer lines. Given the value at hand, any potential for increased retention and recovery is worthy of exploration.
Product waste is always the enemy of profitability, and even more so when the products have a high cost. More than $120 billion of product goes to waste worldwide every year, according to the McKinsey Quarterly Food Waste Alliance. The Natural Resources Defense Council (NRDC) has also studied the issue and found that 40 per cent of food in the United States is lost during handling and production.

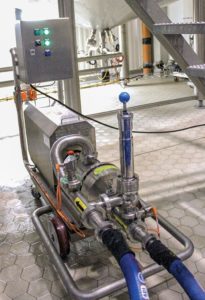

HYGIENIC MANUFACTURING OPERATIONS IN THE FOOD AND BEVERAGE, PHARMACEUTICAL AND COSMETIC INDUSTRIES OFFER MANY AREAS WHERE PRODUCT RECOVERY CAN BE OPTIMIZED WITH THE USE OF ECCENTRIC DISC PUMP TECHNOLOGY. (COURTESY OF PSG)
In hygienic manufacturing, some waste is inevitable, but there is a direct path to significant product recovery. By recovering raw ingredients or intermediate/finished products that remain in the suction or discharge fluid-transfer lines after production runs or between changeovers, a company can eliminate a substantial amount of waste. When transfer pumps lack the capability to adequately clear production lines, there is a snowball effect on costs. Some companies flush the lines and accept product losses, but there are often ancillary costs, including:
- increased water use for cleaning the lines
- additional cleaning and treatment chemicals to clean the lines
- chemicals to sanitize the lines
- energy to facilitate the cleaning process
- labour costs/hours to perform longer cleaning operations
- disposal costs of used water, chemicals and product
- water treatment costs and associated chemicals
Some plants use product recovery hardware, but a so-called “pigging” system, or other line-clearing solution, comes at a considerable cost premium and adds unnecessary complexity to the pumping operation. The pigging system might provide excellent product-recovery rates, but it also must be purchased, installed, operated, maintained and eventually replaced.
A More Capable Pump
There is a better option. With the right transfer pump installed, manufacturers can recover the bulk of their product from the line and achieve considerable savings with every production cycle. This capability to clear lines varies among pump types. The lobe, external circumferential piston (ECP), twin screw, centrifugal, hose and progressive cavity-style pumps widely used in hygienic manufacturing lack the capability to adequately strip suction or discharge lines.

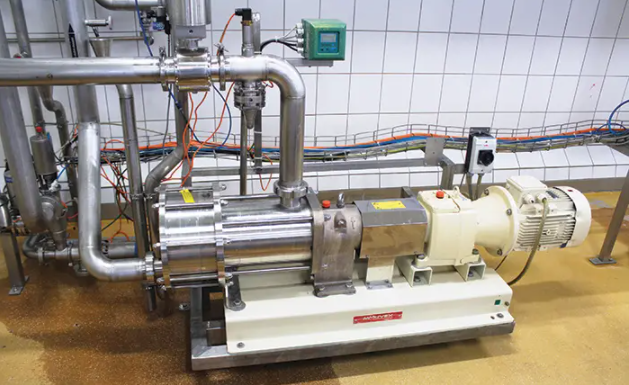

ECCENTRIC DISC PUMPS CAN BE USED IN HYGIENIC MANUFACTURING IN TWO WAYS, FIRST AS A NORMAL PROCESS PUMP, THEN AS A WAY TO INCREASE PRODUCT RECOVERY. THE RESULT IS LESS WASTE OF CRITICAL RAW MATERIALS AND EXPENSIVE FINISHED PRODUCTS, RESULTING IN A HEALTHIER BOTTOM LINE.
An eccentric disc pump, on the other hand, can clear a minimum of 70 per cent of product from lines on its own power—without the aid of any additional component systems that would increase capital expenditure, system complexity and maintenance requirements.
The cost-saving potential is enormous. One manufacturer of eccentric disc pumps for hygienic manufacturing estimates that some companies can realise annual savings in the hundreds of thousands of dollars or greater if eccentric disc pump technology is incorporated into a hygienic manufacturing system.
As the example suggests, the potential savings are entirely dependent on the application. The following are examples where the use of eccentric disc pumps has resulted in documented six-figure savings per pumped line:
- A high-end cosmetic manufacturer recovered enough silicone-based products to pay back the cost of the pump within days.
- Two global yogurt companies with very long transfer lines recorded increases of 70 per cent to 80 per cent in product-recovery rates and quickly deployed an additional pump.
- An oral-care company upgraded from centrifugal pumps and quickly achieved the product-recovery targets for its low-viscosity products.
- A pharmaceutical company saved on its process for filling oral medicines, which involves frequent product changeovers.
- A large baked goods company more effectively recovered the filling used in pastries and prevented the blockage of injection nozzles.
Design Advantage
Strong product recovery is possible with eccentric disc pumps because of their unique design. Each pump employs a disc that moves on an eccentric plane within a circular channel, creating the capability for non-pulsing, low-slip operation with high volumetric consistency. The operation of eccentric disc pumps allows flow rates to vary minimally despite changes in viscosity, temperature, system back pressure and even component wear.

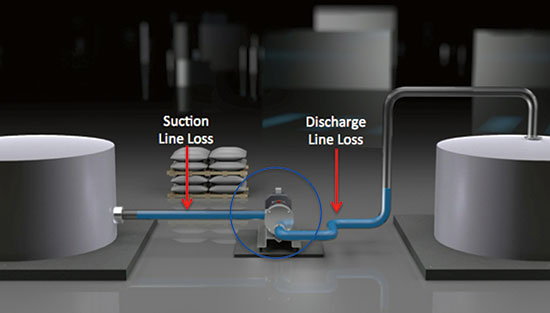

ECCENTRIC DISC PUMPS ARE SO EFFICIENT AND VERSATILE THAT THEY ARE ABLE TO PUMP AIR EVEN WHEN NO FLUID IS PRESENT, WHICH ENABLES THEM TO COMPLETELY AND SAFELY CLEAR BOTH SUCTION AND DISCHARGE LINES DURING HYGIENIC-PUMPING PROCESSES.
Eccentric disc pumps can operate with such high efficiency that they can pump air when no fluid is present, which creates a vacuum effect on the suction side and a compressor effect on the discharge side of the pump. Once the product runs out in the feed tank, the eccentric disc technology continues to pump air in a very constant, non-abrupt, non-pulsating manner, so that the surface tension on any remaining fluid is not broken. This produces a plug effect, which pushes out the product “plug” as a whole.
Because eccentric disc pumps transition to the purging process by using the air that is already in the feed tank, product purity is rarely an issue. In certain applications, the operator purifies the air or gas blanketing the product to protect purity. This method of product recovery is much safer and cleaner than pigging or a basic air/gas-blowing process. It also eliminates the risks and costs associated with sourcing air or gas compressors or high-pressure bottles.
The typical amount of product recovered with an eccentric disc pump is more than 95 per cent on the suction side of the pump and typically 60 to 80 per cent or more on the discharge side. There are additional benefits of using eccentric disc pumps in product-recovery applications, including:
- The pumps can recover product from tank bottoms as well as inlet and outlet lines.
- They can recover product from small lines where pigging is not possible.
- They can recover product through a line outfitted with ordinary valves, heat exchangers, magnetic traps, flow meters and other accessories.
- Product recovery is seamless, as no line interruptions will occur between normal production and the product-recovery phase.
- For the majority of the process, air mixing is not a concern, as most of the product recovered by an eccentric disc pump comes in the form of a product plug with no air mixed in. A simple flow switch can be used to shut down the pump before the air purge reaches the product’s destination.
Limitation Of Other Pump Types
Compared to eccentric disc pumps, twin screw, lobe and ECP pumps lack line-cleaning capabilities, and manufacturers often have to use them in conjunction with pigging systems that use a projectile to push out the residual product. While well-installed pigging systems deliver the highest recovery rates, they can only be used in lines that are built without the interruptions of ancillary components, such as heat exchangers, valves, filters and flow meters. Operators must also take great care to ensure that purified compressed gas or air is used to push the pig, which can prove a challenge for maintaining product purity.
Twin screw, lobe and ECP pumps also wear constantly, which increases their internal clearances over time, resulting in product slip that reduces flow capacity and volumetric efficiency as operating pressures and fluid viscosities change.
These pump types are also designed with two shafts that have to be sealed, which doubles the number of areas where leaks can occur. Twin screw, lobe and ECP pumps are also not dry self-priming and can run dry for only a short period of time unless they have flushed double-mechanical seals. These pumps will also experience diminished performance when handling low-viscosity materials.
The Direct Route To Savings
The use of eccentric disc pumps as a cost-saving measure is a breath of fresh air for managers and engineers at hygienic plants, who may have run into a cost-reduction wall. Many operators have pursued pump efficiency for cost savings, but there is very little room to improve motor efficiency with today’s designs.
ECCENTRIC DISC PUMPS
Installing a higher efficiency positive displacement pump might yield electricity cost savings of only $200.
Savings of $32,000 a year on product recovery, as suggested in the example system, does a lot more to move the needle. In the model cost scenarios discussed here—$200 for the pump energy savings and $32,000 for the product recovery savings—the savings is 160 times higher with product recovery. Put another way, the product-recovery savings accumulated in one year with this example will pay for 32 years of energy to operate the pump.
Example System
- Product per foot (2.5-inch line diameter): 0.23 gallons
- Weight per gallon: 8.3 pounds
- Discharge distance: 100 feet
- Total weight: 191 pounds
- Product recovered at 70% rate: 134 pounds
- Price per pound: $1.00
- Cost savings/day: $134
- Cost savings per week (5 days): $670
- Cost savings per month (4 weeks): $2,680
- Cost savings per year (12 months): $32,160
Conclusion
Lobe, ECP and twin screw pumps are popular, but their lack of line-clearing capabilities means optimized product recovery will never be realized.
