Tsurumi has the capacity to build over 1.4 million pumps per year. With Japanese quality, a huge range, an unbeatable value in dewatering, and sewage submersible pumps and waste water equipment; Tsurumi pumps are seen as global leaders!
TSURUMI ORIGINAL TECHNOLOGIES
- Anti-wicking Cable Entry – each conductor is stripped back and sealed by moulded epoxy. This offers maximum protection against water penetrating through the cable entry, extending motor and pump life.
- Oil Lifter – a Tsurumi patented part that protects the mechanical seal inside an oil bath, ensuring that the seal is fully lubricated at all times.
- Dual Mechanical Seals – Tsurumi’s double inside mechanical seal with silicon carbide faces provides longer operational life than any seal available. The seals sit inside an oil bath, constantly lubricating the seals to prevent failure during dry run conditions.
DEWATERING PUMPS

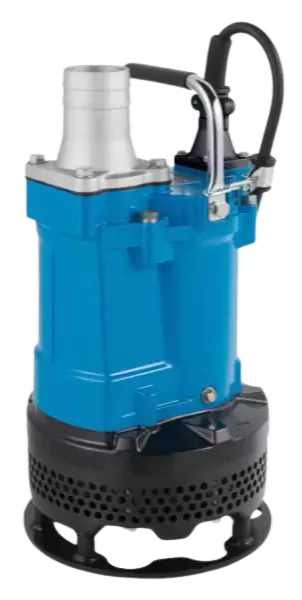

KTV
Dewatering Pumps
| Discharge Bore(mm) | 50 ･ 80 (100) |
|---|---|
| Motor Output(kW) | 0.75 – 5.5 |
The Tsurumi KTV/KTVE pumps can be coupled with heavy duty motors with an output range .75kW to 5.5kW to support the demanding dewatering activities in municipal infrastructures and construction sites. Meanwhile, the more rugged Tsurumi KTV 1000v model is the perfect pumping partner of mining sites.
KTVE
Dewatering Pumps (Automatic)
| Discharge Bore(mm) | 50 ･ 80 (100) |
|---|---|
| Motor Output(kW) | 0.75 – 5.5 |
The KTVE-series is a submersible three-phase automatic portable drainage pump. An innovative electrode type relay unit built into the pump automatically starts and stops the pump to eliminate dry-running. This mechanism greatly reduces power consumption and extends operating life. Though the pump is a three-phase unit, it is designed to weigh lighter for portability, yet it can be used for pumping liquid found in ordinary construction and foundation works. The top discharge, side flow design assures efficient motor cooling even when it operates with its motor exposed to air. The slim design allows the pump to be placed in a confined space.

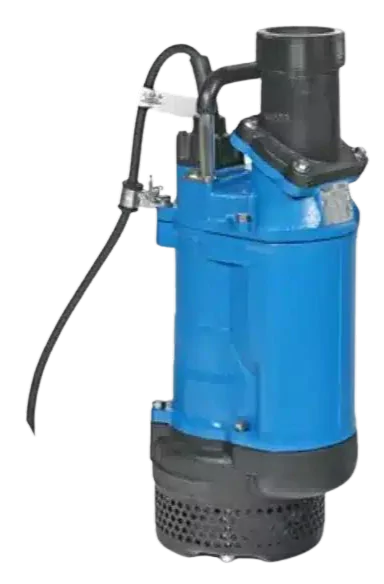

KTZ
Dewatering Pumps
| Discharge Bore(mm) | 50 – 150 |
|---|---|
| Motor Output(kW) | 1.5 – 15 |
The KTZ-series is a submersible three-phase cast iron high head heavy-duty drainage pump. The cast iron body with high-chromium cast iron impeller enables it to withstand demanding conditions found in construction, aggregate and mining applications. The top discharge, side flow design assures efficient motor cooling even when it operates with its motor exposed to air. The slim design allows the pump to be placed in a confined space. The discharge direction is selectable between vertical and inclined, which prevents folding or bending of the discharge hose. The pump with 7.5 to 15kW motor incorporates seal pressure relief ports that prevent the pumping pressure from applying to the shaft seal.
KTZE
Dewatering Pumps (Automatic)
| Discharge Bore(mm) | 50 – 100 |
|---|---|
| Motor Output(kW) | 1.5 – 3.7 |
The KTZE-series is a submersible three-phase automatic cast iron high head heavy-duty drainage pump. An innovative electrode type relay unit built into the pump automatically starts and stops the pump to eliminate dry-running. This mechanism greatly reduces power consumption and extends operating life. The cast iron body with high-chromium cast iron impeller enables it to withstand demanding conditions found in construction, aggregate and mining applications. The top discharge, side flow design assures efficient motor cooling even when it operates with its motor exposed to air. The slim design allows the pump to be placed in a confined space. The discharge direction is selectable between vertical and inclined, which prevents folding or bending of the discharge hose.

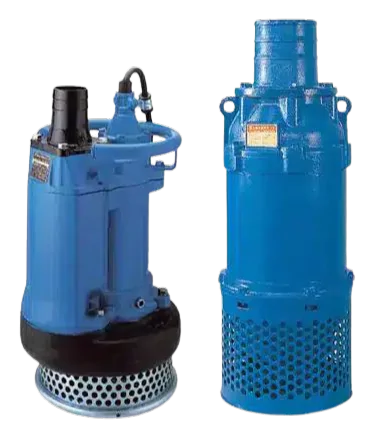

KRS
Dewatering Pumps
| Discharge Bore(mm) | 80 – 250 |
|---|---|
| Motor Output(kW) | 2.2 – 22 |
The KRS-series is a submersible three-phase cast iron high volume heavy-duty drainage pump driven by a 4-pole motor. The cast iron body, combined with the low speed motor, presents extra durability for use in the most demanding conditions. The top discharge, side flow design assures efficient motor cooling even when it operates with its motor exposed to air.*
* Model KRS1022 is a top discharge, flow-thru design. The top discharge, flow-thru design provides maximum motor cooling efficiency allowing continuous operation at low water levels and extended dry-run capability.
KRS (ENERGY-SAVING)
Dewatering Pumps
| Discharge Bore(mm) | 100 – 200 |
|---|---|
| Motor Output(kW) | 3 – 9 |
The KRS-series of energy-saving type is a submersible three-phase cast iron high volume heavy-duty drainage pump driven by a 4-pole motor. It consumes less energy than the standard KRS-series at lower head applications. The cast iron body, combined with the low speed motor, presents extra durability for use in the most demanding conditions. The top discharge, side flow design assures efficient motor cooling even when it operates with its motor exposed to air.
Leading Specialist Pump Supplier to Industry Since 1972
SPEAK TO SOMEONE FROM THE ALL PUMPS TEAM
PORTABLE DEWATERING PUMPS
LB
Portable Dewatering Pumps
| Discharge Bore(mm) | 50 (80) |
|---|---|
| Motor Output(kW) | 0.48 – 1.5 |
The LB-series is a submersible single-phase portable drainage pump. Though it is a single-phase unit, the pump has the durability equivalent to three-phase drainage pumps, since the wear parts are made of abrasion-resistant materials. The top discharge, flow-thru design provides maximum motor cooling efficiency allowing continuous operation at low water levels and extended dry-run capability. Every LB model is slim design enough to be accommodated in an 8-inch pipe. The discharge direction is selectable between vertical and inclined, which prevents folding or bending of the discharge hose.*
* Except for LB-1500
LB-A
Portable Dewatering Pumps (Automatic)
| Discharge Bore(mm) | 50 (80) |
|---|---|
| Motor Output(kW) | 0.48 ･ 0.75 |
The LB-A-series is a submersible single-phase automatic portable drainage pump. An innovative electrode type relay unit attached to the pump automatically starts and stops the pump to eliminate dry-running. This mechanism greatly reduces power consumption and extends operating life. Though the pump is a single-phase unit, it has the durability equivalent to three-phase drainage pumps, since the wear parts are made of abrasion-resistant materials. The top discharge, flow-thru design provides maximum motor cooling efficiency allowing continuous operation at low water levels and extended dry-run capability. The slim design allows the pump to be placed in a confined space. The discharge direction is selectable between vertical and inclined, which prevents folding or bending of the discharge hose.

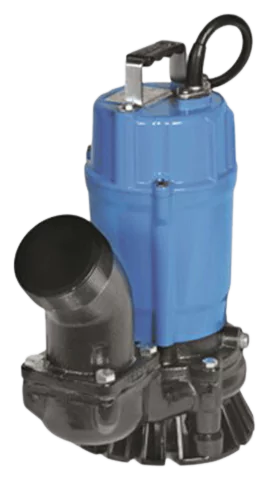

HS
Portable Dewatering Pumps
| Discharge Bore(mm) | 50 ･ 80 |
|---|---|
| Motor Output(kW) | 0.4 ･ 0.75 |
The HS-series is a submersible single-phase portable drainage pump. Though it is a single-phase unit, the pump has the durability equivalent to three-phase drainage pumps, since the wear parts are made of abrasion-resistant materials. The side discharge, spiral design allows smoother passage of the sucked solid matters. The shaft-mounted agitator prevents “Air Lock” that tends to take place on vortex or semi-vortex pumps.
HSZ
Portable Dewatering Pumps (Automatic)
| Discharge Bore(mm) | 50 ･ 80 |
|---|---|
| Motor Output(kW) | 0.4 ･ 0.75 |
The HSZ-series is a submersible single-phase automatic portable drainage pump. The automatic operation, controlled by a single float switch, reduces consumption and extends operating life. Though the pump is a single-phase unit, it has the durability equivalent to three-phase drainage pumps, since the wear parts are made of abrasion-resistant materials. The side discharge, spiral design allows smoother passage of the sucked solid matters. The shaft-mounted agitator prevents “Air Lock” that tends to take place on vortex or semi-vortex pumps.

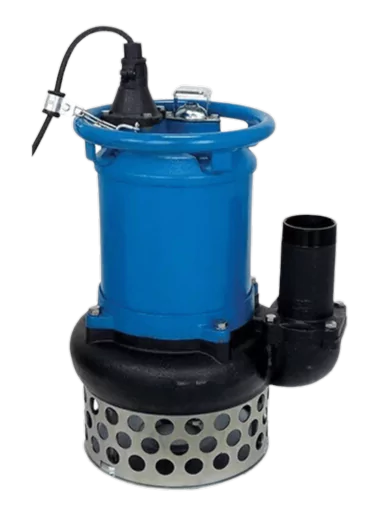

NK
Portable Dewatering Pumps
| Discharge Bore(mm) | 50 ･ 80 |
|---|---|
| Motor Output(kW) | 1.5 ･ 2.2 |
The NK-series is a submersible single-phase portable drainage pump having a larger output motor. Though it is a single-phase unit, the pump has the durability equivalent to three-phase drainage pumps, since the wear parts are made of abrasion-resistant materials. The top discharge, side flow design assures efficient motor cooling even when it operates with its motor exposed to air.The slim design allows the pump to be placed in a confined space.
Leading Specialist Pump Supplier to Industry Since 1972
SPEAK TO SOMEONE FROM THE ALL PUMPS TEAM
CORROSION-RESISTANT PUMPS

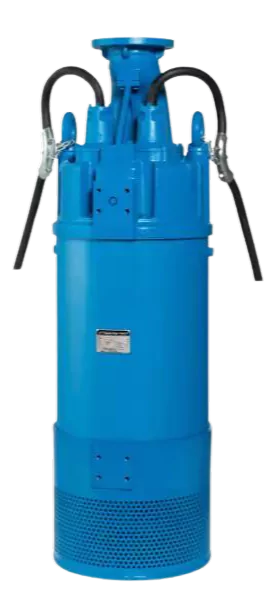

LH-14
High-Head Corrosion-Resistant Pumps
(Single Impeller)
| Discharge Bore(mm) | 100 – 200 |
|---|---|
| Motor Output(kW) | 22 – 110 |
The LH-14-series is a submersible stainless steel casting high head corrosion-resistant pump designed for handling aggressive and corrosive liquids. The all wetted parts are made of 316 stainless steel, enables it to withstand demanding conditions found in construction, aggregate and mining applications. Being the pump cylindrical and slim, it can be installed in a well casing for deep well dewatering. The center flange construction assures a stable installation even if it is fixed by the discharge pipe. The pump incorporates seal pressure relief ports that prevent the pumping pressure from applying to the shaft seal.
LH-W-14
High-Head Corrosion-Resistant Pumps
(Dual Impellers)
| Discharge Bore(mm) | 50 – 100 |
|---|---|
| Motor Output(kW) | 3 – 110 |
The LH-W-14-series is a submersible stainless steel casting high head corrosion-resistant pump having dual impellers designed for handling aggressive and corrosive liquids. The all wetted parts are made of 316 stainless steel, enables it to withstand demanding conditions found in construction, aggregate and mining applications. Being the pump cylindrical and slim, it can be installed in a well casing for deep well dewatering. The center flange construction assures a stable installation even if it is fixed by the discharge pipe. The pump incorporates seal pressure relief ports that prevent the pumping pressure from applying to the shaft seal.
SFQ (CONSTRUCTION)
Corrosion-Resistant Pumps
| Discharge Bore(mm) | 50 ･ 80 |
|---|---|
| Motor Output(kW) | 0.4 – 11 |
The SFQ-series is a submersible stainless steel casting high head corrosion-resistant pump designed for handling aggressive and corrosive liquids. The all wetted parts are made of 316 stainless steel, enables it to withstand demanding conditions found in construct ion, aggregate and mining applications. The pumps with 5.5kW and above motor incorporate seal pressure relief port that prevents the pumping pressure from applying to the shaft seal. Moreover, the 5.5-11kW models are selectable from the strainer stand type or the pump stand type.
