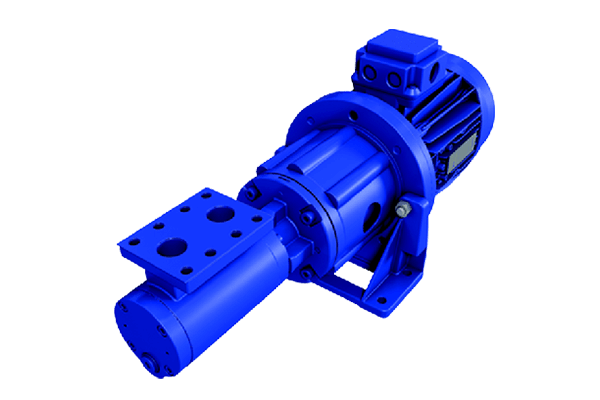

Alfa Laval's Three Screw

Alfa Laval’s 3S Series is one of the most comprehensive triple screw pumps ranges on the market, with 29 different sizes and several configurations available. It ensures a high degree of flexibility, allowing users to customize according to their system’s unique requirements.

The 3S pumps boast high reliability, increased uptime, long maintenance intervals, and extended service life. They are specially designed for moving lubricating, non-abrasive, and chemically inert liquids used in various industries.

Features & Benefits

Know more about the features & benefits of using Alfa Laval's Three Screw.

High-quality mechanical seal with special SiC graphite material
Lowest lifecycle cost and maintenance
Compact design and robust construction
High capacity at limited space
High pumping efficiency
Very good suction conditions (NPSH)

Available Options

We customise pumps according to your specific application. Get in touch with us to know your options.

ATEX models
Magnetic models
Port sizes
Seal options
Elastomers
Spare parts
Mounting

Applications

Power generation and marine applications, including:

Fuel-injection
Oil burners
Boosting
Hydraulics
Lubrication

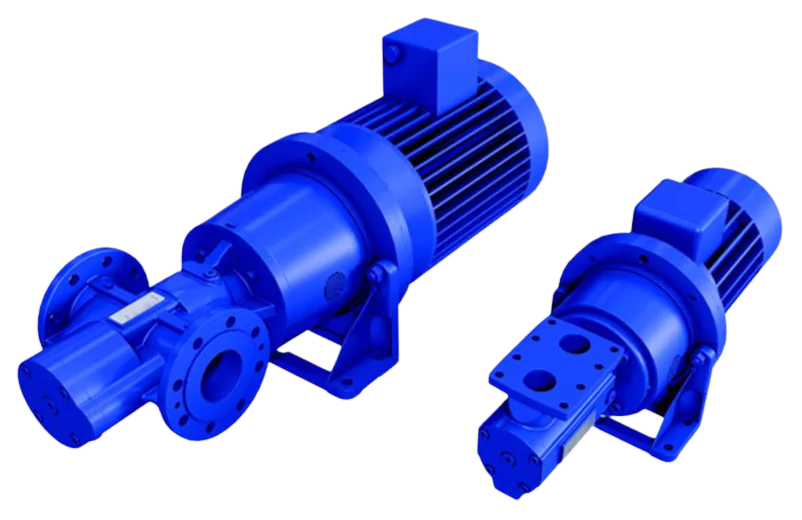

ALP

OUR RANGE OF AVAILABLE THREE SCREW PUMPS

Talk to Experts

ALP

PRINCIPLE OF OPERATION

The Alfa Laval three screw pumps consist of three rotating parts called “rotors” which turn in their precisely machined housing bores. The rotors are of double start screws, continuously meshing to form delivery Chambers, which move constantly from the suction to the pressure / discharge side.

    SERIES
    3S
    ALP

    MAX FLOW RANGE
    174 m3/h
    106 m3/h

    MAX INLET PRESSURE
    Mechanical sealed pump – 600 kPa (0.6 MPa)
Magnetic coupled pumps – 16 bar
    1.6 MPa

    MAX OUTLET PRESSURE
    1.6 MPa
    1.6 MPa

    TEMP RANGE
    Mechanical sealed pump –20°C to +180°C
Magnetic coupled pumps –20°C to +250°C
    Mechanical sealed pump –10°C to +155°C
Magnetic coupled pumps –10°C to +180°C

    SPEED
    2900 RPM @ 50hz

SERIES	3S	ALP
SERIES	3S	ALP
MAX FLOW RANGE	174 m3/h	106 m3/h
MAX INLET PRESSURE	Mechanical sealed pump – 600 kPa (0.6 MPa) Magnetic coupled pumps – 16 bar	1.6 MPa
MAX OUTLET PRESSURE	1.6 MPa	1.6 MPa
TEMP RANGE	Mechanical sealed pump –20°C to +180°C Magnetic coupled pumps –20°C to +250°C	Mechanical sealed pump –10°C to +155°C Magnetic coupled pumps –10°C to +180°C
SPEED	2900 RPM @ 50hz
