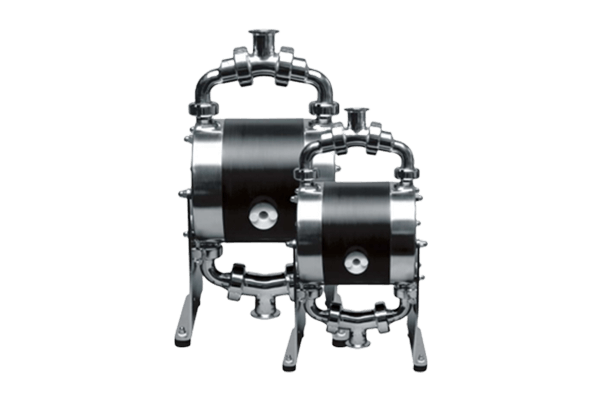

Almatec's Specialty AODD

Almatec’s line of specialty pumps is engineered to meet the specific and strict requirements of special applications, including the high pressure, food and beverage, biopharma, and semiconductor industries. Although with different offerings, the BIOCOR, FUTUR, AHD/AHS, and MM Series are made from carefully selected materials to deliver their special functions while achieving optimal performance and lifespan.

Almatec’s specialty pumps are economical to own, and they all incorporate an optimised diaphragm, compact construction, and simple design.

Features & Benefits

Know more about the features & benefits of using Almatec's Specialty AODD.

Self-priming, dry run capable, good suction head
Maintenance-free PERSWING P® air control system
AHD/AHS Series is designed to operate safely in high-pressure duties
MM Series uses food-grade wetted materials and a design for CIP and SIP
Futur’s housing parts are machined from solid blocks for longevity
Biocor’s superior containment design prevents leaks and contamination

Available Options

We customise pumps according to your specific application. Get in touch with us to know your options.

Pulsation dampener for most models
Draining system
Barrier chamber system
Diaphragm monitoring
Stroke counter
Flange connection
Transport carts
Spare parts

Key Specifications

Here are the key specifications of Almatec's Specialty AODD.

Capacity up to 20 m3/h
Air pressure up to 1.5 MPa
Suction lift up to 9 m

Applications

Here is a list of industrial applications for which Almatec's Specialty AODD are commonly utilized.

BIOCOR
Sterile applications in:

Pharmaceutical
Biotechnical
Food
CIP
SIP

FUTUR

Acids, caustics, high-purity chemicals
Wet Benches, loops
Supply, disposal, filtration, circulation

AHD/AHS
High-pressure applications across industries:

Polymerization
Catalytic reactions
Separations
Oil and gas recovery
Food processing
Biocatalysis

Transfer and filling of beverages, sauces, toppings etc.
Dosing of food and beverage ingredients
Processing of meat, pastry and dough, smoothies, fruit pulp, candies
Transfer and filling of cosmetics

BIOCOR

FUTUR

AHD/AHS

OUR RANGE OF AVAILABLE Almatec's Specialty AODD

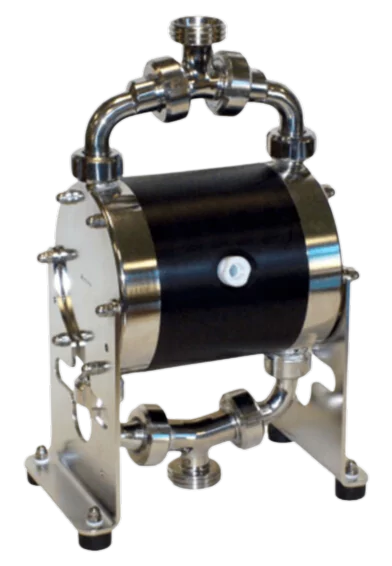

BIOCOR

FUTUR

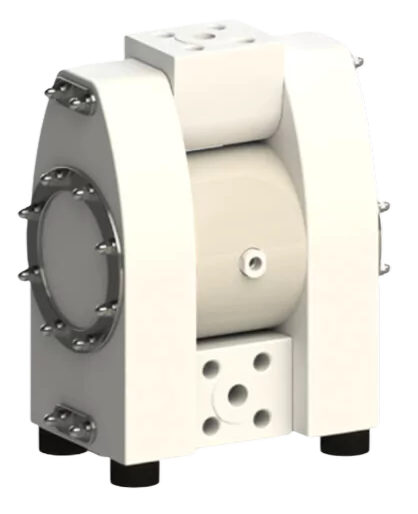

AHD/AHS

PRINCIPLE OF OPERATION

BIOCOR Series

FUTUR Series

AHD/AHS Series

Almatec pumps follow the conventional working principle of an AODD pump. They move fluid by the alternate and repeated back-and-forth movement (strokes) of two flexible membranes or diaphragms mounted on a common shaft. Although diaphragm pumps can be driven directly, with the shaft connected directly to a motor, AODD pumps use compressed air with a sophisticated distribution system directing the air alternately to two air chambers on the opposite sides of the diaphragms.

AODD pumps are capable of handling abrasive, highly viscous fluids, sludges, slurries, and shear-sensitive fluids. AODD pumps are robust, reliable, easy to maintain, and relatively low cost. They tend to be general workhorse devices and are typically used for transfer applications in a wide variety of industries.

    SERIES
    BIOCOR
    FUTUR
    AHD/AHS
    MM



    CAPACITY (m3/h)
    Up to 17
    Up to 6
    Up to 20
    Up to 20


    SUCTION LIFT (mWC)
    Up to 9
    Up to 9
    Up to 3.5
    Up to 9


    MAX DRIVING PRESSURE (kPa)
    Up to 700
(0.7 MPa)
    Up to 600
(0.6 MPa)
    Up to 1500
(1.5 MPa)
    Up to 700
(0.7 MPa)


    SPECIAL FEATURES
    Special fluid path and housing are without horizontal areas. Ball lifting magnet to make cleaning and maintenance easier
    Straight-through flow pattern technology
    AHD uses Almatec ring-tig






SERIES	BIOCOR	FUTUR	AHD/AHS	MM
CAPACITY (m3/h)	Up to 17	Up to 6	Up to 20	Up to 20
SUCTION LIFT (mWC)	Up to 9	Up to 9	Up to 3.5	Up to 9
MAX DRIVING PRESSURE (kPa)	Up to 700 (0.7 MPa)	Up to 600 (0.6 MPa)	Up to 1500 (1.5 MPa)	Up to 700 (0.7 MPa)
SPECIAL FEATURES	Special fluid path and housing are without horizontal areas. Ball lifting magnet to make cleaning and maintenance easier	Straight-through flow pattern technology	AHD uses Almatec ring-tig
