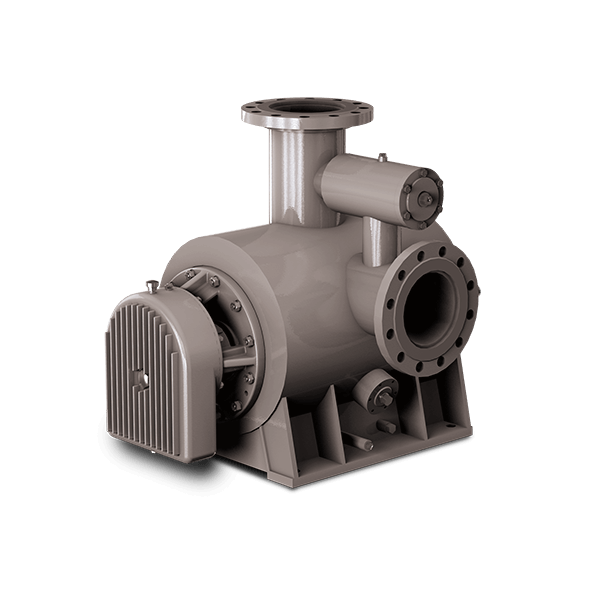

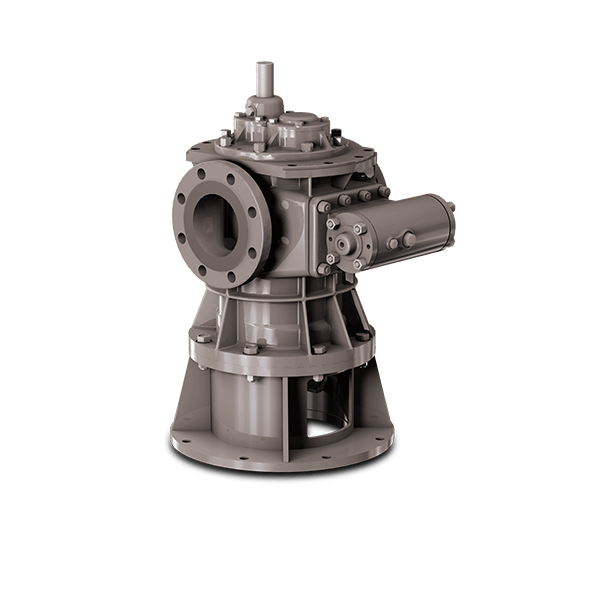

Blackmer S Series Twin Screw Pumps

Blackmer’s S Series Twin Screw pumps are for transferring fluids free of solids or with minimal abrasiveness. These self-priming, double-ended positive displacement pumps work hard regardless of the pressure, temperature, or viscosity of the liquid they handle.

Ideal for chemical processing, general industrial duties, and transport and marine markets, the S Series is also available in various configurations for special transfer applications.

Features & Benefits

Know more about the features & benefits of using Blackmer S Series Twin Screw Pumps.

Screw flanks with a unique profile and patented technology ensure high efficiency, pulse-free operation, continuation, and good NPSH values
Double-array ball bearing offsets against balanced axial power
Relief valve installation realises overload protection
Relief valve installation realises overload protection
Single mechanical seal lubricated by the pumped medium
Separate construction between shaft and screw allows for a choice of materials
Robust and reliable construction for longer life

Available Options

We customise pumps according to your specific application. Get in touch with us to know your options.

Spare parts
Mounting plates

Key Specifications

Here are the key specifications of Blackmer S Series Twin Screw Pumps.

Capacity: 0.5-2500 m³/h
Pressure: 16-60 bar
Viscosity: 0.5-200,000 mm²/s (cSt)

Applications

Here is a list of industrial applications for which Blackmer S Series Twin Screw Pumps are commonly utilized.

S SERIES TWIN SCREW PUMPS (WTG)

Petroleum
Marine
Petrochemical
Liquid terminals
Refineries
Food & beverage
Chemical
Lubricating oil
Storage & transportation

S SERIES TWIN SCREW PUMPS (NTG)

Asphalt
Chemicals
Heavy fuel oil
Liquid terminals
Petrochemical
Lubricating oil
Marine

S SERIES MULTI-PHASE TWIN SCREW PUMPS

Crude oil
Desert oilfield
Beach-sea oilfield
Offshore platform
Wellhead

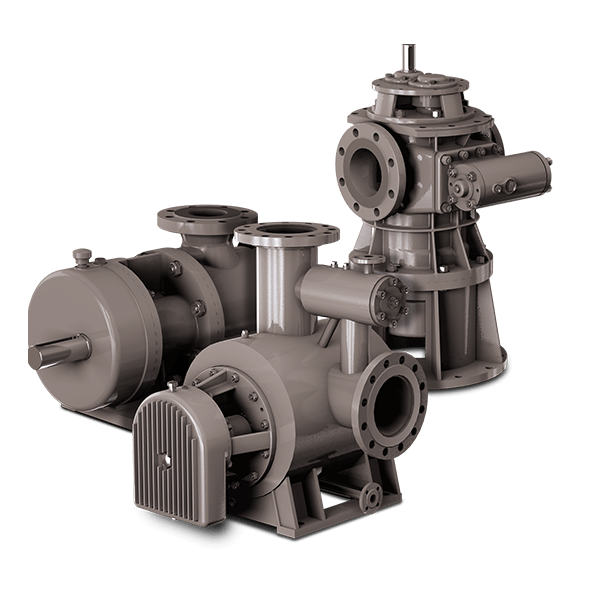

blackmer-s-series-twin-screw-pumps-transp

Technical Specifications

Principle of Operation

Blackmer Twin Screw Pumps are rotary, positive displacement pumps composed of two sets of opposed screws. These two counter-rotating screw rotors are engineered to rotate towards each other. This action traps the fluid between the screws of their rotors. As the screws turn, this trapped volume decreases, compressing the fluid and moving it towards the exhaust.

S Series Twin Screw Pumps with Timing Gear (WTG)

    SERIES
    CAPACITY (m3/h)
    DIFF PRESSURE (bar)
    VISCOSITY [mm2 /s (cSt)]



    2HM/2VM
    2-2500
    Up to 40
    0.5-200,000


    2HR/2VR
    2-2500
    Up to 40
    0.5-200,000


    2HE/2VE
    2-2500
    Up to 25
    20-3,000


    2HH
    10-1000
    Up to 60
    1-10,000


    2HC
    35-750
    Up to 16
    1-10,000


    2H
    1-40
    Up to 16
    1-100,000





SERIES	CAPACITY (m3/h)	DIFF PRESSURE (bar)	VISCOSITY [mm2 /s (cSt)]
2HM/2VM	2-2500	Up to 40	0.5-200,000
2HR/2VR	2-2500	Up to 40	0.5-200,000
2HE/2VE	2-2500	Up to 25	20-3,000
2HH	10-1000	Up to 60	1-10,000
2HC	35-750	Up to 16	1-10,000
2H	1-40	Up to 16	1-100,000

S Series Twin Screw Pumps with Non-Timing Gear (NTG)

    SERIES
    CAPACITY (m3/h)
    DIFF PRESSURE (bar)
    VISCOSITY [mm2 /s (cSt)]

    2LE/2KE
    1-480
    16
    ≤3,000

    2LA/2KA
    1-480
    16
    ≤200,000

SERIES	CAPACITY (m3/h)	DIFF PRESSURE (bar)	VISCOSITY [mm2 /s (cSt)]
2LE/2KE	1-480	16	≤3,000
2LA/2KA	1-480	16	≤200,000

S Series Multi-Phase Twin Screw Pumps

    SERIES
    CAPACITY
    DIFF PRESSURE

    2MPS…B
    30-1500
    Up to 30

    2MPS…H
    30-1500
    Up to 36

    2MP
    30-800
    Up to 60

SERIES	CAPACITY	DIFF PRESSURE
2MPS…B	30-1500	Up to 30
2MPS…H	30-1500	Up to 36
2MP	30-800	Up to 60
