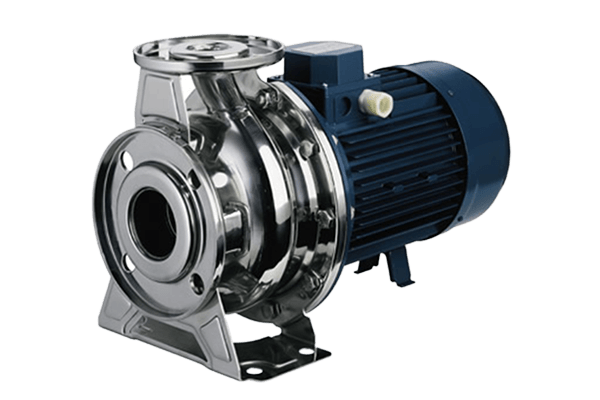

Ebara’s 3 Series comprises stainless steel pumps that feature a unique one–piece volute casing engineered using the latest computer–controlled plasma stamping system, ensuring total quality control during manufacture. Along with the smooth surfaces of the casing, the 3S pumps consistently deliver superior quality products and offer high efficiency. These Ebara pumps are standardized according to EN 733 and are realized in different structural shapes for greater versatility in most industrial applications.

KNOW MORE ABOUT
EBARA 3 SERIES

Design Advantages

  • Unique one-piece volute casing
  • All wetted components are made of 304 or 316L Stainless Steel
  • High-efficiency impeller design - giving efficiencies up to 80%
  • Robust hydraulic construction
  • Versatile and able to handle a wide range of fluid
  • Back pull-out design allows easy and quick maintenance

Available Options

We customise pumps according to your specific application. Get in touch with us today to get a complete list of your options.

  • High-temperature versions with Viton elastomers
  • Hard face mechanical seal in SiC/SiC/Viton
  • Motor options
  • Spare parts
  • Baseplate

Key Specifications

  • Capacity up to 240 m3/h
  • Head up to 90 m
  • Maximum working pressure: 10 bar
  • Temperature of the liquid: from -10°C to 110°C

3M MONOBLOC 2 POLES

  • Flow rates: Up to 72 m3/h
  • Head: 7 to 70 m
  • Liquid temp: -10 oC to +90 oC
  • Max. working pressure: 10 Bar

3M4 MONOBLOC 4 POLES

  • Flow rates: Up to 36 m3/h
  • Head: 3 to 18 m
  • Liquid temp: -10 C to +90 C
  • Max. working pressure: 10 Bar

3LS Stub Shaft Pumps, 2 Pole

  • Flow Rates: Up to 240 m3/h
  • Liquid temp: -10 oC to +110 oC
  • Max. working pressure: 10 Bar

3LS4 Stub Shaft Pumps, 4 Pole

  • Flow Rates: Up to 72 m3/h
  • Head: 3 to 18 m
  • Liquid temp: -10 oC to +110 oC
  • Max. working pressure: 10 Bar

Applications

  • washing systems
  • ecological and food systems
  • water treatment systems
  • pumping of fluids reasonably aggressive
  • conditioning systems
  • heating systems
  • pressure increase in industrial systems
  • systems for air treatment/humidification

OUR RANGE OF AVAILABLE Ebara's 3 Series

Abaque Peristaltic Hose Pump HD100 model

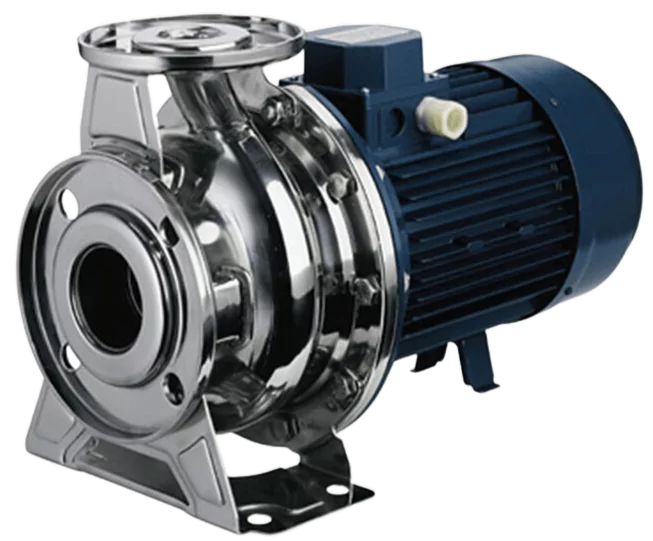

3M MONOBLOC 2 POLES

Abaque Peristaltic Hose Pump HD 10 or HD20 model

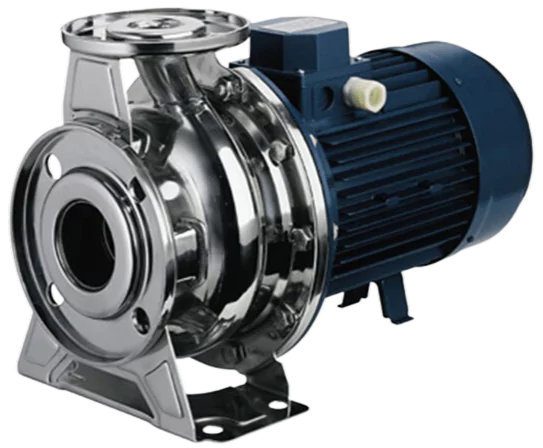

3M4 MONOBLOC 4 POLES

Abaque Peristaltic Pump HD25 model

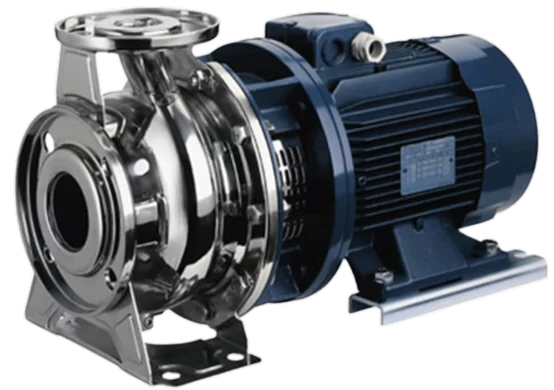

3LS Stub Shaft Pumps, 2 Pole

Abaque Peristaltic Pump HD25 model

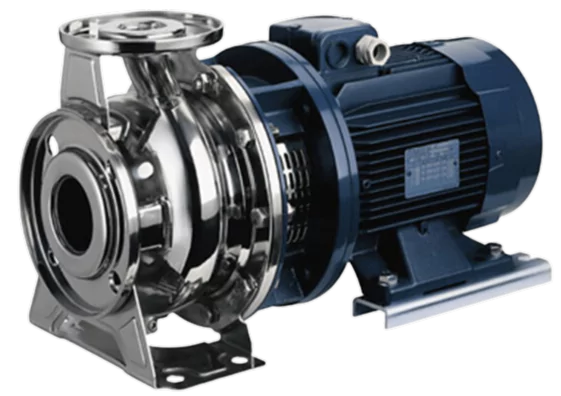

3LS4 Stub Shaft Pumps, 4 Pole

PRINCIPLE OF OPERATION

The Ebara centrifugal pumps follow the standard centrifugal principle. Two main parts are responsible for the conversion of energy: the impeller and the casing. The impeller rotates the fluid while the casing is the airtight passage that surrounds the impeller. To work, the fluid enters into the casing, falls on the impeller blades at the eye of the impeller, and is whirled tangentially and radially outward until it leaves the impeller into the diffuser part of the casing. The fluid gains both velocity and pressure while it passes through the impeller which is mechanized by the motor. This is how the pump can push out the fluid to a high-level head.
