Ebara’s Stainless Steel Submersible

Ebara’s Stainless Steel Submersible

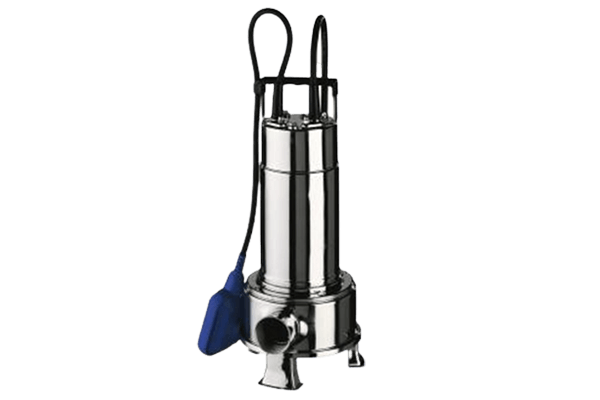

Ebara’s stainless steel submersible pump range is among the most preferred equipment in various industrial facilities today. The technical solutions adopted and the matching accessories made by Ebara ensure this range of high performance and a variety of solutions that adapt to any need. Made of stainless steel AISI 304, these Ebara pumps can also guarantee maximum reliability and resistance.

industrial

Know more about EBARA
STAINLESS STEEL SUBMERSIBLE Series

Design Advantages
  • External casing entirely in stainless steel for rigidity
  • Mechanical seal and lip ring in an oil chamber
  • Stainless steel filter allows solid passage with size up to 20mm
  • Ceramic-coated stainless steel shaft casing for higher wear resistance
  • Oil chamber increases seal life and lengthens maintenance intervals
  • Open impeller with small blades and back cover protects sealing device
Available Options

We customise pumps according to your specific application. Get in touch with us today to get a complete list of your options.



  • Magnetic switch/Float switch
  • Descent kit
  • Hose clamp
  • Spare parts
Key Specifications
  • Maximum capacity: 54 m3/h
  • Maximum head: 20m
  • Maximum solid passage: 50 mm

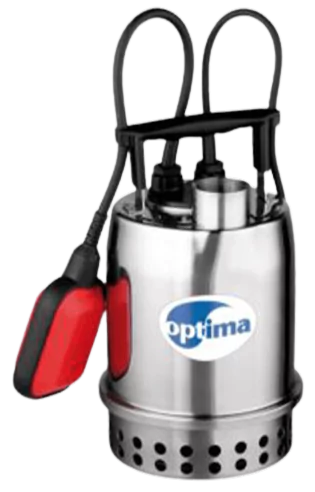

OPTIMA AISI 304 PUMPS

  • Total head from 1.5 to 7.6 m
  • Capacity from 1.2 to 9 m3/h
  • Maximum immersion 5 m
  • Maximum liquid temperature 50°C
  • Maximum solid size passage 10 mm

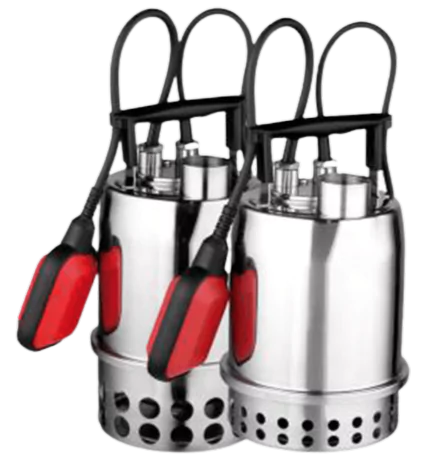

BEST ONE – ONE VOX AISI 304 PUMPS

  • Total head: up to 8.3 m
  • Capacity from 1.2 to 10.2 m3/h
  • Maximum immersion 5 m
  • Maximum liquid temperature 50°C
  • Maximum solid size passage: up to 20mm

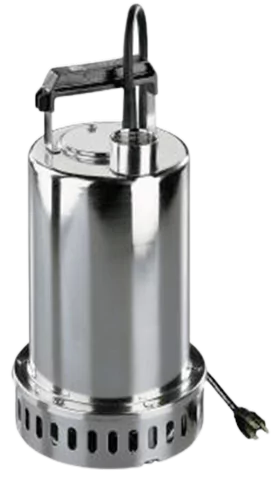

BEST 2-5 AISI 304 PUMPS

  • Total head from 2.9 to 18.4 m
  • Capacity from 1.2 to 21.6 m3/h
  • Maximum immersion 7 m
  • Maximum liquid temperature 35°C
  • Maximum solid size passage 10 mm

RIGHT AISI 304 PUMPS

  • Total head from 2 to 9.5 m
  • Capacity from 2.4 to 18 m3/h
  • Maximum immersion 7 m
  • Maximum liquid temperature 50°C
  • Maximum solid size passage 35 mm

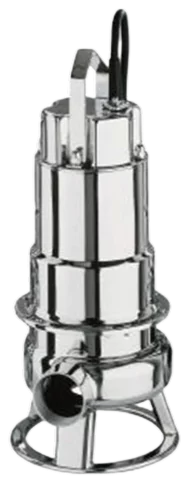

DW – DW VOX AISI 304 PUMPS

  • Total head: up to 20m
  • Capacity: up to 54 m3/h
  • Maximum immersion 7 m
  • Maximum liquid temperature 40°C
  • Maximum solid size passage 50 mm
Applications
  • Emptying of wells, garages and cellars
  • Emptying of tanks and cisterns
  • Aspiration from water recovery systems
  • Handling solid or filamentous substances in suspension
  • Civil and industrial wastewater evacuation
  • Drainage of sublevel areas
  • Water extraction from lower-level areas
  • Cesspools emptying
  • Residential and industrial sewage system emptying
  • Rainwater lifting
  • Irrigation
  • Gardening and small-scale agriculture
ebara stainless
INDUSTRIAL

Our range of available
STAINLESS STEEL SUBMERSIBLE pumps

OPTIMA AISI 304 PUMPS

BEST ONE – ONE VOX AISI 304 PUMPS

BEST 2-5 AISI 304 PUMPS

RIGHT AISI 304 PUMPS

DW – DW VOX AISI 304 PUMPS

PUMP

Principle of Operation

EBARA submersible pumps operate with a centrifugal pump working principle. A mechanical coupling at the bottom of the pump connects the pump shaft to the gas separator or protector. As the pump is primed, fluids enter through the intake screen and are lifted by the pump stages. Like any conventional centrifugal, the pump’s impeller rotates within the housing and reduces pressure at the inlet. This motion then drives fluid to the outside of the pump’s housing, which increases the pressure enough to send it out the discharge and onto the surface.
