Flextool's FDU Series of Drive Units

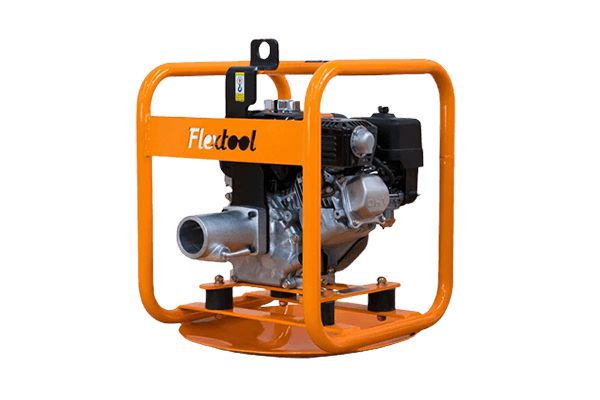

The Flextool Drive Units are one of the sturdiest, most powerful, and most reliable drive units you’ll find in the market. Fitted with the standard, quick-action, 3-tooth coupling, they can be easily connected to a wide range of flexible shaft submersible pumps and concrete vibrators.

They are available with petrol or diesel engines where the petrol models are powered by a Honda commercial GX 160 engine. A more powerful Honda GX 270 model is also available. The diesel alternatives, on the other hand, are powered by a Yanmar diesel engine.

Features & Benefits

Know more about the features & benefits of using Flextool's FDU Series of Drive Units.

Honda four-stroke motor for quick start and low emission
Petrol models have oil level sensors to protect from low oil problems
Diesel drive units in recoil or key start for easy operation
Lifting hook for easy and safe onsite handling
Durable heavy-duty motor protection frame
Rugged rubber mounts for vibration isolation (except Standard FDU-P1 model)

Key Specifications

Here are the key specifications of Flextool's FDU Series of Drive Units.

Max rated power from 2.98 to 6.7 kW
Engine speed up to 3000 RPM

Applications

Here is a list of industrial applications for which Flextool's FDU Series of Drive Units are commonly utilized.

Petrol units are ideal for construction, hire industry, and manufacturing industry
Diesel units are ideal for hazardous areas including mining, tunnels, and refineries

FDU-P1

FDU-P2

FDU-P3

FDU-D2

FDU-DE2

OUR RANGE OF AVAILABLE FTI's Vertical Mag Drive

Talk to Experts

FDU-P1

(Standard)

FDU-P2

(Super)

FDU-P3

(Heavy duty)

FDU-D2

(Diesel)

FDU-DE2

(Diesel Electric Start)


    MODELS

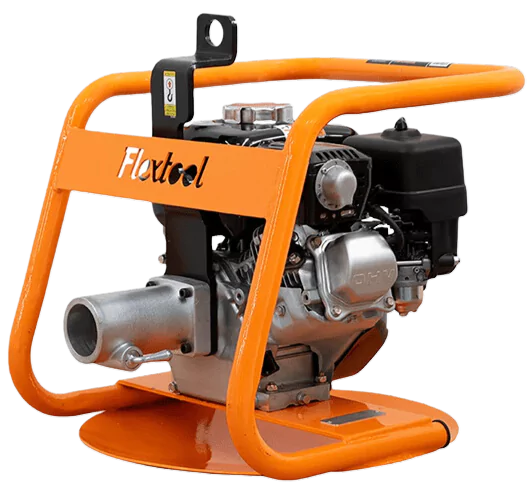

    FDU-P1 (Standard)

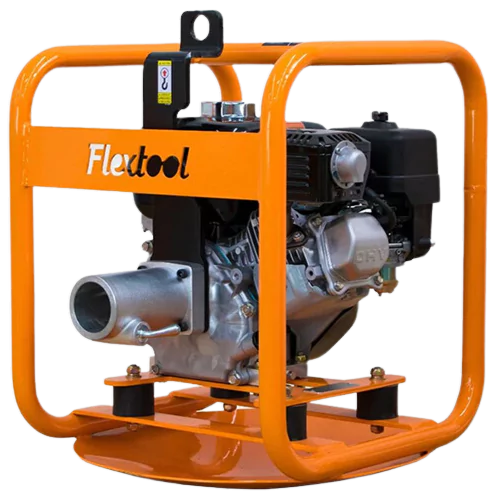

    FDU-P2 (Super)
    FDU-P3 (Heavy Duty)
    FDU-D2 (Diesel)

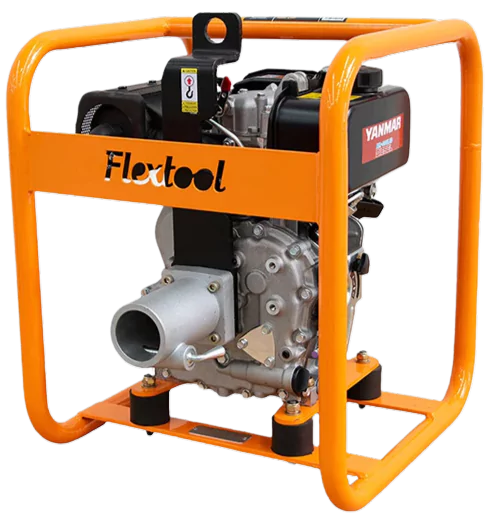

    FDU-DE2 (Diesel Electric Start)

    ENGINE SPEED (rpm)
    3000
    3000
    3000
    3000
    3000

    ENGINE
    Honda
    Honda
    Honda
    Yanmar
    Yanmar – Elec

    ENGINE MODEL
    GX160
    GX160
    GX270
    L48
    L48

    MAX RATED POWER
    4.1 kW
    4.1 kW
    6.71 kW
    3.58 kW
    3.58 kW

MODELS	FDU-P1 (Standard)	FDU-P2 (Super)	FDU-P3 (Heavy Duty)	FDU-D2 (Diesel)	FDU-DE2 (Diesel Electric Start)
ENGINE SPEED (rpm)	3000	3000	3000	3000	3000
ENGINE	Honda	Honda	Honda	Yanmar	Yanmar – Elec
ENGINE MODEL	GX160	GX160	GX270	L48	L48
MAX RATED POWER	4.1 kW	4.1 kW	6.71 kW	3.58 kW	3.58 kW
