FTI's Sealless Mag Drive

Blacoh pulsation dampener Logo

Finish Thompson Inc’s mag-drive and sealless pumps are recognized globally as some of the most efficient chemical pumps available. They feature superior quality construction which makes them perfect for demanding applications. Equipped with powerful neodymium magnets‚ FTI ensures their mag-drive pumps can run for hours with great efficiency. The carbon bushings used in their pumps allow dry running for hours without damage. Finally, the completely encapsulated magnets and a vapor barrier between the wet end and motor adapter secure the pump from corrosive vapors in harsh pumping environments.

Design Advantages

  • Long hours of safe dry-running
  • Leak-free and low maintenance
  • Rugged, corrosion-resistant construction for longevity
  • Deep-lift capabilities and fast priming
  • Extreme energy efficiency
  • Withstands demanding solid handling applications

Available Options

We customise pumps according to your specific application. Get in touch with us today to get a complete list of your options.

  • Wide range of sizes
  • Seal options
  • Impeller sizes
  • Material options
  • Spare parts
  • Mounting

Key Specifications

MODELS DB SP UC MSKC KC
DESCRIPTION PLASTIC MAG DRIVE PLASTIC MAG DRIVE SELF-PRIMING MAG DRIVE HEAVY DUTY ANSI MAG DRIVE MULTI-STAGE MAG DRIVE PLASTIC MAG DRIVE
MAX HEAD Up to 61.3 m Up to 93.4 m Up to 53.34 m Up to 150 m Up to 30.18 m Up to 46.02 m
MAX FLOW Up to 50.19 m3/h Up to 15.85 lph Up to 57.46 lph Up to 329.33 lph Up to 13.85 lph Up to 54.74 lph
VARIATIONS 14 2 4 18 1 12

Applications

Difficult fluid handling such as:

  • Abrasive liquids
  • Acids
  • Bases
  • Corrosives
  • Flammables
  • Inorganic solutions
  • Slurries
  • Liquids with entrained gasses
  • Organic liquids
Talk to our experts
Tsurumi GPN

OUR RANGE OF AVAILABLE SEALLESS MAG DRIVE PUMPS

Abaque Peristaltic Hose Pump HD 10 or HD20 model

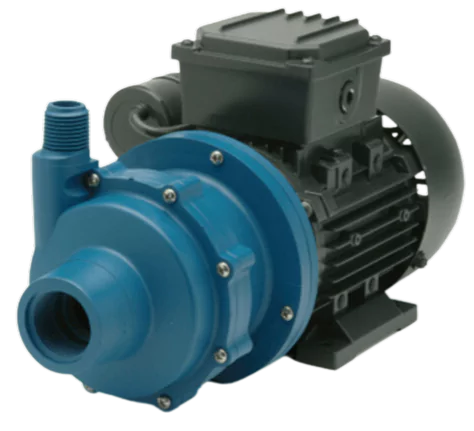

DB

PLASTIC MAG DRIVE
Abaque Peristaltic Hose Pump HD 10 or HD20 model

MSDB

PLASTIC MAG DRIVE
Abaque Peristaltic Hose Pump HD 10 or HD20 model

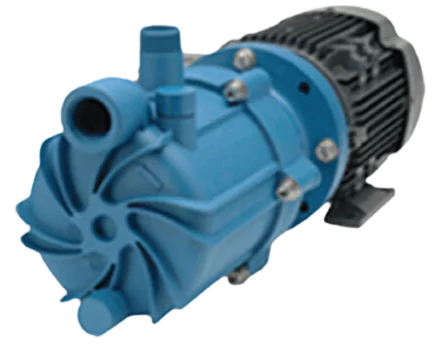

SP

SELF-PRIMING MAG DRIVE
Abaque Peristaltic Hose Pump HD 10 or HD20 model

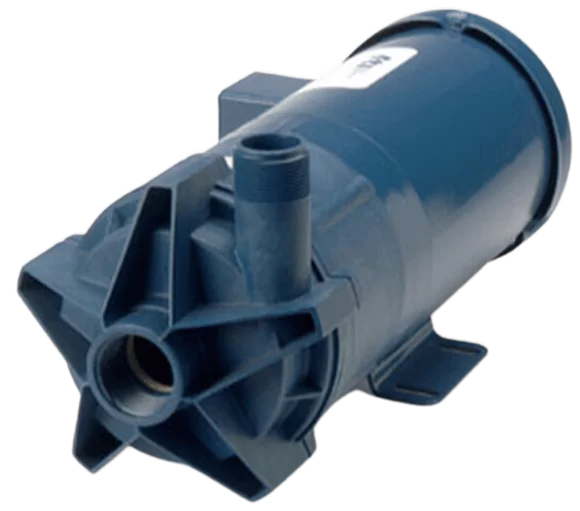

KC

PLASTIC MAG DRIVE
Abaque Peristaltic Hose Pump HD 10 or HD20 model

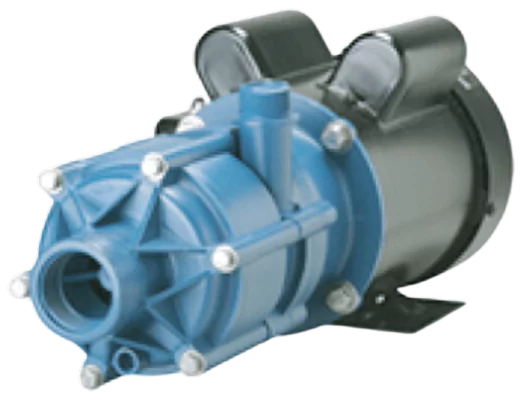

MSKC

MULTI-STAGE MAG DRIVE

PRINCIPLE OF OPERATION

The operating principle of a magnetic drive pump is very simple. A magnetic coupling consists of two magnet assemblies. One is the outer assembly or the drive magnet and the other is the inner assembly or the driven magnet. The outer assembly is connected to a motor and the inner assembly is directly attached to the impeller. At rest, the magnet components of the outer assembly are aligned with their counterparts in the inner assembly. When the load (torque) is applied, the coupling deflects angularly and the magnets create a force of simultaneous attraction and repulsion. This force is used to transfer torque from the motor to the impeller and is what pumps the fluid out.
