Finish Thompson’s UltraChem range is composed of leak-free and magnetically driven pumps. With a clever case design and carefully chosen materials, the UltraChem pumps promise maximum reliability even in the most extreme situations without risks of sudden leaks and failure. The UltraChem series prioritises maximising the time between routine services by incorporating materials with high resistance to corrosion caused by strong chemicals. Specifically, the series combines a tough ductile iron casing with a Tefzel (ETFE) lining for superior corrosion resistance.

Talk to our Experts
UCP SERIES – ANSI DIMENSIONAL PUMPS

Design Advantages

Sealless design for reduced downtime
No cross-contamination, wastage, hazards
Simple design for easier servicing and reduced downtime
Close-coupled design, reduced alignment issues
Modified volute design for minimized radial loads
Balanced hydraulic axial thrust loads

Available Options

We customise pumps according to your specific application. Get in touch with us today to get a complete list of your options.

Material options
Dri-Coat silicon carbide bearing/shaft option
Long-coupled bearing frame
Bronze pump ring
Accessories
Spare parts
Mounting

Applications

Extreme chemical processing applications in:

General industrial applications
Oil and gas
Brewery and distillery
Semiconductor
Mining
Pharmaceutical
Food
Personal Care
Home Care

Principle of Operation

The operating principle of a magnetic drive pump is very simple. A magnetic coupling consists of two magnet assemblies. One is the outer assembly or the drive magnet and the other is the inner assembly or the driven magnet. The outer assembly is connected to a motor and the inner assembly is directly attached to the impeller. At rest, the magnet components of the outer assembly are aligned with their counterparts in the inner assembly. When the load (torque) is applied, the coupling deflects angularly and the magnets create a force of simultaneous attraction and repulsion. This force is used to transfer torque from the motor to the impeller and is what pumps the fluid out.

FTI ULTRACHEM®Product Range

UCR SERIES - ANSI DIMENSIONAL PUMPS

UCR SERIES - ANSI DIMENSIONAL PUMPS

ULTRAChem® UCR pumps are purpose-built for outstanding reliability in even the most demanding chemical processing environments. These magnetic drive pumps are sealless and ANSI-dimensional, ensuring straightforward installation and integration. Manufactured from robust ductile iron and lined with pure ETFE, UCR pumps deliver excellent corrosion resistance and long-lasting performance.

Features

  • Utilises powerful neodymium magnets for higher efficiency
  • Prevents leakage and fugitive emissions
  • Industry’s lowest radial loads
  • Dual bushing design for reduced stress
  • Balanced axial forces within the pump, controlling thrust
  • Complete encapsulation of inner magnets in ETFE lining prevents permeation when handling aggressive chemicals

Key Specifications

  • Maximum working pressure: 20.7 Bar
  • Maximum viscosity: over 200 cP
  • Maximum temperature: 121°C
  • Flow range: 0.3 to 329 m3/hr
  • Maximum head: 150 m
  • Specific gravity: over 1.8
  • Casing: ANSI/ASME B73.1m & 73.3
  • Flanges: ANSI 150#, ANSI 300#, or ISO PN40
  • Certifications: CE/UKCA/ATEX

Chemicals Handled

  • Sodium hydroxide
  • Sulfuric acid
  • Hydrochloric acid
  • Sodium hypochlorite
  • Plating solutions
  • Corrosive blends
  • Wastewater
  • Solvents

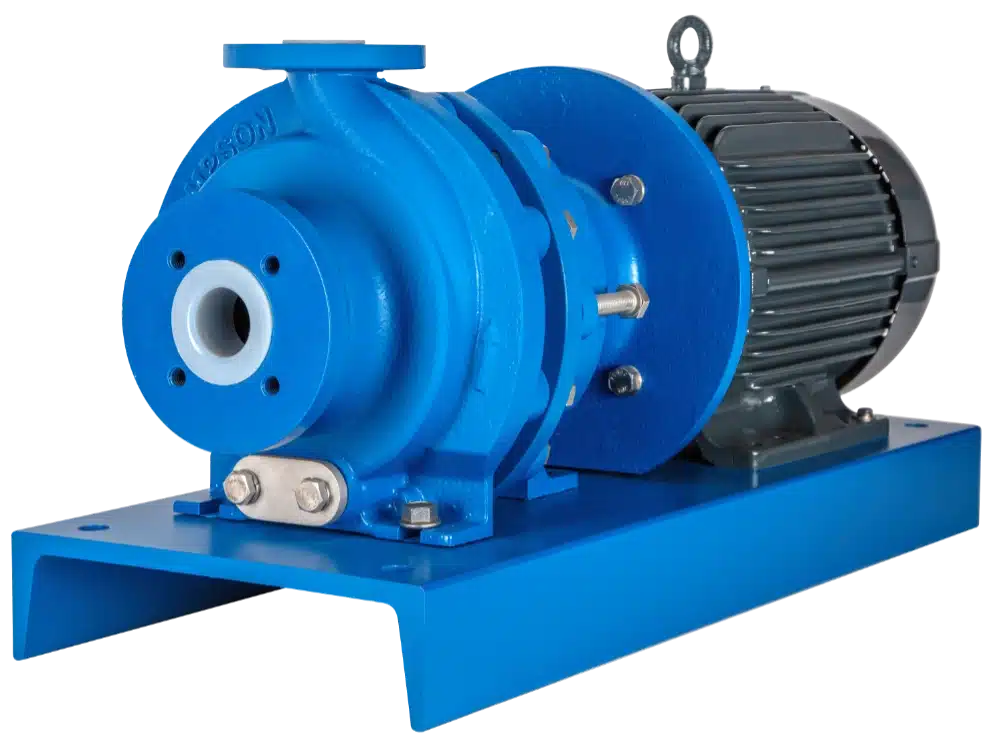

UCP SERIES – ANSI DIMENSIONAL PUMPS

UCP SERIES – ANSI DIMENSIONAL PUMPS

The UCP Series pumps deliver excellent chemical resistance and improved hydraulic performance, all at a more cost-effective price point. These mag drive pumps combine ETFE and polypropylene wetted components, offering a more affordable alternative to traditional all-ETFE models. Thanks to the versatility of polypropylene, UCP pumps are suitable for nearly 70% of all chemical processing applications.

Features

  • Polypropylene/ETFE construction offers high corrosion resistance and exceptional reliability in demanding chemical applications.
  • Modified concentric volute allows pressure on impeller periphery to be uniform, resulting in industry’s lowest radial loads
  • Sealless mag-drive design features complete encapsulation of magnets in pure, unfilled polypropylene for superior corrosion resistance
  • Barrier features glass-filled polypropylene liner with a carbon-fiber reinforced exterior shell for exceptional strength

Key Specifications

  • Maximum working pressure: 20.7 Bar
  • Maximum viscosity: over 200 cP
  • Maximum temperature: 121°C
  • Flow range: 0.3 to 329 m3/hr
  • Maximum head: 150 m
  • Specific gravity: over 1.8
  • Casing: ANSI/ASME B73.1m & 73.3
  • Flanges: ANSI 150#, ANSI 300#, or ISO PN40
  • Certifications: CE/UKCA/ATEX

Chemicals Handled

  • Sodium hydroxide
  • Sulfuric acid
  • Hydrochloric acid
  • Sodium hypochlorite
  • Plating solutions
  • Corrosive blends
  • Wastewater
  • Solvents

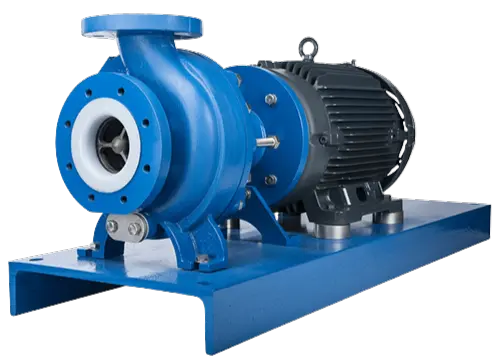

UC LEGACY SERIES - ANSI Dimensional Pumps

UC LEGACY SERIES - ANSI DIMENSIONAL PUMPS

The original ULTRAChem pump is designed for leak-free performance and exceptional durability, offering maximum protection against corrosion. Constructed from rugged ductile iron and lined with ETFE, UC pumps provide outstanding resistance to even the most aggressive chemicals.

Features

  • Sealless mag drive design features powerful neodymium magnets, ensuring reliable, leak-free operation
  • Industry’s lowest radial loads as a result of modified concentric volute or partial splitter casing
  • Fully supported shaft and self-aligning dual bushings are designed for optimum alignment, preventing premature wear

Key Specifications

  • Maximum working: 20 bar
  • Maximum viscosity: over 200 cP
  • Maximum temperature: 121°C
  • Flow range: Up to 330 m3/hr
  • Maximum head: 100.6 meters
  • Specific gravity: over 1.8
  • Casing: ANSI/ASME B73.1m & 73.3
  • Flanges: ANSI, ISO/DIN
  • Certifications: CE, ATEX
