Global Pump Global Standard Centrifugal (GSC) Wellpoint

Global Pump Standard Centrifugal Wellpoint pump sets are designed to effectively handle the arduous requirements of underdrain and wellpoint dewatering to keep construction pits dry. These diesel-driven, high suction lift, high air handling pumps are compact, dependable, and completely automatic self-priming with a built-in air separation feature.

They use a dual-diaphragm priming system that generates up to 170 m3/min (100 CFM) of airflow volume without needing an oil-cooled vacuum pump.

Features & Benefits

Know more about the features & benefits of using Global Pump Global Standard Centrifugal (Gsc) Wellpoint.

Engineered specifically for portable applications with skid and cart options
Belt-driven vacuum pump provides high air handling and a fully automatic priming system
Fully guarded coupling, pulley and belting
High-efficiency air separation tank separates air and water before entering the pump
Condensation chamber with drain contains any condensation or water vapor from the air
Oil recovery system separates and removes oil and other particulates from the discharge air
Pump casings hydrostatically tested to 345 kPa, enduring above the peak casing design pressure
Standard engine control panel provides preset emergency shutdown protection
Standard skid-mounted format with integral fuel tank, tie downs, lifting bail and fork pockets

Available Options

We customise pumps according to your specific application. Get in touch with us to know your options.

Fuel tanks for extended run times and/or remote location as required
Highway trailer with integral fuel cell/chassis, lights, fenders, tie downs, lifting bail, front and rear jacks
Trailer brakes can be offered as required
Sound attenuated enclosure options
Hose racks, accessory containers and other custom fabrication available as required
Wide range of suction and discharge fittings available including Global’s own “QD” Quick
Disconnect fittings and accessories

Key Specifications

Here are the key specifications of Global Pump Global Standard Centrifugal (Gsc) Wellpoint.

Flow: Up to 409 m3/h
Head: Up to 33 m
Max Solids: Up to 22.2 mm

Applications

Here is a list of industrial applications for which Global Pump Global Standard Centrifugal (Gsc) Wellpoint are commonly utilized.

Construction site dewatering/wellpointing

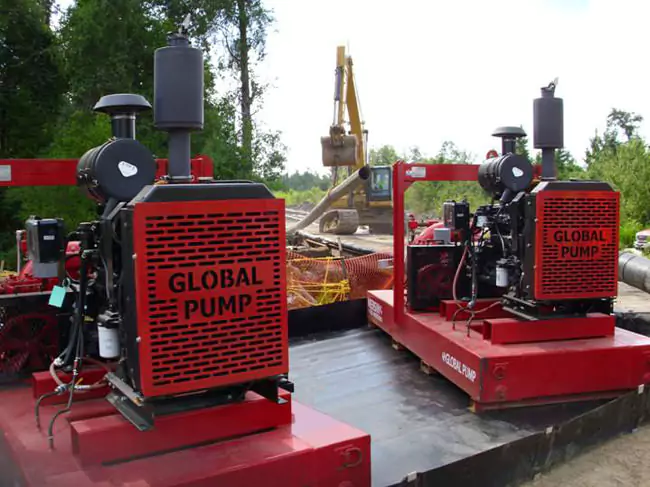

Two Global Pump GSC Wellpoint centrifugal pumps operating side by side at a pipeline installation site. The red units handle dewatering and trench drainage to support underground construction.

PUMP MODELS AND TECHNICAL SPECIFICATIONS

Downloads

Global Pump GSC 4GSCWP_Cutsheet

Global Pump GSC 6GSCWP_Cutsheet

Global Pump GSC 8GSCWP_Curve

    MODELS
    SIZE
    MAX FLOW
    MAX HEAD
    MAX SOLIDS



    4GSC
    100mm x 100mm
    136 m3/h
    31m
    15.9mm


    6GSC
    150mm x 150mm
    273 m3/h
    33m
    19mm


    8GSC
    200mm x 200mm
    409 m3/h
    33m
    22.2mm


MODELS	SIZE	MAX FLOW	MAX HEAD	MAX SOLIDS
4GSC	100mm x 100mm	136 m3/h	31m	15.9mm
6GSC	150mm x 150mm	273 m3/h	33m	19mm
8GSC	200mm x 200mm	409 m3/h	33m	22.2mm

ALL-PUMPS WELLPOINT DEWATERING SOLUTION

The right pump for the right job keeps you on top of construction completion schedules. Wellpoint dewatering is going to be there from start to finish. Once wellpoint dewatering starts, it has to stay in continuous operation until the construction project is completed. For this process, our customers request the Global Pump GSC Wellpoint pumps for their underdrain dewatering needs.
