Gorman Rupp Self-Priming Pumps

Gorman-Rupp self-priming pumps are the world’s leading choice for waste-handling applications in numerous industries. These centrifugal pumps are easy to install and easy to service.

They can be mounted high and dry at floor level with only the suction line in the liquid, thus eliminating the need for service personnel to enter the sump. The pumps can be serviced easily with common hand tools, thus reducing maintenance costs and time.

Features & Benefits

Know more about the features & benefits of using Gorman Rupp Self-Priming Pumps.

Automatic priming results in dependable performance
Solids-handling, two-vane, semi-open impeller.
Pump out vanes on impeller shroud reduce foreign material buildup
Double-floating, self-aligning oil lubricated mechanical cartridge seal
Removable cover plate for quick and easy access to pump interior
Replaceable wear-plate means no expensive castings to replace.

Available Options

We customise pumps according to your specific application. Get in touch with us to know your options.

Connection options
Drive variations
Material options
Spare parts
Baseplate

Applications

Gorman Rupp Self-Priming Pumps are commonly utilized on waste handling applications in industries such:

Steel and paper mills
Deep mines
Food processing plants
Appliance and automotive factories,
Tanneries
Wineries

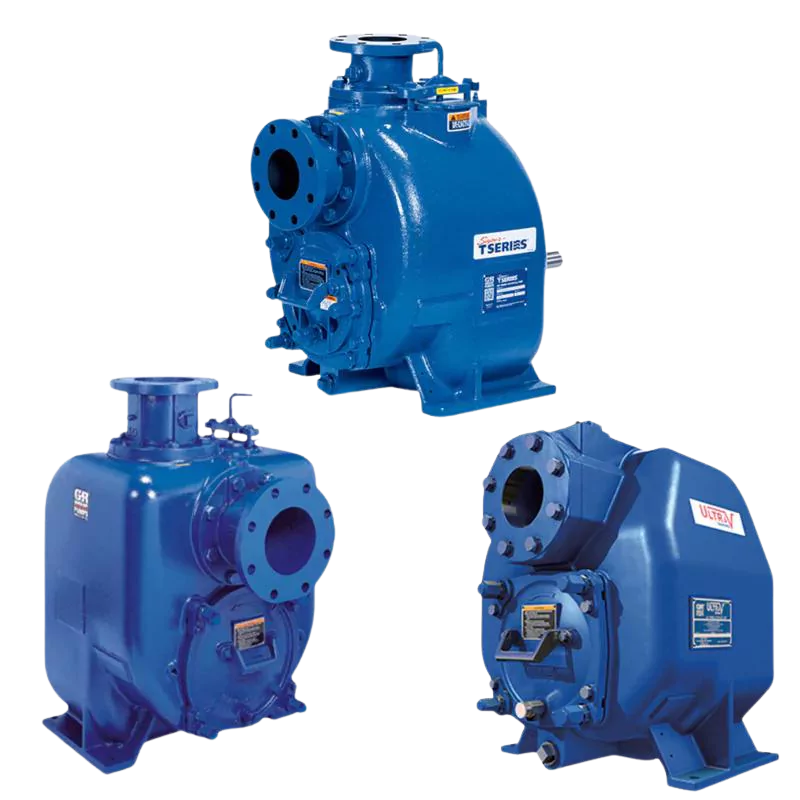

gorman-rupp-pumps-gorman-rupp-self-priming-pumps-self-priming-pumps-transp

PRINCIPLE OF OPERATION

Self-Priming Centrifugal

Gorman-Rupp self-priming centrifugal pumps have two phases of operation: the priming and the pumping mode. In the priming stage, the pump acts like a liquid ring pump where a rotating impeller generates a vacuum at the impeller’s eye, which draws air into the pump from the suction line. At the same time, it creates a cylindrical ring of liquid inside the pump casing. This forms a gas-tight seal. Air bubbles are then trapped in the liquid within the impeller’s vanes and transported to the discharge port. There, the air is expelled and the liquid returns under gravity to the reservoir of the pump casing.

Liquid rises up gradually to the suction line as it is evacuated. This process continues until liquid replaces air in the suction piping and the pump. Here, the normal centrifugal pump operation starts.












    MODELS
    MAX CAPACITY
    MAX HEAD
    MAX SOLID SIZE
    SIZES
    CONSTRUCTION



    SUPER T SERIES
    215 lps
    40 m
    76 mm
    50 mm, 80 mm, 100 mm, 150 mm, 200 mm, 250 mm
    Cast Iron, CD4MCu, Ductile Iron, Stainless Steel


    ULTRA V SERIES
    120 lps
    99 m
    76 mm
    80 mm, 100 mm, 150 mm
    Cast Iron, CD4MCu, Stainless Steel


    SUPER U SERIES
    95 lps
    63 m
    32 mm
    80 mm, 100 mm, 150 mm
    Cast Iron, CD4MCu, Stainless Steel


    T SERIES
    215 lps
    40 m
    76 mm
    50 mm, 80 mm, 100 mm, 150 mm, 200 mm, 250 mm
    Cast Iron, CD4MCu, Stainless Steel


    RD & RS SERIES
    92 lps
    119 m
    13 mm
    50 mm, 80 mm, 100 mm, 125 mm
    Cast Steel, Ductile Iron


    O SERIES
    85 lps
    122 m
    17 mm
    50 mm, 80 mm, 100 mm, 150 mm
    Aluminum, Bronze, Cast Iron, Ductile Iron


    10 SERIES
    423 lps
    40 m
    76 mm
    0 mm, 50 mm, 80 mm, 100 mm, 150 mm, 300 mm
    Bronze, Cast Iron, CD4MCu, Stainless Steel


    80 SERIES
    177 lps
    62 m
    64 mm
    30 mm, 40 mm, 50 mm, 80 mm, 100 mm, 150 mm, 200 mm, 250 mm
    Cast Iron, Ductile Iron, Stainless Steel


    SUPER T SERIES - ENGINE DRIVEN
(57 HP - 148 HP)
    221 lps
    43 m
    76 mm
    100 mm, 150 mm, 200 mm, 250 mm
    Cast Iron


    ULTRA V SERIES – ENGINE DRIVEN
(Up to 115.9 HP)
    129 lps
    53 m
    76 mm
    80 mm, 100 mm, 150 mm
    Cast Iron


    80 SERIES - ENGINE DRIVEN
(3 HP - 103 HP)
    202 lps
    64 m
    64 mm
    50 mm, 80 mm, 100 mm, 150 mm, 200 mm, 250 mm
    Aluminum, Cast Iron


    10 SERIES - ENGINE DRIVEN
(3 HP - 101 HP)
    429 lps
    53 m
    76 mm
    40 mm, 50 mm, 80 mm, 100 mm, 150 mm
    Aluminum, Cast Iron


    O SERIES® (POWER TAKE-OFF)
    97 lps
    140 m
    30 mm
    50 mm, 80 mm, 100 mm, 150 mm, 200 mm
    Aluminum, Ductile Iron


    SUPER T SERIES® SILENT PUMP
    101 lps
    43 m
    76 mm
    150 mm
    Cast Iron


    SHIELD-A-SPARK
(3 HP -9 HP
    25 lps
    43 m
    19 mm
    50 mm, 80 mm
    Aluminum, Cast Iron





MODELS	MAX CAPACITY	MAX HEAD	MAX SOLID SIZE	SIZES	CONSTRUCTION
SUPER T SERIES	215 lps	40 m	76 mm	50 mm, 80 mm, 100 mm, 150 mm, 200 mm, 250 mm	Cast Iron, CD4MCu, Ductile Iron, Stainless Steel
ULTRA V SERIES	120 lps	99 m	76 mm	80 mm, 100 mm, 150 mm	Cast Iron, CD4MCu, Stainless Steel
SUPER U SERIES	95 lps	63 m	32 mm	80 mm, 100 mm, 150 mm	Cast Iron, CD4MCu, Stainless Steel
T SERIES	215 lps	40 m	76 mm	50 mm, 80 mm, 100 mm, 150 mm, 200 mm, 250 mm	Cast Iron, CD4MCu, Stainless Steel
RD & RS SERIES	92 lps	119 m	13 mm	50 mm, 80 mm, 100 mm, 125 mm	Cast Steel, Ductile Iron
O SERIES	85 lps	122 m	17 mm	50 mm, 80 mm, 100 mm, 150 mm	Aluminum, Bronze, Cast Iron, Ductile Iron
10 SERIES	423 lps	40 m	76 mm	0 mm, 50 mm, 80 mm, 100 mm, 150 mm, 300 mm	Bronze, Cast Iron, CD4MCu, Stainless Steel
80 SERIES	177 lps	62 m	64 mm	30 mm, 40 mm, 50 mm, 80 mm, 100 mm, 150 mm, 200 mm, 250 mm	Cast Iron, Ductile Iron, Stainless Steel
SUPER T SERIES - ENGINE DRIVEN (57 HP - 148 HP)	221 lps	43 m	76 mm	100 mm, 150 mm, 200 mm, 250 mm	Cast Iron
ULTRA V SERIES – ENGINE DRIVEN (Up to 115.9 HP)	129 lps	53 m	76 mm	80 mm, 100 mm, 150 mm	Cast Iron
80 SERIES - ENGINE DRIVEN (3 HP - 103 HP)	202 lps	64 m	64 mm	50 mm, 80 mm, 100 mm, 150 mm, 200 mm, 250 mm	Aluminum, Cast Iron
10 SERIES - ENGINE DRIVEN (3 HP - 101 HP)	429 lps	53 m	76 mm	40 mm, 50 mm, 80 mm, 100 mm, 150 mm	Aluminum, Cast Iron
O SERIES® (POWER TAKE-OFF)	97 lps	140 m	30 mm	50 mm, 80 mm, 100 mm, 150 mm, 200 mm	Aluminum, Ductile Iron
SUPER T SERIES® SILENT PUMP	101 lps	43 m	76 mm	150 mm	Cast Iron
SHIELD-A-SPARK (3 HP -9 HP	25 lps	43 m	19 mm	50 mm, 80 mm	Aluminum, Cast Iron
