Graco Hose Reels

Graco’s collection of well-crafted and carefully engineered hose reels are among the leading hose organisation options in the market. They are constructed using the highest quality materials and technology so they can deliver exactly what they are made for – decluttering and improving productivity in industrial and commercial setups.

They come in a range of sizes and materials so they can support a variety of hose, cables, flexible tubing, and wires that are used to dispense different types of fluids in a range of distances.

Features & Benefits

Know more about the features & benefits of using Graco Hose Reels.

Enclosure protects hose from dirt and grime, extending hose life
Flexible installation options – ceiling, wall truck or bench.
Durable and lasting construction
Spring-rewind type for easier and faster rewinding of hose
Spring Adjustment feature increases or decreases spring tension
Full-Flow Swivel maximizes material flow with minimal pressure drop for faster fills

Available Options

All-Pumps is complete with Graco’s range of hose reels. Customisation is available to suit your specific application. Connect with us today to find the most suitable hose reel for your business.

Wide range of hose sizes
Range of frame types
Range of reel type
Winding options

Key Specifications

Here are the key specifications of Graco Hose Reels.

Temperatures from -40 °C to 100 °C
Lengths up to 46 meters

Applications

Here is a list of industrial applications for which Graco Hose Reels are commonly utilized.

Fast lubes
Car/truck dealerships
Lube trucks
Manufacturing plants
General service shops
Construction equipment and fleet maintenance shops
Municipalities and transits

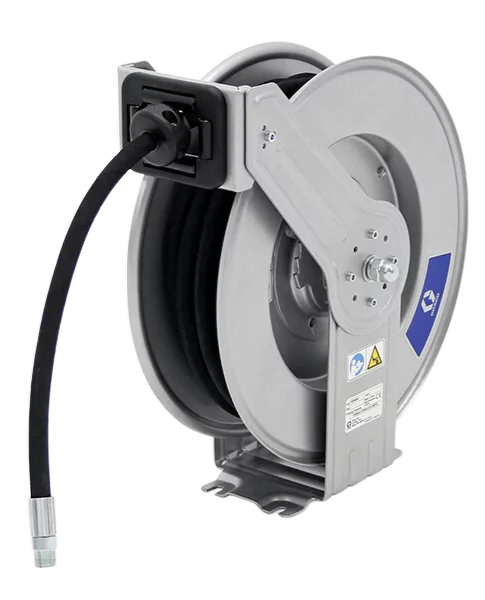

LDX

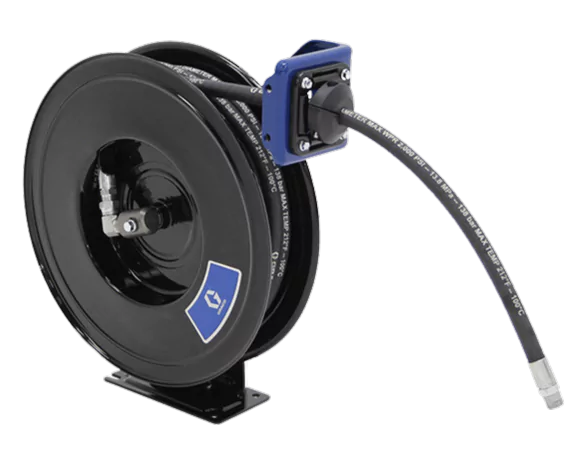

SDX

OUR RANGE OF AVAILABLE HOSE REELS PUMPS

Talk to Experts

LDX

SDX

    MODEL / SERIES

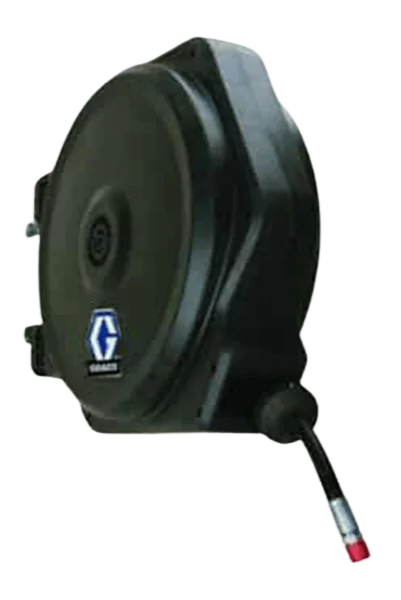

    LD
    LDX

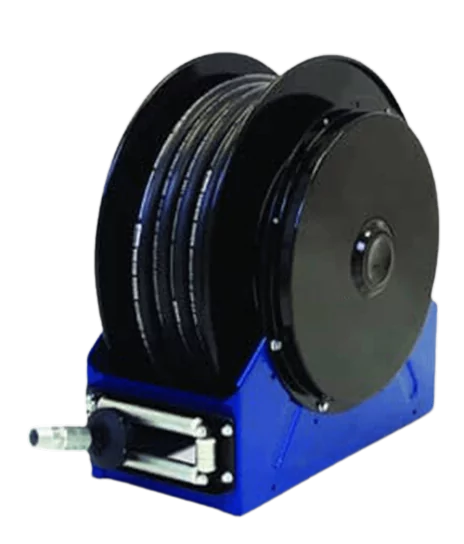

    XD
    SDX

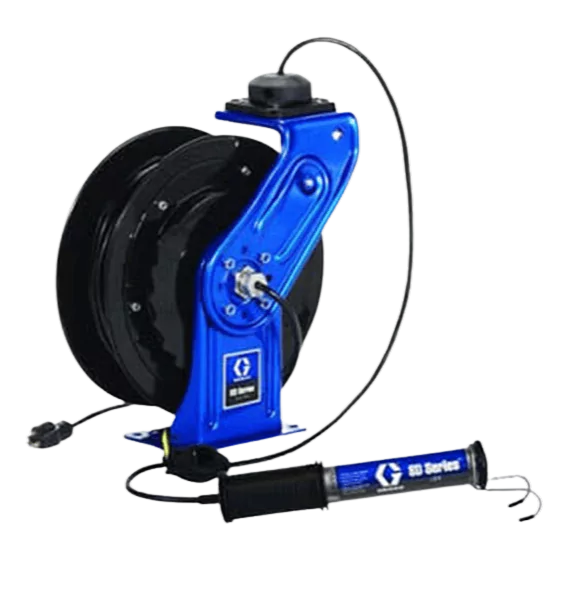

    SD



    REEL TYPE
    Reel with hose
    Reel with hose
    Reel with hose/Bare Reel
    Reel with hose
    Bare Reel


    FRAME TYPE
    Enclosed
    Dual Pedestal
    Dual Pedestal/Box type

    Single Pedestal
    Single Pedestal



    FLUID TYPE
    Air/water/oil/
Petroleum/grease/
antifreeze
    air/water/oil/grease/antifreeze
    Air/water/oil/grease/
Antifreeze/
WWS/fuel/
WOE/Diesel/
Evacuation applications
    Air/Water/
Antifreeze/
WWS

    Grease


    HOSE SIZE/S
    10mmx11m
13mmx11m
13mmx14m
6mmx11m
6mmx15m
13mmx15m
10mmx15m
    10mmx15m
13mmx15m
13mmx14m
    13mmx11m
10mmx15m
13mmx15m
10mmx20m
6mmx15m
13mmx23m
19mmx15m
25mmx9m
10mmx23m
25mmx15m
13mmx30m
19mmx23m
19mmx30m
25mmx23m
25mmx30m
38.1mmx15m
31.4mmx15m
38mmx15m
51mmx10m
25mmx46m
38mmx30m
51mmx15m
    10mmx20m
    10mmx15m


    HOSE INLET SIZE/S
    9.525mm to 12.7 mm
    10mm to 13mm
    13mm
19mm
25mm
38.1mm
51mm
    13mm
    10mm


    MAX TEMPERATURE(°C)
    60
    65 to 100
    80 to 87
    87
    93


    MIN TEMPERATURE (°C)
    -10 to –17.8
    -26 to -40
    -28 to -40
    -28
    -40


    WINDING TYPE/S
    Spring-Rewind Reel
    Spring-Rewind Reel
    Spring-Rewind Reel
    Spring-Rewind Reel
    Spring-Rewind Reel


    MOUNT LOCATION
    Wall
    Truck/
Bench
    Truck/Bench
    Truck/
Bench

    Overhead Mount





MODEL / SERIES	LD	LDX	XD	SDX	SD
REEL TYPE	Reel with hose	Reel with hose	Reel with hose/Bare Reel	Reel with hose	Bare Reel
FRAME TYPE	Enclosed	Dual Pedestal	Dual Pedestal/Box type	Single Pedestal	Single Pedestal
FLUID TYPE	Air/water/oil/ Petroleum/grease/ antifreeze	air/water/oil/grease/antifreeze	Air/water/oil/grease/ Antifreeze/ WWS/fuel/ WOE/Diesel/ Evacuation applications	Air/Water/ Antifreeze/ WWS	Grease
HOSE SIZE/S	10mmx11m 13mmx11m 13mmx14m 6mmx11m 6mmx15m 13mmx15m 10mmx15m	10mmx15m 13mmx15m 13mmx14m	13mmx11m 10mmx15m 13mmx15m 10mmx20m 6mmx15m 13mmx23m 19mmx15m 25mmx9m 10mmx23m 25mmx15m 13mmx30m 19mmx23m 19mmx30m 25mmx23m 25mmx30m 38.1mmx15m 31.4mmx15m 38mmx15m 51mmx10m 25mmx46m 38mmx30m 51mmx15m	10mmx20m	10mmx15m
HOSE INLET SIZE/S	9.525mm to 12.7 mm	10mm to 13mm	13mm 19mm 25mm 38.1mm 51mm	13mm	10mm
MAX TEMPERATURE(°C)	60	65 to 100	80 to 87	87	93
MIN TEMPERATURE (°C)	-10 to –17.8	-26 to -40	-28 to -40	-28	-40
WINDING TYPE/S	Spring-Rewind Reel	Spring-Rewind Reel	Spring-Rewind Reel	Spring-Rewind Reel	Spring-Rewind Reel
MOUNT LOCATION	Wall	Truck/ Bench	Truck/Bench	Truck/ Bench	Overhead Mount
