Graco Husky AODD

GRACO Husky series is a complete family of metallic and non-metallic air-operated double diaphragm pumps. These pumps have a strong presence in many industries worldwide since they have numerous selections that make it possible for industry owners to choose the perfect fit for their facilities.

All pumps boast a heavy-duty design that offers long life, increased productivity, and lower overall cost of ownership.

Features & Benefits

Know more about the features & benefits of using Graco Husky Aodd.

Rotatable flange design simplifies installation
ANSI 150/DIN PN10 stainless steel flanges
Up to five times longer diaphragm life
Rugged construction, high corrosion and abrasion resistance
Up to 30% more efficient than other AOD pumps
Modular air valve for stall-free, low pulsation pumping

Available Options

All-Pumps can customise pumps according to your requirements and specific applications. Get in touch with us today to find the right pump!

Variety of sizes
Material options for abrasive and corrosive fluids
ATEX options
Food-grade options
Mounting options
Spare parts

Key Specifications

Here are the key specifications of Graco Husky Aodd.

Flow rate up to 68.14 m3/h
Pressures up to 8.62 bar

Applications

Here is a list of industrial applications for which Graco Husky Aodd are commonly utilized.

General chemical and highly corrosive chemical transfer
Abrasive fluids handling including wastewater
Medium viscosity fluids
Drum and tote unloading
Paints handling
Oil and lubricant transfer

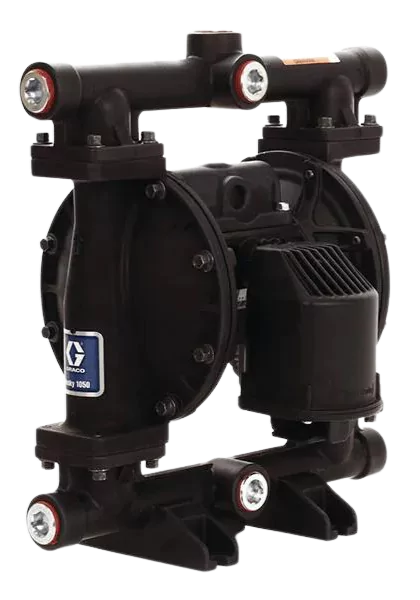

Husky 1050

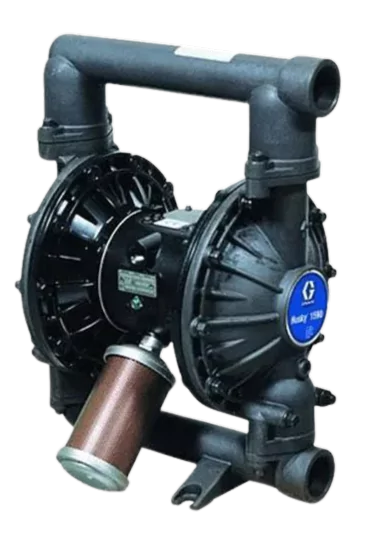

Husky 1590

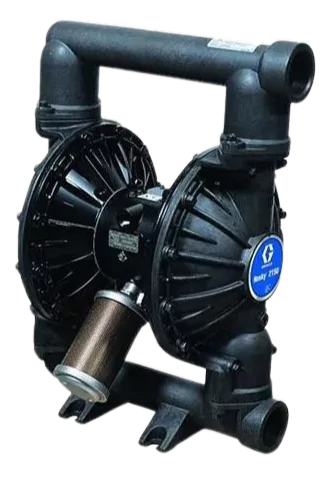

Husky 2150

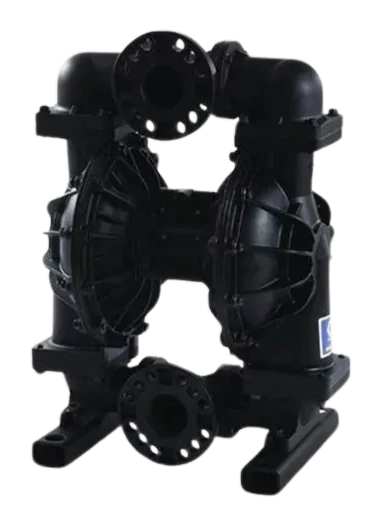

Husky 3300

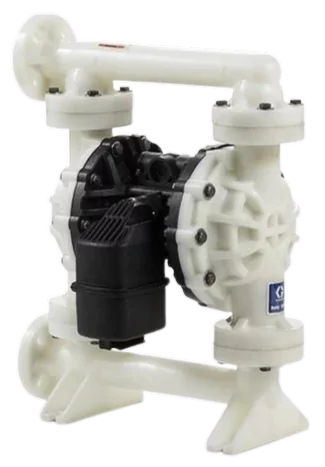

Husky 15120

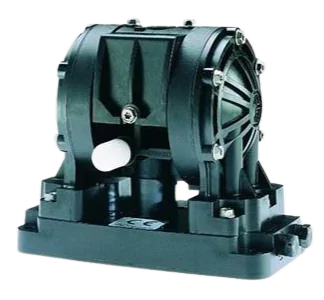

Husky 205

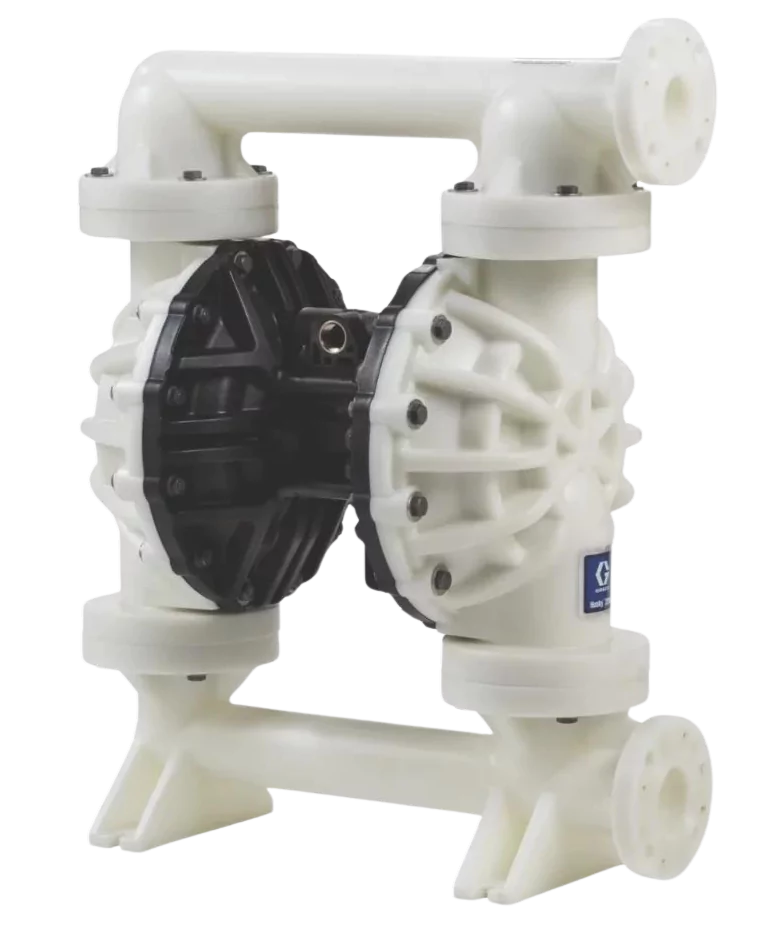

Husky 2200

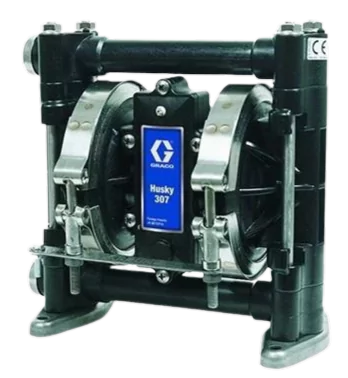

Husky 307

Husky 515

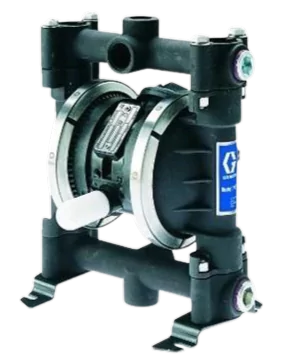

Husky 716

OUR RANGE OF AVAILABLE HUSKY AODD PUMPS

PRINCIPLE OF OPERATION

Graco Air operated double diaphragm (AODD) pumps use compressed air as a power source. The compressed air is shifted from one chamber and then to the other side by a linked shaft. This movement allows the chambers to move simultaneously. This back-and-forth motion forces liquid out of one chamber and into the discharge piping while the other chamber is being filled with liquid at the same time. These pumps use reciprocating elastomeric diaphragms and check valves to pump fluid. The liquid chambers are filled and emptied by fluid that is drawn through a common inlet and discharged through a single outlet.

    Model
    Husky 1050
    Husky 1590
    Husky 2150
    Husky 3300



    Maximum fluid working pressure
    8.62 bar
    8.27 bar
    8.27 bar
    8.62 bar


    Maximum free flow delivery
    11.36 m3/h
    22.71 m3/h
    34.07 m3/h
    68.14 m3/h


    Maximum pump speed
    280 cpm
    200 cpm
    145 cpm
    103 cpm


    Maximum suction lift
    16 ft (4.9 m) dry 29 ft (8.8 m) wet
    18 ft (5.5 m) dry or wet
    18 ft (5.5 m) dry or wet
    16 ft (4.9 m) dry 31 ft (9.4 m) wet


    Air pressure operating range
    1.4-8.6 bar
    1.4-8.4 bar
    1.4-8.4 bar
    1.4-8.6 bar


    Air inlet size
    1/2 npt(f)
    1/2 npt(f)
    1/2 npt(f)
    3/4 in npt(f)





Model	Husky 1050	Husky 1590	Husky 2150	Husky 3300
Maximum fluid working pressure	8.62 bar	8.27 bar	8.27 bar	8.62 bar
Maximum free flow delivery	11.36 m3/h	22.71 m3/h	34.07 m3/h	68.14 m3/h
Maximum pump speed	280 cpm	200 cpm	145 cpm	103 cpm
Maximum suction lift	16 ft (4.9 m) dry 29 ft (8.8 m) wet	18 ft (5.5 m) dry or wet	18 ft (5.5 m) dry or wet	16 ft (4.9 m) dry 31 ft (9.4 m) wet
Air pressure operating range	1.4-8.6 bar	1.4-8.4 bar	1.4-8.4 bar	1.4-8.6 bar
Air inlet size	1/2 npt(f)	1/2 npt(f)	1/2 npt(f)	3/4 in npt(f)
