Graco's Husky EODD Series

Graco Husky e-Series pumps provide a great advantage over regular air diaphragm pumps. They offer higher energy efficiency by using motors rather than air compressors in driving the pump. This helps businesses save a hefty amount from their operational costs.

The material used for the diaphragms can withstand abrasion and corrosion, and without any rotating parts that come in contact with the product, the Husky EOD pumps are made to last long.

Features & Benefits

Know more about the features & benefits of using Graco's Husky EODD Series.

Leak-free and no product contamination
Patented technology, enabling pump to stall under pressure
Reduced energy consumption up to 5x lower than AOD
Self-priming, sealless design improves pump wearability
Patented Air Charged Drive extends pump life
80 percent more efficient than any other diaphragm pump

Available Options

All-Pumps can customise pumps according to your requirements and specific applications. Get in touch with us today to find the right pump!

ATEX models available
Food-grade models available
Range of materials and sizes
Spare parts
Mounting options

Key Specifications

Here are the key specifications of Graco's Husky EODD Series.

Up to 833 lpm
Up to 6.89 bar
Suction lift up to 8.84 m

Applications

Here is a list of industrial applications for which Graco's Husky EODD Series are commonly utilized.

Abrasive products
Corrosive fluids
Shear-sensitive products
Gas entrapped fluids
Food products

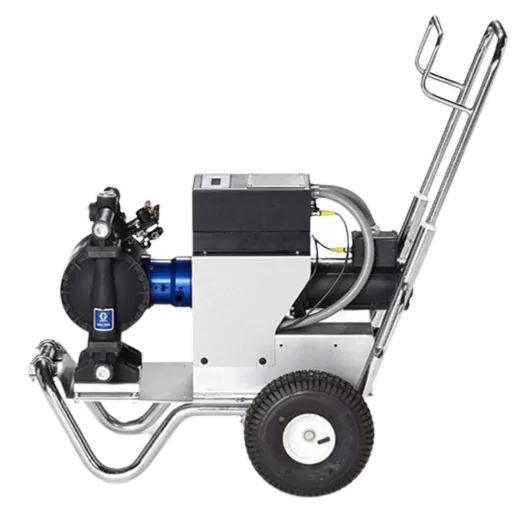

1050E (Industrial)

2150E (Industrial)

2150E (FDA-Approved)

OUR RANGE OF AVAILABLE Graco's Husky EODD Series

1050E (Industrial)

2150E (Industrial)

2150E (FDA-Approved)

PRINCIPLE OF OPERATION

Electric diaphragm pumps use electric drive to operate compared to an air operated diaphragm that uses air to move the diaphragm. Electrical energy is generated by a small electric motor that’s attached to the pump. This starts the pumping action. A cam system inside the pump then converts the circular motion of the rotors into linear motion and drives the diaphragm to move up and down or left and right. This movement of the diaphragm is what will push the liquid to move from one section towards the outlet while the other section is filled up with fluid through the suction.

    Model
    1050e
(Industrial)
    2150e
(Industrial)
    2150e
(FDA Approved)



    Flow
    151 lpm
    330 lpm
    833 lpm


    Maximum fluid working pressure
    87.56 bar
    6.89 bar
    6.89 bar


    Air pressure operating range
    1.38 – 5.52 bar
    1.38-6.89 bar
    1.38-6.89 bar





Model	1050e (Industrial)	2150e (Industrial)	2150e (FDA Approved)
Flow	151 lpm	330 lpm	833 lpm
Maximum fluid working pressure	87.56 bar	6.89 bar	6.89 bar
Air pressure operating range	1.38 – 5.52 bar	1.38-6.89 bar	1.38-6.89 bar
