Saniforce Drum Unloaders

Graco Saniforce Logo
Graco’s SaniForce drum unloaders easily move products with viscosities ranging from 100,000 cps to 1,000,000 cps and guarantee a 99% evacuation rate, making them ideal for transfer applications in the food & beverage, pharmaceutical and personal care industries. Additionally, they can empty a 208-litre drum in less than 5 minutes without diluting or heating the content. Graco drum unloaders also have a modular design, offering users the option to configure their own unloading system.

Know More About Saniforce Drum Unloaders

Abaque Peristaltic Pump HD25 model

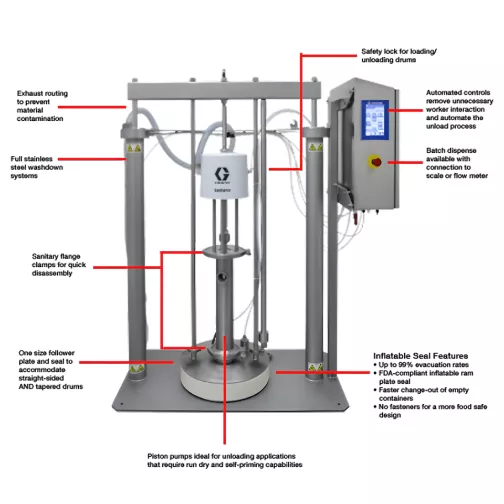

Design Advantages

  • Sanitary flange clamps for quick disassembly
  • Liner guard prevents bags from entering the pump
  • One size follower plate and seal accommodate straight-sided and tapered drums
  • Uses piston of air-operated double diaphragm technology
  • Inflatable wiper seals for increased efficiency and faster change-out of containers

Available Options

We customize pumps according to your specific application. Get in touch with us to know your options.

  • Stainless steel or epoxy coated carbon steel frames
  • Stainless steel enclosed or open controls
  • A choice of 3 different piston pumps or 2 different diaphragm pumps
  • Spare parts

Applications

Fluids Handled:

  • Tomato paste
  • Cosmetics
  • Peanut butter
  • Jams and jellies
  • Toothpaste


Duties:

FOOD and BEVERAGE:

  • Beer & wine
  • Caramels & chocolate syrups
  • Jams & fruit fillings
  • Tomato paste
  • Peanut butter

PHARMACEUTICAL:

  • Medical creams & lotions
  • Bio pharmaceuticals
  • Alcohol
  • Solvent transfer

Personal Care

  • Lotions & creams
  • Cosmetics
  • High care food

GRACO SANIFORCE PISTON PUMP PACKAGES

Model Max Fluid Pressure Max Flow Viscosity Range
SaniForce 6:1 Double Ball Pump 41 bar, 4.1 MPa 15.1 lpm 25,000-60,000 cps
SaniForce 6:1 Priming Piston 41 bar, 4.1 MPa 15.1 lpm 60,000-100,000 cps
SaniForce 5:1 Double Ball Pump 28 bar 2.8 MPa 53 lpm 25,000-60,000 cps
SaniForce 5:1 Priming Piston 28 bar 2.8 MPa 53 lpm 60,000-100,000 cps
SaniForce 12:1 Priming Piston 83 bar, 8.3 MPa 32 lpm 60,000 to 250,000 cps
SaniForce 3150 HS Double Diaphragm Pump 8 bar, 0.8 MPa 568 lpm 100,000 cps
SaniForce 2150 Double Diaphragm Pump 8 bar, 0.8 MPa 568 lpm 100,000 cps
