Graco's Viscount II Series

Graco Viscount II is a supersaver fluid transfer solution that’s ideal for inks. These cost-effective hydraulic piston pumps can help facilities save up to 80% on energy costs. It comes with an enclosed, dual seal wet cup for prolonged seal life and overall pump longevity.

Viscount II’s piston technology allows users to achieve high volumetric efficiency and operate smoothly even under high hydraulic pressures.

Features & Benefits

Know more about the features & benefits of using Graco's Viscount II Series.

Clean, quiet, and efficient pumping
Extremely durable with long-life packing design
Powered by energy-efficient Viscount hydraulic motor
Stainless steel wetted parts
Low pulsation pumping
Evacuates pumps, bins, drums fast and easy

Available Options

All-Pumps can customise pumps according to your requirements and specific applications. Get in touch with us today to find the right pump!

Motor options
Spare parts
Mounting option

Key Specifications

Here are the key specifications of Graco's Viscount II Series.

Flows up to 28.5
Pressures up to 158.6 bar
Temperatures up to 82.2C

Applications

Here is a list of industrial applications for which Graco's Viscount II Series are commonly utilized.

Ink manufacturing
Printing
Liquid ink, heavy ink, difficult ink
Letterpress
Lithographic

Different options for a Peristaltic hose pumps tubing

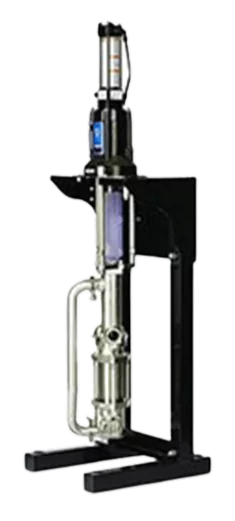

Viscount II 1200/2400

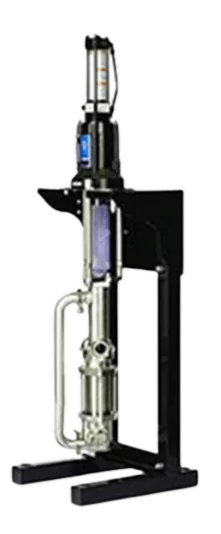

Viscount II 1900/3100

OUR RANGE OF AVAILABLE VISCOUNT II PUMPS

Talk to Experts

Abaque Peristaltic Hose Pump HDX40 model

Viscount II 1200/2400

Viscount II 1900/3100

PRINCIPLE OF OPERATION

A piston pump’s working principle is similar to a positive displacement pump’s, operating with assistance from a pumping mechanism force to increase the volume of the liquid. Graco’s piston pumps are lift type. In this type of pump, the piston’s upward stroke causes the fluid to be drawn to the lower portion of the cylinder with the help of a control device called valve. Meanwhile, the downward stroke lets the fluid flow to the upper cylinder portion with the help of control devices which are arranged in the piston. After fluid is drawn upward, it is released outside the pump from the higher portion of the cylinder through a spout.


    MODEL
    VISCOUNT II 1200/2400
    VISCOUNT II 1900/3100

    Maximum Flow Rate (lpm)
    28.5
    10.6

    Maximum Operating Temperature (°C)
    65.6
    82.2

    Maximum Working Pressure (bar)
    1900
    2300

MODEL	VISCOUNT II 1200/2400	VISCOUNT II 1900/3100
Maximum Flow Rate (lpm)	28.5	10.6
Maximum Operating Temperature (°C)	65.6	82.2
Maximum Working Pressure (bar)	1900	2300
