Grundfos’ End Suction Long-Coupled Single Stage Range

Grundfos’ End Suction Long-Coupled Single Stage Range

If water pressure is too high for too long, you risk increased water loss, lower revenue and increased maintenance of pipes. Grundfos supplies a complete system designed for flow and pressure management that meets medium-flow requirements from local pumping stations. In these pumps, the liquid runs directly into the impeller and the inlet and outlet form a 90 angle to each other. The long-coupled design makes the pumps easy to service and maintain.

industrial

Know more about Grundfos
End Suction Long-coupled Single Stage Range Series

Design Advantages
  • Efficient pumping at a low initial cost
  • Simple design with very few moving parts
  • Designed to specific pump standards including ISO 2858 and EN 733
  • Various shaft options
  • Cast iron or stainless steel pump housing
  • Compatible with Grundfos GO remote control (NBE/NBGE models only)
Available Options

We customise pumps according to your specific application. Get in touch with us today to get a complete list of your options.



  • Materials options
  • Shaft options
  • Accessories and spare parts
  • Baseplate/mounting
Key Specifications

MODELS/SERIES

NK, NKE, NKE Series 2000, NK Bare shaft

NKG, NKGE, NKG Bare shaft

NK Bare shaft



NKG Bare shaft



MAX FLOW

2476 m³/h

523 m³/h

523 m³/h

2476 m³/h

MAX HEAD

272 m

251 m

251 m

272 m

MAX TEMP

-25 .. 170 °C

-25 .. 140 °C

-25 .. 140 °C

-25 .. 170 °C

MAX PRESSURE

25 bar

16 bar

16 bar

25 bar

OTHERS

End-suction long-coupled pumps according to EN 733

End-suction long-coupled pumps according to ISO 2858

Bare shaft pumps according to EN 733



Bare shaft pumps according to ISO 2858



Applications
  • Commercial air conditioning
  • Commercial heating
  • Commercial hot water recirculation
  • Commercial water pressure boosting
  • District cooling
  • District heating
  • Drinking water treatment
  • Irrigation
  • Cooling
  • Desalination
  • Industrial heating
  • Machining
  • Process liquids transfer
  • Industrial process water treatment
  • Industrial water supply
  • Surface water intake
  • Water distribution
  • Wastewater treatment
nkg bare series
INDUSTRIAL

Our range of available
End Suction Long-coupled Single Stage Range pumps

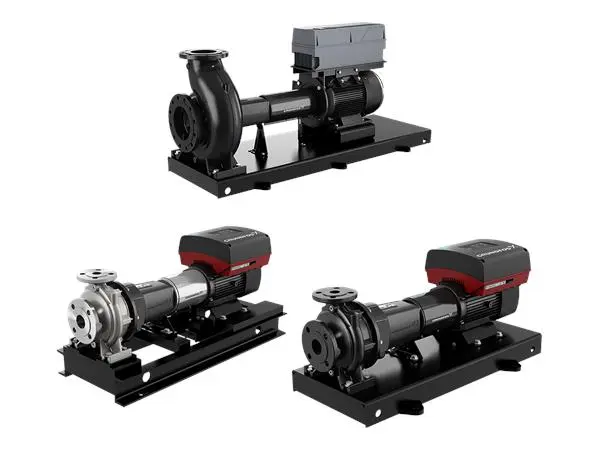

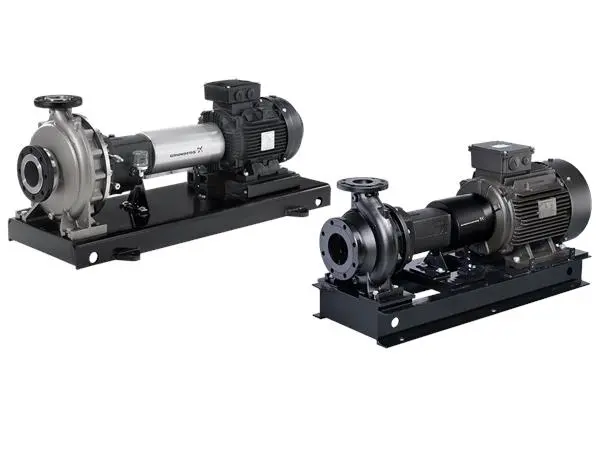

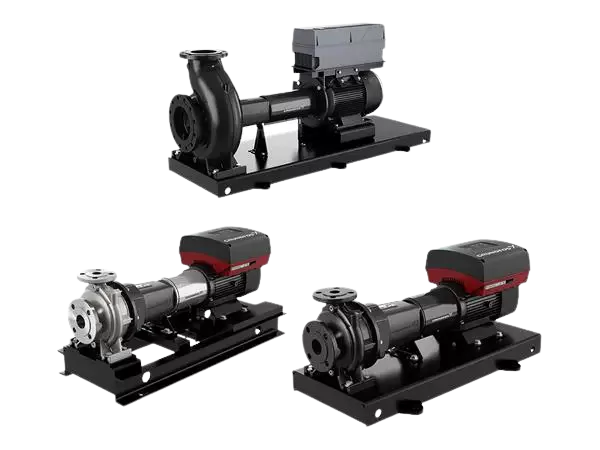

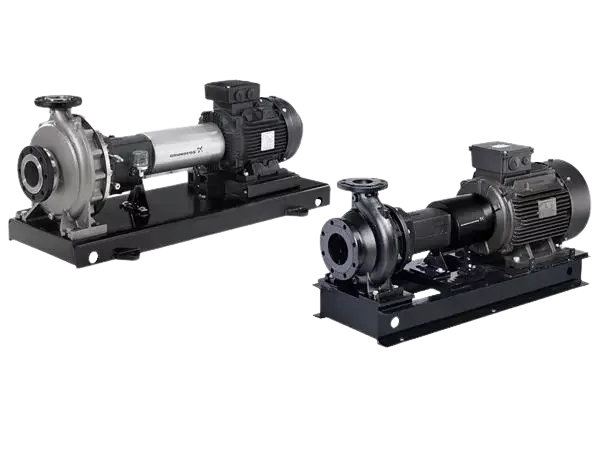

NK, NKE, NKE SERIES 2000, NK BARE SHAFT

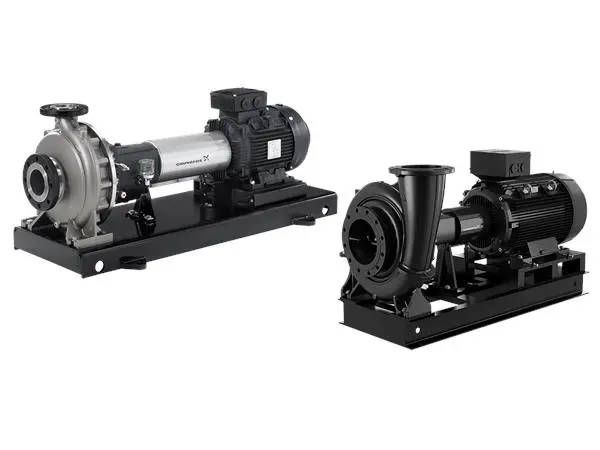

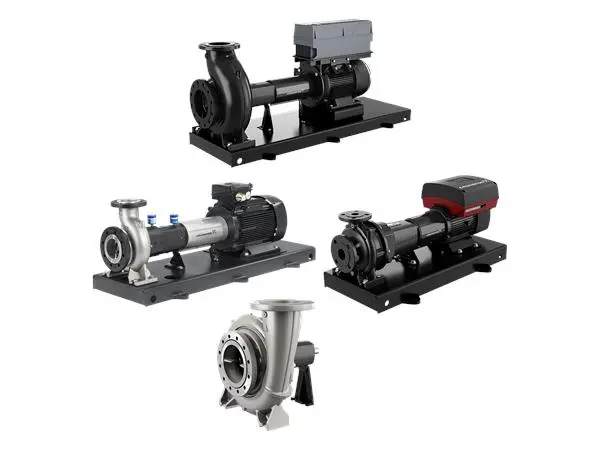

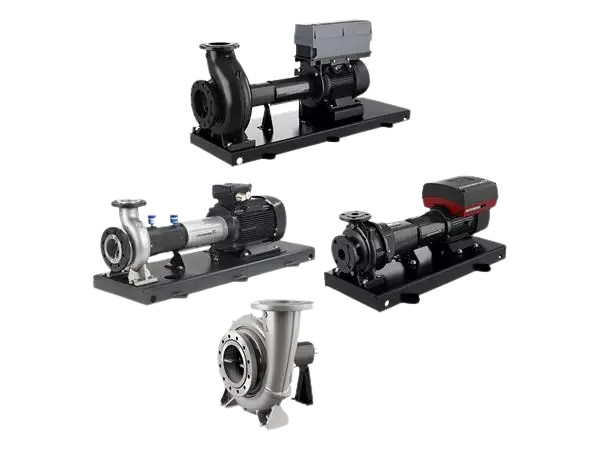

NKG, NKGE, NKG BARE SHAFT

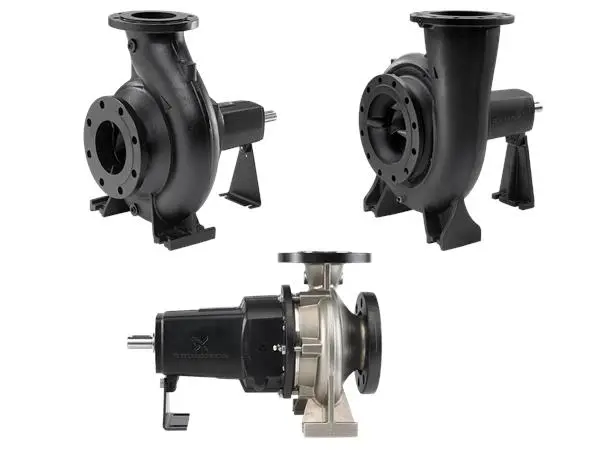

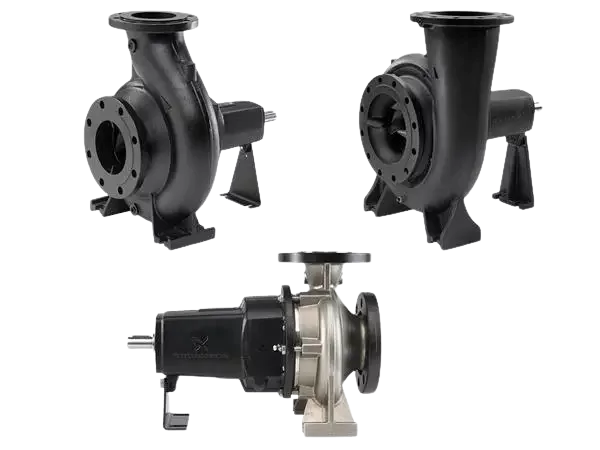

NK BARE SHAFT

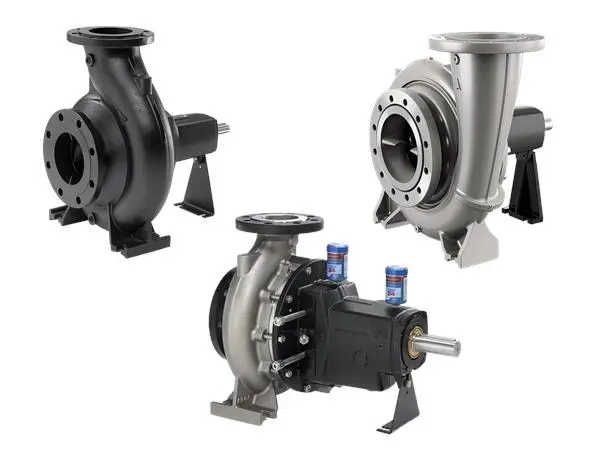

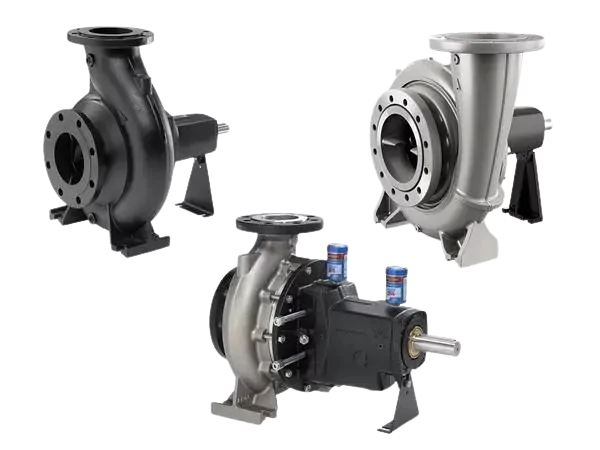

NKG BARE SHAFT

PUMP

Principle of Operation

In an end suction centrifugal pump, liquid is pumped inside and its velocity increases as it moves along the vanes of the impeller. Liquid is then forced to the tips of the impeller and into the volute casing. This diffusion process converts the high velocity in the liquid into high pressure.

End suction pumps come in two configurations: close coupled (where the impeller attaches directly to the motor shaft without the need for separate coupling between them) and long-coupled (where the pump has its own earing, and a coupling separates the motor and pump).
