If you need a pump that delivers power and reliability with low running costs, look no further. The LS horizontal split-case pump range delivers high pump efficiencies throughout the range and low life-cycle costs, thanks to its robust hydraulic design and service-friendly split-case housing. These horizontal split case pumps also have low noise levels and are designed to work in a variety of applications, including public water supply, district cooling and HVAC systems.

industrial

Know more about GRUNDFOS
HORIZONTAL SPLIT CASE Series

Design Advantages
  • High energy efficiency and low life cycle costs
  • Double suction minimises axial load, extending seal and bearing life
  • Double Volute Design for increased efficiency
  • Ease of maintenance with fewer bearings, removable casing
  • Various suction orientations - flexibility in station arrangement
  • Mechanically stable at variable speeds
Available Options

We customise pumps according to your specific application. Get in touch with us today to get a complete list of your options.



  • Materials options
  • Shaft options
  • Accessories and spare parts
  • Baseplate/mounting
Key Specifications

MODELS

MAX FLOW

MAX HEAD

LIQUID TEMP

MAX PRESSURE

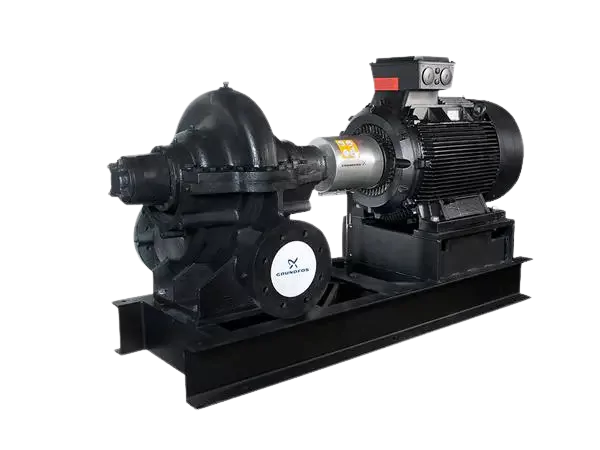

LS

66 m³/h

66 m

0 .. 100 °C

25 bar

Applications
  • Commercial air conditioning
  • Commercial heating
  • Commercial hot water recirculation
  • Commercial water pressure boosting
  • District cooling
  • District heating
  • Drinking water treatment
  • Irrigation
  • Cooling
  • Desalination
  • Industrial heating
  • Process liquids transfer
  • Industrial process water treatment
  • Surface water intake
  • Water distribution

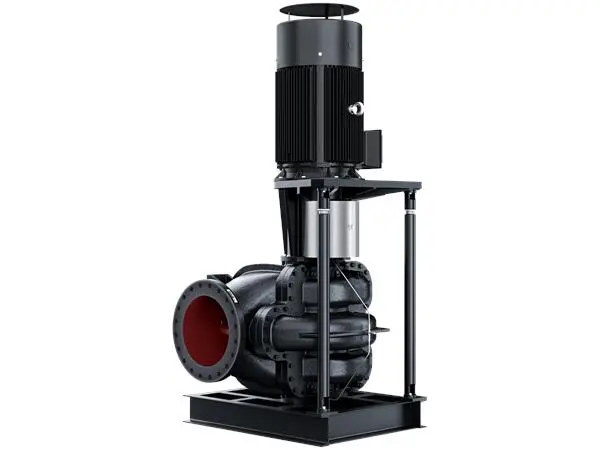

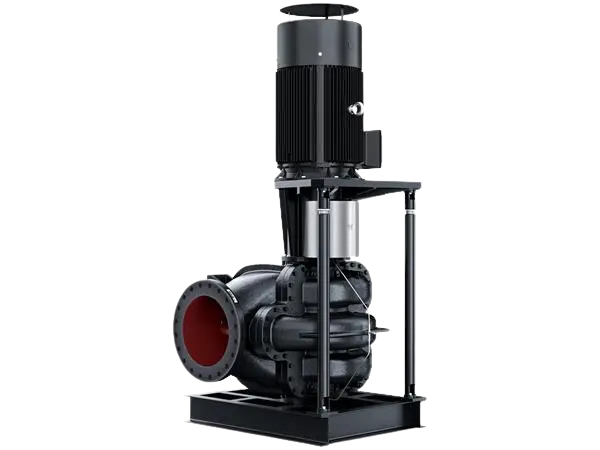

lsv
PUMP

Principle of Operation

Split case horizontal pumps are designed with casings that come apart. The design allows for the top part of the case to be removed without disturbing the driver or associated piping. This allows for quick and easy inspection and repair of the rotor as needed. Split case horizontal pumps are usually axially-split. That is, the flange where the case splits is in the plane as the pump axis. As for the operation, they follow the conventional centrifugal pump principle where fluid enters into the impeller eye and is cast out by centrifugal force along its circumference through the impeller’s vane tips. The action of the impeller increases the fluid’s velocity and pressure and directs it towards the pump outlet.
