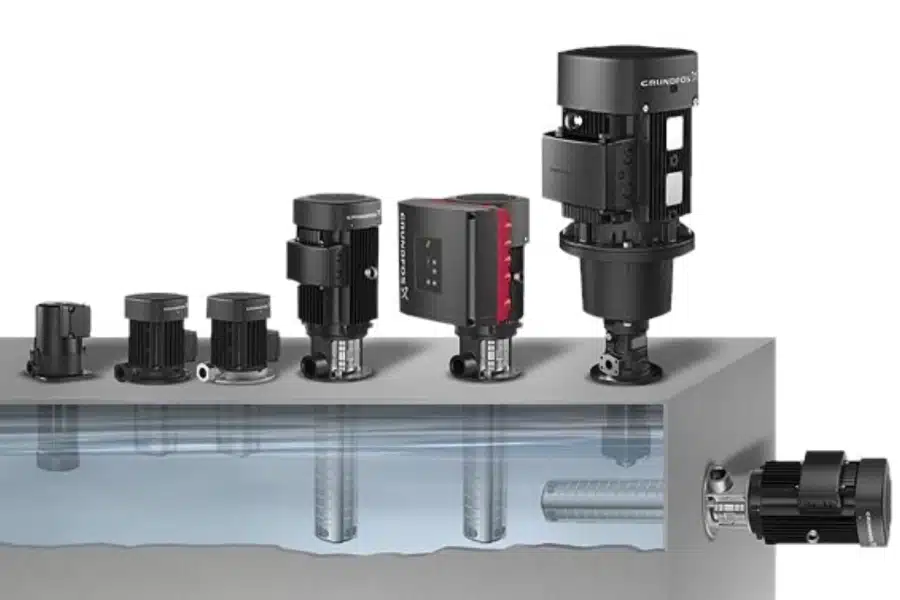

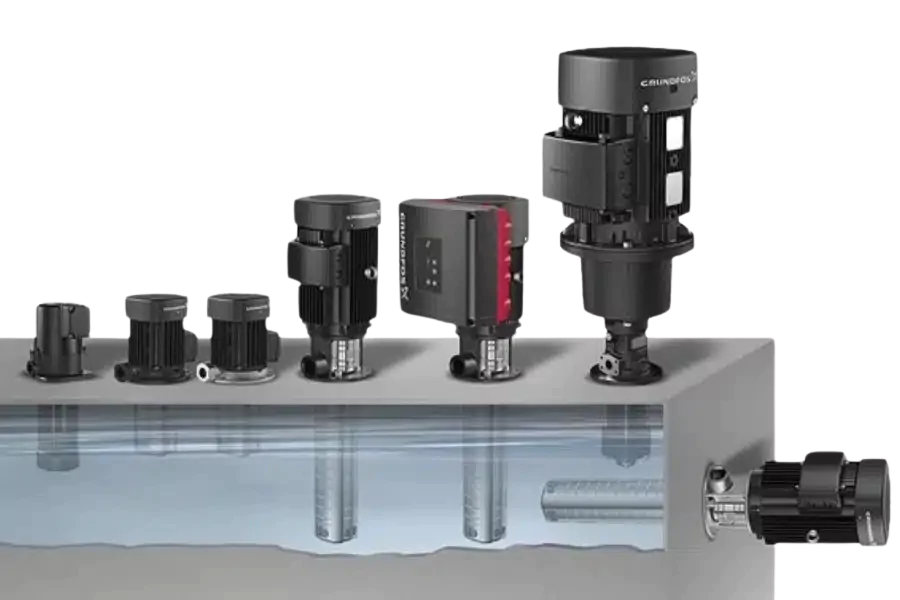

Grundfos offers a wide range of immersible pumps that are reliable, economical, and efficient. The range features the MTR, MTH, MTA and MTD series of vertical multi-stage centrifugal pumps and the MTS series feature screw pumps. These pumps can be designed and manufactured specifically for use in corrosive and aggressive situations and are made in a range of materials including stainless steel and cast iron. They can adapt to all difficult conditions to achieve the best results regarding performance, energy efficiency, and low life-cycle costs.

KNOW MORE ABOUT GRUNDFOS

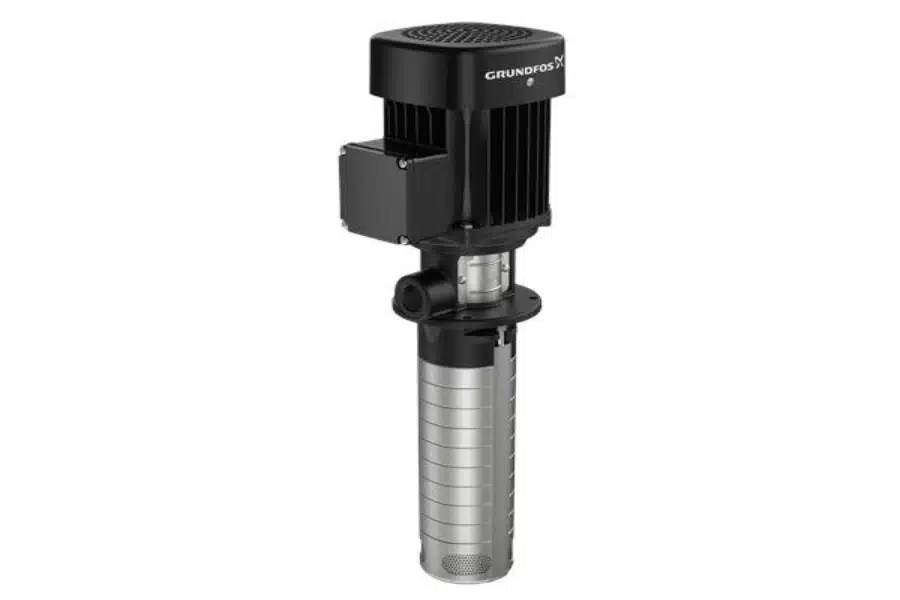

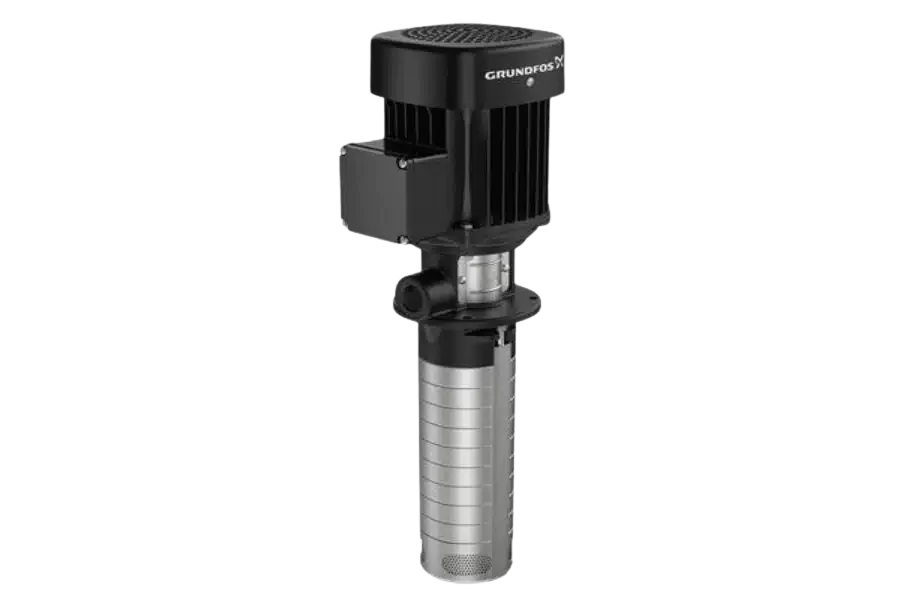

IMMERSIBLE SERIES

Grundfos offers a wide range of immersible pumps that are reliable, economical, and efficient. Talk to Experts

Design Advantages

  • Flexible installation length and great reliability
  • The motor is easily removable for repair or maintenance
  • Immersible bearing frame absorbs the hydraulic loading
  • Bearing frames are highly protected against water infiltration
  • Capable of submergence up to 30 feet for up to two weeks
  • No jackets that may clog and require periodic maintenance and inspection

Available Options

We customise pumps according to your specific application. Get in touch with us today to get a complete list of your options.

  • Materials options
  • Sealing options
  • Accessories and spare parts
  • Baseplate/mounting

Key Specifications

PUMP SERIES MAX FLOW MAX HEAD LIQUID TEMP MOTOR
MTR 102 m³/h 300 m -10 °C to +90 °C 0.37-22 kW
MTRE 102 m³/h 300 m -10 °C to +90 °C 0.37-22 kW
MTA 25 m³/h 15 m 0 °C to +60 °C 0.1-0.75 kW
MTD 25 m³/h 63 m 0 °C to +60 °C 1.5-4 kW
MTH 25 m³/h 100 m 10 °C to +90 °C 0.55-4 kW
MTS 64.5 m³/h 100 bar 0 °C to +80 °C 1.5-200 kW
MTSE 6.9 m³/h 100 bar 0 °C to +80 °C 1.5-11 kW

Applications

  • Cooling lubricants and cutting oil for machine tools, grinding machines, machining centres
  • Condensate transfer
  • Filter pumps
  • Other industrial liquid transfer applications where submersible pumps are not suitable

OUR RANGE OF AVAILABLE IMMERSIBLE PUMPS

Talk to Experts
Abaque Peristaltic Hose Pump HD100 model

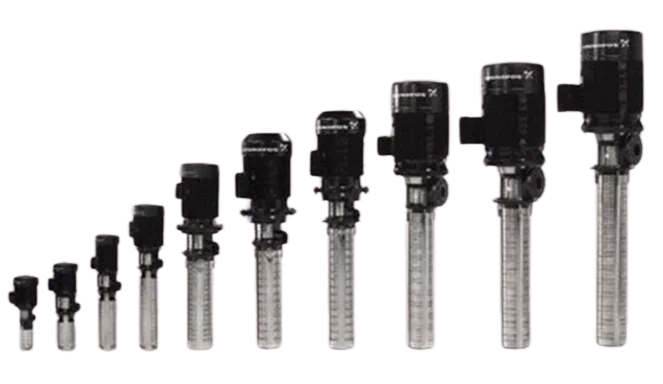

MTR

Abaque Peristaltic Hose Pump HD100 model

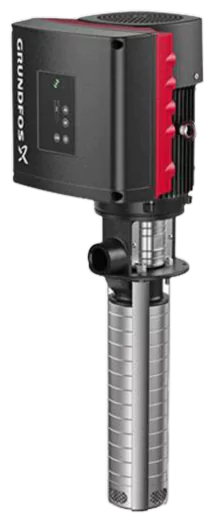

MTRE

Abaque Peristaltic Hose Pump HD100 model

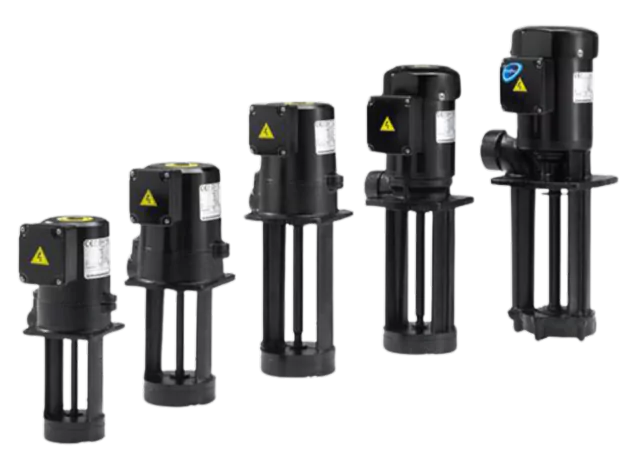

MTA

Abaque Peristaltic Hose Pump HD100 model

MTD

Abaque Peristaltic Hose Pump HD100 model

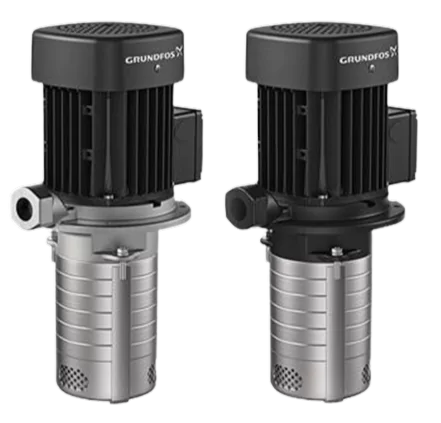

MTH

Abaque Peristaltic Hose Pump HD100 model

MTS

Abaque Peristaltic Hose Pump HD100 model

MTSE

PRINCIPLE OF OPERATION

Grundfos submersible and immersible pumps are centrifugal in type and are widely used for handling water from an underground or any below the surface source. Unlike normal above ground pump, submersible pumps must be submerged totally with its sealed motor into the water. Meanwwhile, immersible pumps are mounted in vertical position with the motor above the liquid and the pump end extended below the liquid level.
Before the pumping begins, the pump must be filled with fluid to start priming. After starting on the system, the impeller is rotated by the motor. Running in a high speed, water transferred is likewise rotated. Under centrifugal force, water is thrown far away from impeller, moving to the tip of the vanes until it falls to the volute. With added pressure, the fluid now flows out through the outlet. At that time, vacuum low pressure zone is formed in the center of impeller, causing fluid to flow continuously.
