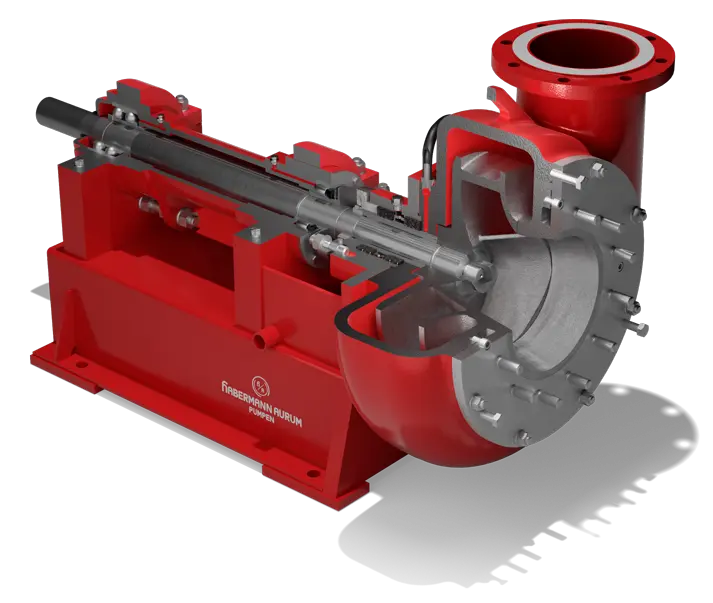

KB Series

The Habermann KB, KBH, KBK, and KBKM Series pumps are highly versatile, serving both as feed and drainage pumps. Their compact design, combined with exceptional wear and corrosion resistance, makes them suitable for a wide range of applications, from tunnel construction and dredging to specialized civil engineering projects.

The thick, robust casing ensures the KB pumps can withstand continuous exposure to small solid particles and abrasive impacts from handling large volumes of coarse solids. An exterior protective coating further enhances their durability against abrasion.

Features & Benefits

Know more about the features & benefits of using Habermann Aurum Pumpen KB Series

Low installation heights, highly wear-resistant materials and shaft seals through a relief impeller or Habermann’s HGD mechanical seal ensure safe operation
Easy maintenance, simple suction gap adjustment, and heavily dimensioned closed impellers, housings, and wear plates
Thickened pump walls provide exceptional resistance to high-impact loads and liquids containing coarse grains.

Available Options

We customise pumps according to your specific application. Get in touch with us to know your options.

Pressure ports ND 100, 125, 150 and 200 are available for a wide variety of applications
Spare parts and accessories

Key Specifications

Here are the key specifications of Habermann Aurum Pumpen KB Series

Flow rate: up to 5000 m3/h
Discharge head, single stage: up to 85 m.fl.s
Pump speed: up to 1495 RPM
Connection size: 100-400
Max. operating pressure: 16 bars
Temperature of the liquid: up to 90 °C
Corrosion resistance at PH: 3-14

Applications

Here is a list of industrial applications for which Habermann Aurum Pumpen KB Series are commonly utilized.

Sand and gravel
Energy industry
Steel industry
Processing and mining
Sugar industry
Construction
Tunnelling
Special foundation engineering
