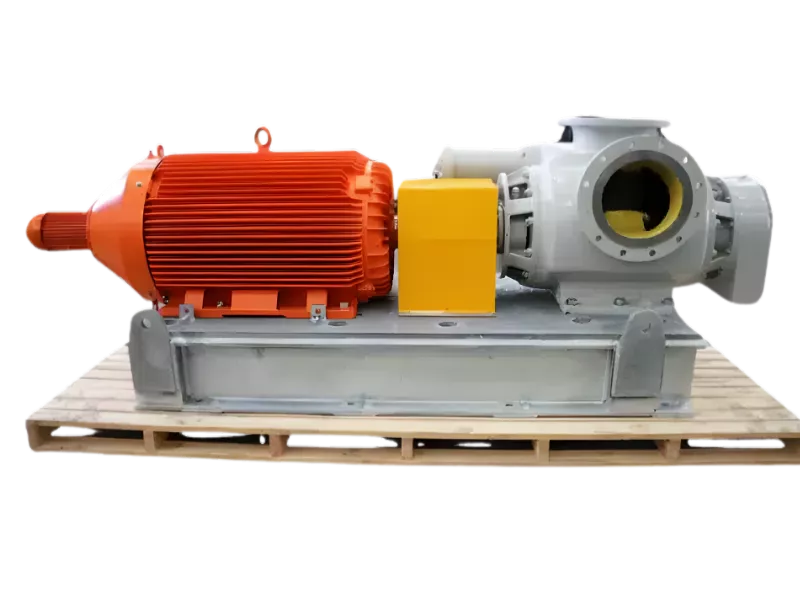

MAAG S Series — Twin Screw Pumps

MAAG Pump Logo
The MAAG S Series twin screw pumps provide outstanding performance in the most demanding fluid transfer challenges. Their design offers a constant smooth flow and complete axial balancing of the rotating elements while eliminating all metal-to-metal contact within the pump. They can handle virtually any non-homogeneous fluid, regardless of viscosity, abrasiveness, or lubricity. The Twin Screw S Series is available in 3 distinct lines – WTG (with timing gear), NTG (non-timing gear), Multi-phase – and 2 design configurations – single or double suction.

KNOW MORE ABOUT MAAG S Series — Twin Screw Pumps

  • MAAG S Series Twin Screw pump
  • MAAG S Series Twin Screw pump
  • MAAG S Series Twin Screw pump
Download Brochure

Design Advantages

  • Higher volumetric efficiency due to the unique profile of screw flanks
  • Includes relief valve for overload protection
  • Versatility with different flow rates, pressures, liquid types and viscosities
  • Consistent flow rate regardless of pressure or viscosity
  • Rigid parts translate to longer life and maintenance intervals
  • No fluid agitation

Available Options

We customise pumps according to your specific application. Get in touch with us today to get a complete list of your options.

  • With timing gear, no timing gear, multi-phase configurations
  • Material options for casing, shaft, and screws
  • EX and CE-certified models available
  • Spare parts
  • Baseplate/mounting

Key Specifications

  • Capacity: Up to 2500 m3/hr
  • Diff. Pressure: Up to 900 psi
  • Viscosity: Up to 200,000 mm2/s (cSt)

Applications

  • Chemicals
  • Caustics
  • Adhesives
  • Food and beverage
  • Soap
  • Petrochemicals
  • Acids
  • Polymers
  • Crude oil
  • Asphalt
  • Diesel
  • Seawater
  • Lube oil
  • Kerosene
  • Oilfields
  • Residuals
  • Bulk transfer
  • Loading/unloading
  • Terminals
  • Shipping
  • Bilge and ballast
  • Fire-suppression

MAAG S SERIES TWIN SCREW PUMP MODELS & PERFORMANCE

WTG SERIES – TWIN SCREW PUMPS WITH TIMING GEARS

MODEL CAPACITY (m3/hr) DIFF. PRESSURE (psi) VISCOSITY mm2/s (cSt)
2HM/2VM 2-2500 Up to 360 0.5-200,000
2HR/2VR 2-2500 Up to 600 0.5-200,000
2HE/2VE 2-2500 Up to 360 20-3000
2HH 10-1000 Up to 900 1-10,000
2HC 35-750 Up to 230 1-10,000
2H 1-40 Up to 230 1-100,000

NTG – NON-TIMING GEARS TWIN SCREW PUMPS

MODEL CAPACITY (m3/hr) DIFF. PRESSURE (psi) VISCOSITY mm2/s (cSt)
2LE/2KE 1-480 230 ≤3,000
2LA/2KA 1-480 230 ≤200,000

III- MULTI-PHASE TWIN SCREW PUMPS

MODEL CAPACITY (m3/hr) DIFF. PRESSURE (psi)
2MPS...B 30-1,500 up to 430
2MPS...H 30-1,000 up to 520
2MP 30-800 up to 870

PRINCIPLE OF OPERATION

The MAAG Twin Screw Pumps function on the principle of positive displacement. A set of two spindles inside a closed compartment helps pull the liquid from the suction side of the pump as they rotate in opposite directions. A small gap is maintained between the casing inside the compartment and the rotating spindles. The spindles are fitted with timing gears at their ends. Besides these, a motor is used to start these pumps. The spindles pull the liquid towards the centre while maintaining a perfect hydraulic balance. In this way, the fluid efficiently passes towards the discharge end of the pumps.
