ProMinent Hydraulic Diaphragm Metering Pumps

Prominent Dosing Pump Logo
ProMinent’s hydraulic diaphragm metering pump range boasts precise dosing and minimal maintenance. All pumps in this group are equipped with a pressure relief valve to protect against overload. They also have a multi-layer diaphragm with a rupture warning system to ensure operator safety, mitigate critical downtime, and prevent the feed chemicals from mixing with the hydraulic oil. Another selling point of ProMinent hydraulic diaphragm metering pumps includes the sealless, no-leak design, which makes them suitable for handling hazardous chemicals and other challenging fluids.

KNOW MORE ABOUT ProMinent Hydraulic Diaphragm Metering Pumps

  • ProMinent HYDRAULIC DIAPHRAGM METERING PUMPS
  • hydraulic diaphragm metering pump orlita-mh
  • hydraulic diaphragm metering pump orlita evolution
  • hydraulic diaphragm metering pump orlita evolution mikro

Key Features & Benefits

  • Advanced, safe, and leak-free hydraulic system design
  • Metering accuracy is better than ±0.5% to ±1%
  • Flow rate can be adjusted both in the running and stop states
  • Operates safely even without a medium in the pump head
  • Noise-free, small size, simple operation, and convenient maintenance

Available Options

  • Wetted materials options
  • Drive options
  • Control options
  • Customised design available
  • Spare parts kit
  • Mounting options

We customise pumps according to your specific application. Get in touch with us today to get a complete list of your options.

Key Specifications

  • Capacity: Up to 7400 l/h
  • Pressure: Up to 300 MPa

Applications

  • Oil and gas production (onshore/offshore)
  • Refineries
  • Chemical and petrochemical industry
  • Pharmaceuticals & cosmetics
  • Food production
  • Packaging industry (bottling pumps)

OUR RANGE OF AVAILABLE ProMinent Hydraulic Diaphragm Metering Pumps

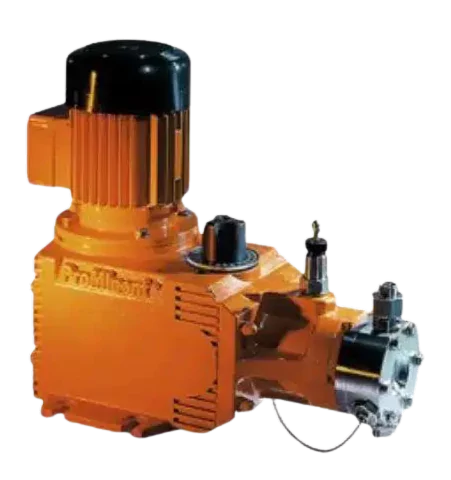

hydraulic diaphragm metering pump hydro classic
Hydraulic diaphragm metering pump
 HYDRO Classic

Capacity: Up to 1450 l/h
Pressure: Up to 10 MPa

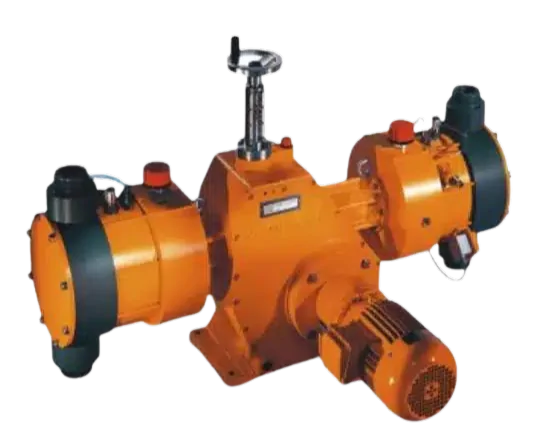

Hydraulic Diaphragm Metering Pump Makro/5
Hydraulic diaphragm metering pump
Makro/5

Capacity: Up to 6108 l/h
Pressure: Up to 2.5 MPa

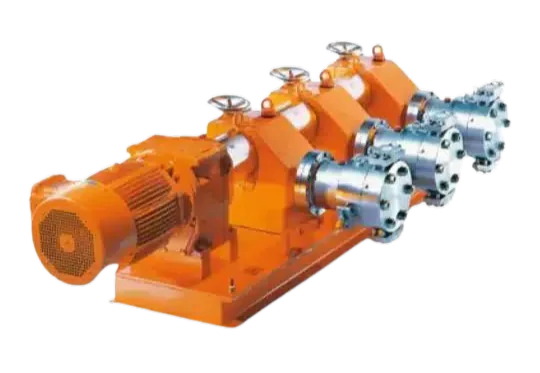

Hydraulic Diaphragm Metering Pump ORLITA MF
Hydraulic diaphragm metering pump
ORLITA MF

Capacity: Up to 1400 l/h
Pressure: Up to 45 MPa

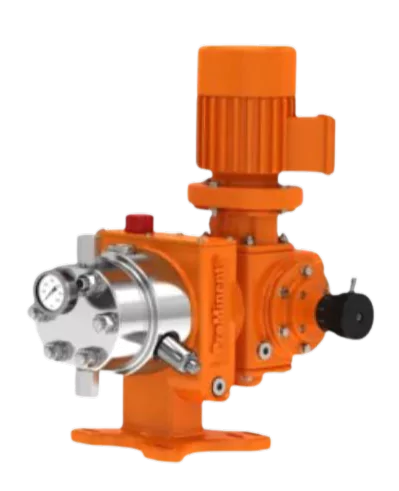

Hydraulic Diaphragm Metering Pump ORLITA EVOLUTION
Hydraulic diaphragm metering pump
ORLITA EVOLUTION

Capacity: Up to 7400 l/h
Pressure: Up to 40 MPa

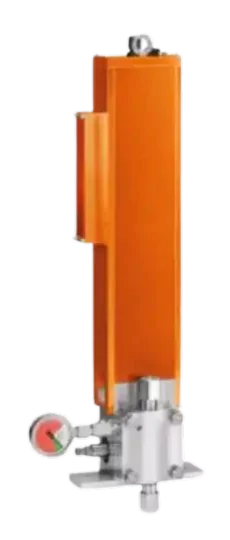

Hydraulic Diaphragm Metering Pump ORLITA MIKRO
Hydraulic diaphragm metering pump
ORLITA MIKRO

Capacity: Up to 18 l/h
Pressure: Up to 40 MPa

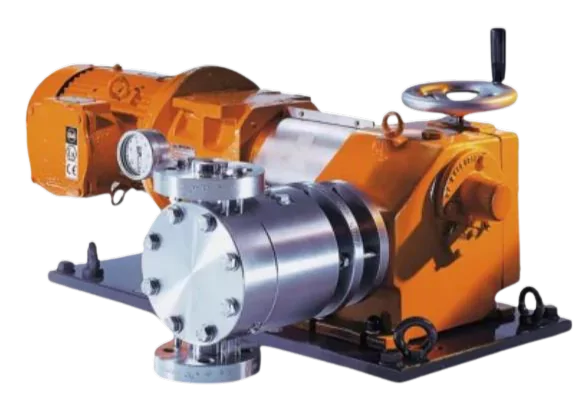

Hydraulic Diaphragm Metering Pump ORLITA MH
Hydraulic diaphragm metering pump
ORLITA MH

Capacity: Up to 320 l/h
Pressure: Up to 78 MPa

Hydraulic Diaphragm Metering Pump ORLITA MHHP
Hydraulic diaphragm metering pump
ORLITA MHHP

Capacity: Up to 11 l/h
Pressure: Up to 300 MPa

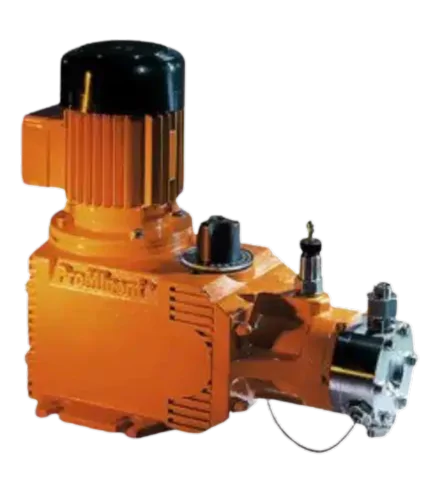

hydraulic diaphragm metering pump hydro classic
Hydraulic diaphragm metering pump
HYDRO API

Capacity: Up to 1506 l/h
Pressure: Up to 10 MPa

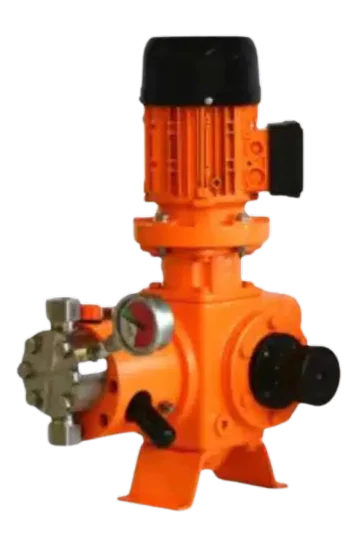

Hydraulic Diaphragm Metering Pump ORLITA EVOLUTION E1Sa
Hydraulic diaphragm metering pump
ORLITA EVOLUTION E1Sa

Capacity: Up to 122 l/h
Pressure: Up to 26 MPa

PRINCIPLE OF OPERATION

Dosing or metering pumps consistently and accurately deliver sets of volume into a process. They are usually positive displacement types—in the case of this series, a hydraulic diaphragm pump—to ensure that accurate volumes are dosed regardless of the pressure of the line they are injecting into. Hydraulic diaphragm pumps transmit power using operating oil filled between a diaphragm and a piston that serves as the drive source.

Metering pumps can be controlled in various ways, from rotation speed to stroke length within a solenoid metering design or via relay or timer—for this series, a solenoid.

OUR RANGE OF AVAILABLE PROMINENT METERING PUMPS

Prominent DIAPHRAGM METERING PUMPSDIAPHRAGM
METERING PUMPS
Capacity: Up to 2100 l/h
Pressure: Up to 2.5 MPa
ProMinent HYDRAULIC DIAPHRAGM METERING PUMPSHYDRAULIC DIAPHRAGM
METERING PUMPS
Capacity: Up to 7400 l/h
Pressure: Up to 300 MPa
Prominent PLUNGER METERING PUMPSPLUNGER
METERING PUMPS
Capacity: Up to 6014 l/h
Pressure: Up to 60 MPa
Prominent PERISTALTIC METERING PUMPSPERISTALTIC
METERING PUMPS
Capacity: Up to 410 l/h
Pressure: Up to 0.8 MPa
