Regent’s Din Centrifugal Pumps

Regent’s Din Centrifugal Pumps

The Regent Dinflow features singlestage endsuction centrifugal pumps. They offer high performance at an economical cost and are particularly suited to mechanical and fire services. Their volute casing is fitted with a replaceable wear ring and is designed to provide a smooth flow into the impeller. The Regent Dinflow pumps are engineered to the stringent International Standard EN733 ( formerly 24255), making them interchangeable with other dimensionally similar pumps.

industrial

Know more about Regent
Din Centrifugal Series

Design Advantages
  • Back Pull-Out construction for ease of maintenance
  • Rugged construction using durable and high-quality materials
  • Higher operating pressures and flow rates
  • Five bearing housings for interchangeability
  • Hydraulically balanced double shrouded impeller
  • Fully machined hook type shaft sleeve minimises shaft damage
Available Options

We customise pumps according to your specific application. Get in touch with us today to get a complete list of your options.



  • 46 models to suit specific applications
  • Material options
  • Seal options
  • Accessories and spare parts
  • Baseplate/mounting
Key Specifications

SERIES/RANGE

DINFLOW

DINBLOC

LINEBLOC

MAX FLOW

1350 m3/h

MAX HEAD

145 m

MAX OPERATING PRESSURE

1600kPa

TEMPERATURE RANGE

With standard packed gland: -10˚C

to 105˚C.

With cooled stuffing

box: 160˚C

With mechanical seal:

depends upon seal fitted.

With standard packed gland: -20˚C to 100˚C. Mechanical Seals are

available for applications outside these

limits.

With standard Mechanical Seal: -20˚C to 100˚C.

MAX SPEED

1800 – 3600 RPM

Applications
  • Liquid Transfer
  • Air Conditioning
  • Refrigeration
  • Fire Protection
  • Drainage
  • Irrigation
  • Factory Water
  • General Industry
  • Petroleum Products
  • Water Treatment and Supply
  • Wastewater and Effluent
DIN (1)
INDUSTRIAL

Our range of available
Din Centrifugal pumps

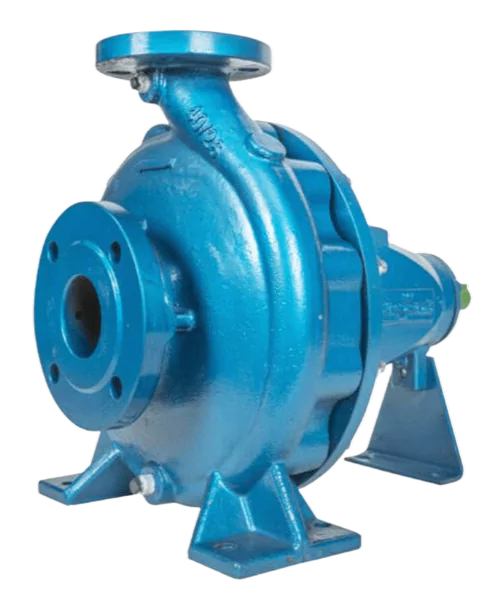

DINFLOW

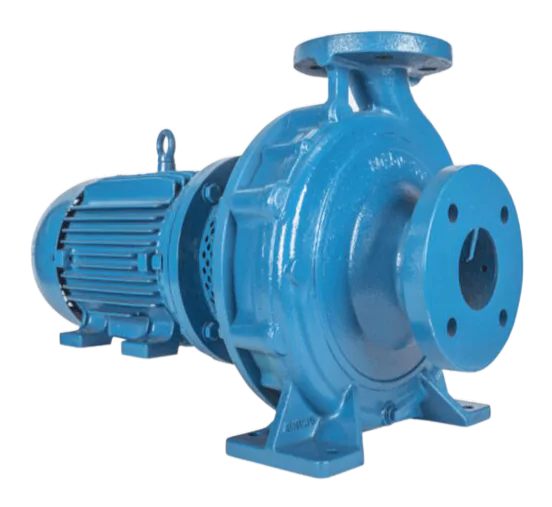

DINBLOC

LINEBLOC

PUMP

Principle of Operation

Centrifugal pumps are able to move fluid by rotating an impeller inside the casing using a motor. As the impeller rotates, fluid is drawn into the pump and hits the impeller eye. The impeller then accelerates the fluid, imparting kinetic energy. This forces the fluid to the tips of the impeller vanes. Upon reaching the edge of the impeller, fluid falls into the casing, which causes the fluid to decelerate and gain higher pressure (fluid velocity is converted to pressure). Fluid is then pushed out of the discharge nozzle and out into the pipes.
