Sulzer Drainage Pump: Centre-Line

Sulzer’s complete range of submersible dewatering pumps meets the most challenging applications in various industries. With over 50 years of technical expertise and real-world experience, these pumps are your best insurance against unexpected downtime.

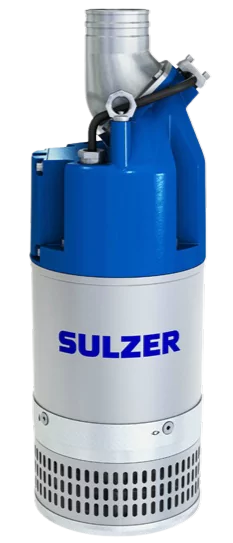

The JC and XJC Series of submersible drainage centre-line pumps are made to handle water and dirty water carrying light abrasives. Their slim design contributes to their mobility and makes them ideal for applications with limited installation spaces.

Features & Benefits

Know more about the features & benefits of using Sulzer Drainage Pump: Centre-Line.

Wear-resistant white cast iron impellers
Fail-safe start and restart
Convertible and flexible units

JC 34

XJC 50

XJC 80

XJC 110

Principle of Operation

Sulzer dewatering pumps are submersible centrifugal in type and are used to remove water collected in construction sites, tunnels, and mines. They suck the dirty water – which is circulated in the casing by the impeller – and later discharged to a wellpoint system or open sump. Depending on the type of water, a dewatering pump may use strainers to remove abrasives from the groundwater before being processed. A dewatering sludge pump, on the other hand, is used for moving thick, viscous fluids.

Free Downloads

Sulzer Dewatering Pump Brochure

OUR RANGE OF AVAILABLE Sulzer Drainage Pump: Centre-Line

Talk to Experts

JC 34

XJC 50

XJC 80

XJC 110

    Model (50 Hz)
    JC 34
    XJC 50
    XJC 80
    XJC 110



    Capacity
    16
    35
    52
    54


    Pressure Head (m)
    35
    45
    76
    52


    Weight
    31 kg
    59 kg
    63 kg
    80 kg


    AquaTronic
    No
    Yes
    Yes
    Yes





Model (50 Hz)	JC 34	XJC 50	XJC 80	XJC 110
Capacity	16	35	52	54
Pressure Head (m)	35	45	76	52
Weight	31 kg	59 kg	63 kg	80 kg
AquaTronic	No	Yes	Yes	Yes

KEY BENEFITS OF THE AQUATRONIC UNIT

Correction of motor rotation if phases are improperly connected
Run mode (no panel needed)
Integrated start equipment (direct or soft start depending on pump model)
Motor protection against high temperature, high amperage and missing phase
Anti-clog function

If the optional level sensor is installed the pump will also have the following:

Precise level control
Protection against dry running
Energy save mode (energy is saved through stopping at dry run and starting by level sensor)

An illustration about Sulzer AquaTronic built-in pump control system
