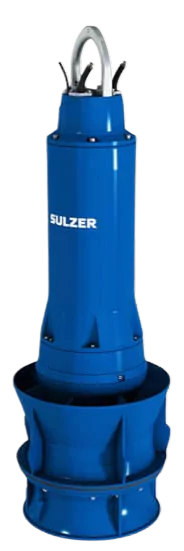

Sulzer ABS VUPX series of submersible pumps are designed to handle large volumes of stormwater. They can pump to heads up to 10 metres and have low NPSH characteristics. Compact in design, these submersible pumps are highly efficient, thanks to their three- or four-blade propellers.
KNOW MORE ABOUT SULZER SUBMERSIBLE PROPELLER PUMP: ABS VUPX
INDUSTRIAL SUBMERSIBLE PUMP
ABS VUPX Propeller Pump
Capacity up to 7000 lps Pressure head up to 10 m
Features & Benefits
Highly efficient three-or four-blade propellers
Adjustable blade and special skew-shaped propellers
Space-saving design
Key Specifications
Discharge Size: DN 600 to DN 1400
Pipe Diameter: 23 in – 55 in / 600 to 1,400 mm
Capacity: up to 7,000 l/s
Head: up to 10 m / 33 ft.
Motor Power: 9 to 650 kW
Applications
Stormwater protection, irrigation and aquaculture
Screened wastewater from commercial and industrial sources
Combined sewage and surface water
Return sludge or return activated sludge (RAS)
Wet wells, submerged with an automatic coupling system
Premium Efficiency IE3 motors in acc. with IEC60034-30
Class H (140°C / 284°F) insulation
NEMA class A up to 110 kW / 168 HP, above NEMA class B
Double silicon mechanical seal
Seal protection against spinning fibers
100 000 hours bearing life
Sealed cable connection chamber with two stage cable entry
Lifting hoop (stainless steel as option)
Condition monitoring (temperature, water ingress, option: vibration monitoring)
Explosion-proof version as option (ATEX, FM or CSA)
Planetary gearboxes, driven by four-pole motors, deliver higher efficiency and lower weight compared
PRINCIPLE OF OPERATION
Industrial Submersible Propeller Pump
The operation of submersible pumps is similar to that of electric submersible centrifugal pumps. An enclosed electric motor powers the pump as the fluid’s kinetic energy rises. The fluid is subsequently lifted through the pump by this energy’s partial conversion to pressure. The design uses a vertical shaft to rotate the impellers and pressurise fluid. Using mechanical seals is necessary to prevent the electric motor from malfunctioning as the entire unit is submerged in the fluid.
