Floway® Vertical Turbine Pumps

Trillium Flow Technologies

Floway® is a brand of Trillium Flow Technologies™, with over 90 years of expertise in designing industry-leading vertical turbine pumps. These pumps are trusted across a wide range of industries, including water and wastewater management, oil and gas, mining, energy, and other industrial applications.

Floway® pumps are built from highly durable materials that resist wear and corrosion, ensuring exceptional quality, reliable hydraulic performance, long service life, and low ownership costs. Designed by experienced professionals in a state-of-the-art facility in the USA, these vertical turbine pumps meet the highest industry standards, including API, HI, and NSF.

Applications

  • Process duties
  • Water and wastewater tailing
  • Dewatering
  • Potable water applications
  • Raw water intake
  • Reverse osmosis feed
  • Recycled water
  • Reclaimed water
  • Final effluent
  • Secondary water
  • Backwash water, brackish water, and aquifer storage in a sump (VS1) or barrel (VS6) design
Talk to our Experts
Floway® VFP Vertical Turbine Fire Protection Pump
Floway® VFP Vertical Turbine Fire Protection Pump
Floway-VFP-Vertical-Turbine-Fire-Protection-Pump
Floway® VHP API 610 Vertical Turbine Pump - 01
Floway® VSB Submersible Vertical Turbine Pump - 01
Floway® VTP General Vertical Turbine Pump - 01
Floway® VSB Submersible Vertical Turbine Pump - 07
Floway® VTSP Vertical Turbine Solids Pump - 06
previous arrow
next arrow
PlayPause
Exit full screenEnter Full screen

Floway® Pump Range

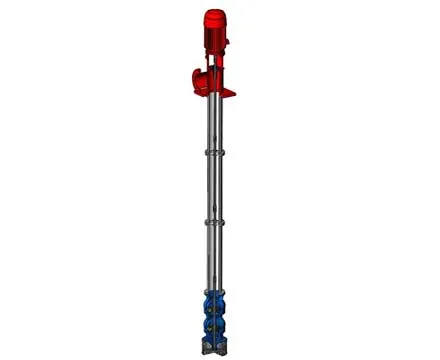

Floway® VFP Vertical Turbine Fire Protection Pump

VFP VERTICAL TURBINE Fire Protection Pump

Floway® fire pumps are designed to meet the National Fire Protection Association (NFPA) Standard NFPA-20, delivering reliable fire protection for your application. They can also be listed or approved by Underwriters’ Laboratories, Inc. (UL/C-UL) or Factory Mutual (FM), ensuring dependable performance in fire emergencies.

Features

  • Special Construction available
  • Stainless steel and special alloy line shaft and coupling
  • Flanged column sections
  • Can-type pumps (positive suction pressure)
  • Below-ground discharge head
  • Skid package option
  • Noise control engine enclosures
  • Alternate starting and cooling methods
  • Drivers, electric motors, diesel engines, and steam turbine options

Specifications

  • Pressure ratings: from 4.14 to 34.47 bar
  • Capacity ratings: labelled from 60-1140m³/hr
  • Greater than 15.24 m for oil-lubricated column and shaft assembly
Floway® VHP API 610 Vertical Turbine Pump - 01
Floway® VHP API 610 Vertical Turbine Pump - 02
Floway® VHP API 610 Vertical Turbine Pump - 03
Floway® VHP API 610 Vertical Turbine Pump - 04
Floway® VHP API 610 Vertical Turbine Pump - 05
Floway® VHP API 610 Vertical Turbine Pump - 06
Floway® VHP API 610 Vertical Turbine Pump - 07
previous arrow
next arrow
Floway® VHP API 610 Vertical Turbine Pump - 01
Floway® VHP API 610 Vertical Turbine Pump - 02
Floway® VHP API 610 Vertical Turbine Pump - 03
Floway® VHP API 610 Vertical Turbine Pump - 04
Floway® VHP API 610 Vertical Turbine Pump - 05
Floway® VHP API 610 Vertical Turbine Pump - 06
Floway® VHP API 610 Vertical Turbine Pump - 07
previous arrow
next arrow

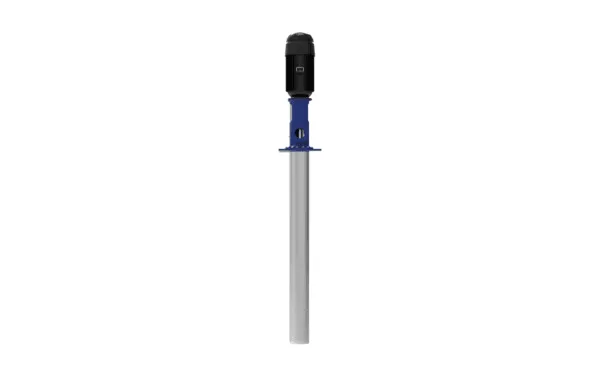

VHP API 610 Vertical Turbine Pump

Floway® VHP vertical close-coupled pumps are designed to meet the latest API 610 standard. Available in both single and multistage configurations, they feature a fabricated discharge head, a top-mounted motor, and options for wet pit (VS1) or closed suction (VS6) designs. Engineered for oil and gas applications, Floway® VHP pumps are renowned for their exceptional quality, minimal vibration, low maintenance requirements, and specialised design.

Advantages

  • Throttle bearing provides shaft support and allows higher operating pressures
  • Multi-vane bowl diffuser equalises radial hydraulic forces, reduces rotor loading and provides exceptional sleeve bearing life
  • Designed to withstand higher pressures with premium efficiencies and low operating costs
  • The “O” ring joints eliminate leaking for higher-pressure applications
  • Multi-staging in the medium specific speed range from 1,300 Ns through 5,000 Ns
  • Pressure and flow variations are achieved simply by changing number of stages or impeller type

Specifications

  • Capacity: Up to 8,000 m3/h

  • Pressure: Up to 200 bar

  • Temperature range: -90ºC to 220ºC

  • Sizes: 4-37 inches

Floway® VSB Submersible Vertical Turbine Pump - 01
Floway® VSB Submersible Vertical Turbine Pump - 02
Floway® VSB Submersible Vertical Turbine Pump - 03
Floway® VSB Submersible Vertical Turbine Pump - 04
Floway® VSB Submersible Vertical Turbine Pump - 05
Floway® VSB Submersible Vertical Turbine Pump - 06
Floway® VSB Submersible Vertical Turbine Pump - 07
previous arrow
next arrow
Floway® VSB Submersible Vertical Turbine Pump - 01
Floway® VSB Submersible Vertical Turbine Pump - 02
Floway® VSB Submersible Vertical Turbine Pump - 03
Floway® VSB Submersible Vertical Turbine Pump - 04
Floway® VSB Submersible Vertical Turbine Pump - 05
Floway® VSB Submersible Vertical Turbine Pump - 06
Floway® VSB Submersible Vertical Turbine Pump - 07

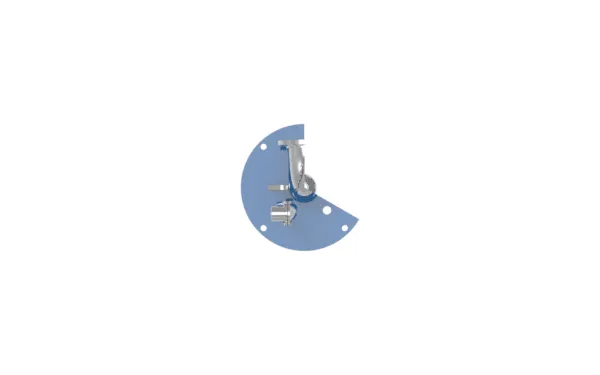

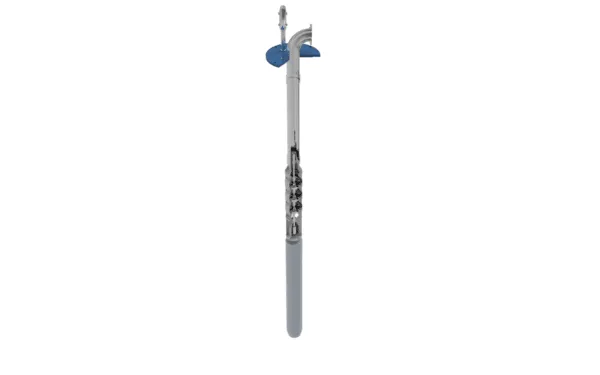

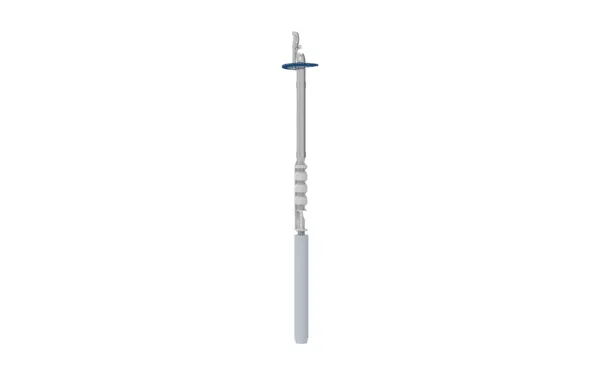

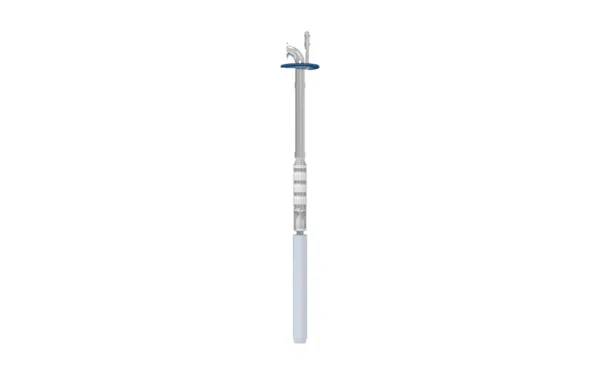

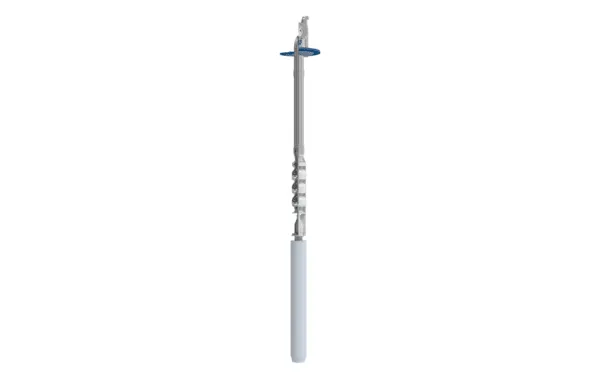

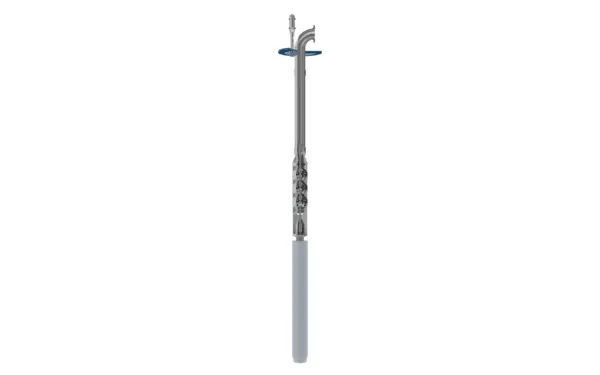

VSB Submersible Vertical Turbine Pump

The Floway® VSB (Vertical Submersible Pump) is a vertical close-coupled, single or multistage submersible motor pump designed for extremely deep well and booster systems. It is also ideal for installations with limited or no floor space, as well as applications where booster pumps must be placed directly in the pipeline, minimising excavation requirements.

Advantages

  • Compact connection between the pump and motor provides maximum shaft support

  • Flanged column option for ease of assembly

  • Internally mounted power cable eliminates potential hazards

  • Motor with water-tight insulated windings for enhanced cooling, extended life, and ease of maintenance

  • A wide range of bowl sizes is available to meet system compacity requirements

Specifications

  • Capacity: Up to 1590 m3 /hr

  • Pressure: Up to 52 bar

  • Settings: Up to 457 m

  • Sizes: 4-37 inches

  • Temperature: -40ºC to 80ºC

  • Liquid fluid with a specific gravity from .99 to 1.07

Floway® VTP General Vertical Turbine Pump - 01
Floway® VTP General Vertical Turbine Pump - 02
Floway® VTP General Vertical Turbine Pump - 03
Floway® VTP General Vertical Turbine Pump - 04
Floway® VTP General Vertical Turbine Pump - 05
Floway® VTP General Vertical Turbine Pump - 06
Floway® VTP General Vertical Turbine Pump - 07
previous arrow
next arrow
Floway® VTP General Vertical Turbine Pump - 01
Floway® VTP General Vertical Turbine Pump - 02
Floway® VTP General Vertical Turbine Pump - 03
Floway® VTP General Vertical Turbine Pump - 04
Floway® VTP General Vertical Turbine Pump - 05
Floway® VTP General Vertical Turbine Pump - 06
Floway® VTP General Vertical Turbine Pump - 07

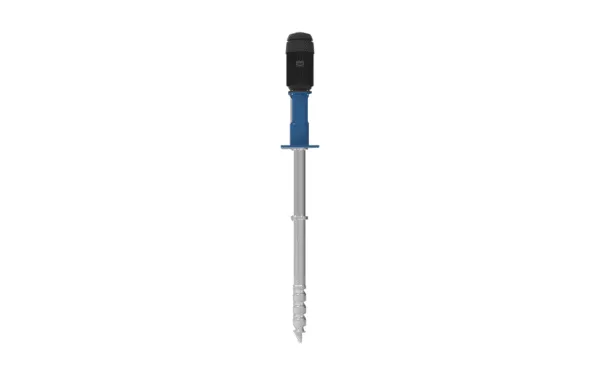

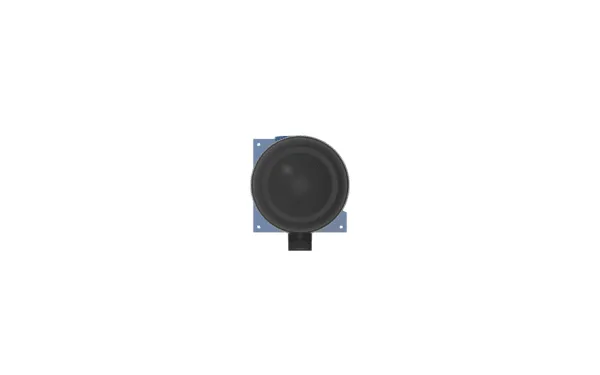

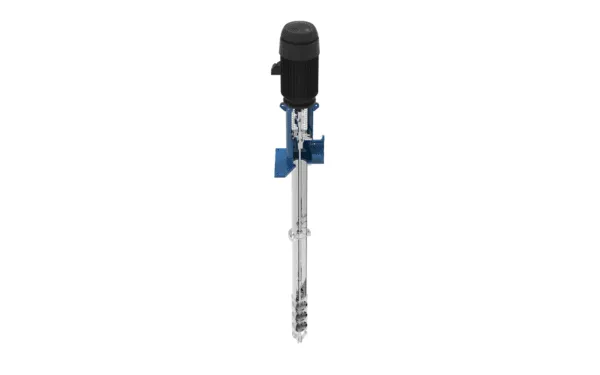

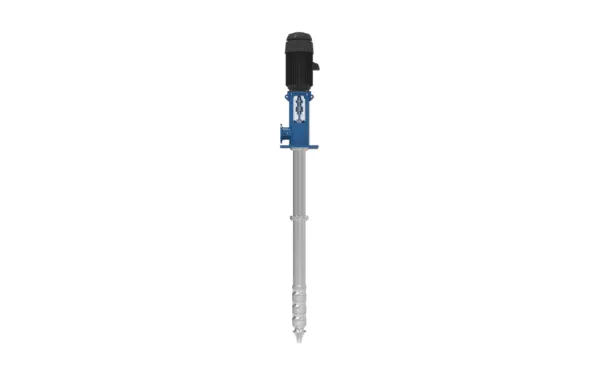

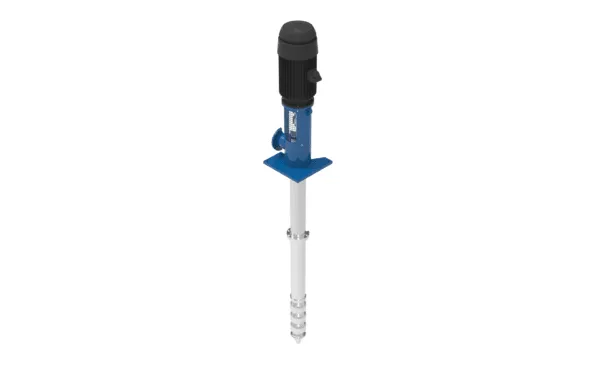

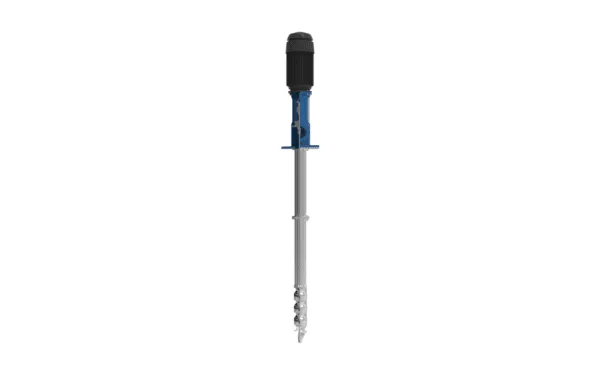

VTP General Vertical Turbine Pump

The Floway® VTP (Vertical Turbine Pump) is a vertical close-coupled turbine pump available in both single and multistage configurations. It features a cast or fabricated discharge head, a top-mounted motor, and can be designed for either closed suction or wet pit applications. Additionally, various material combinations are available to suit a wide range of applications.

Advantages

  • Requires small footprint
  • Multistage options provide hydraulic flexibility
  • High efficiencies on high-head applications
  • Low NPSHr
  • No need to prime
  • Simple piping system
  • High bearing and shaft life

Specifications

  • Capacity: Up to 8000 m3 /hr
  • Pressure: Up to 103 bar
  • Sizes: 4-37 inches
  • Temperature: -40ºC to 80ºC
Floway® VTSP Vertical Turbine Solids Pump - 01
Floway® VTSP Vertical Turbine Solids Pump - 02
Floway® VTSP Vertical Turbine Solids Pump - 03
Floway® VTSP Vertical Turbine Solids Pump - 04
Floway® VTSP Vertical Turbine Solids Pump - 05
Floway® VTSP Vertical Turbine Solids Pump - 06
Floway® VTSP Vertical Turbine Solids Pump - 07
previous arrow
next arrow
Floway® VTSP Vertical Turbine Solids Pump - 01
Floway® VTSP Vertical Turbine Solids Pump - 02
Floway® VTSP Vertical Turbine Solids Pump - 03
Floway® VTSP Vertical Turbine Solids Pump - 04
Floway® VTSP Vertical Turbine Solids Pump - 05
Floway® VTSP Vertical Turbine Solids Pump - 06
Floway® VTSP Vertical Turbine Solids Pump - 07

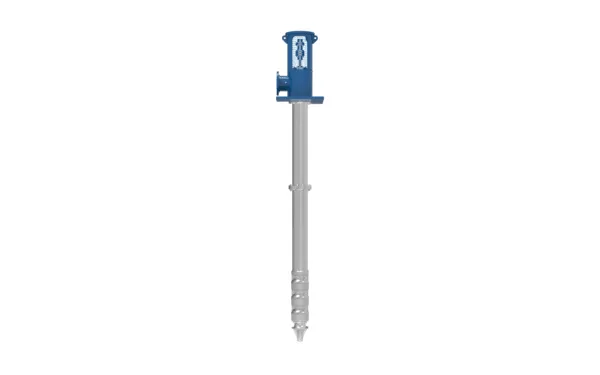

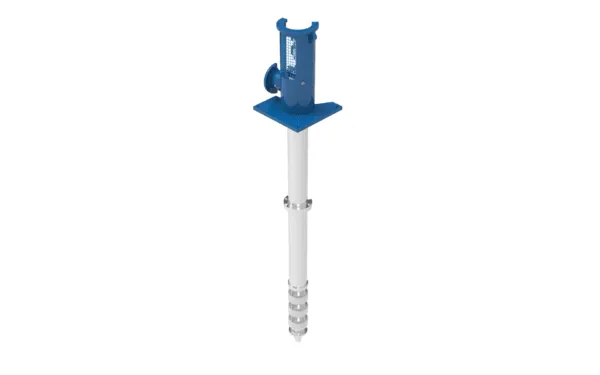

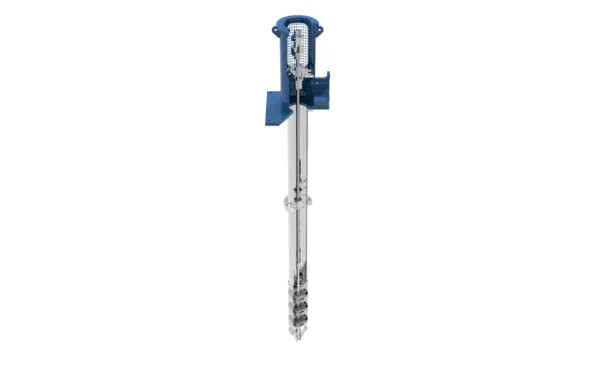

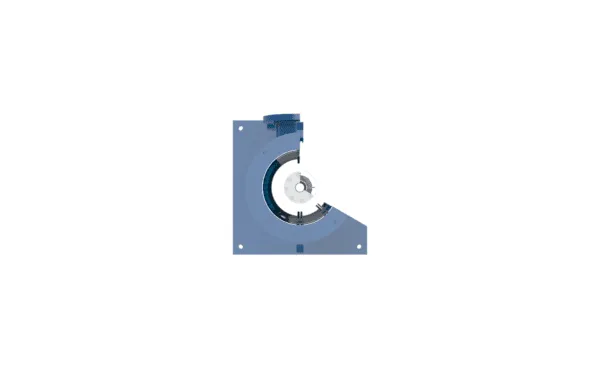

VTSP Vertical Turbine Solids Pump

The Floway® VTSP (Vertical Turbine Solids Pump) is a vertical close-coupled turbine pump available in both single-stage and multistage configurations. It features a cast or fabricated discharge head, a top-mounted motor, and can be configured as either a closed suction pump or a wet pit solids handling pump. Built from durable materials and equipped with a patented bearing design, the VTSP pump delivers an extended service life—up to four times longer than a standard vertical turbine solids pump.

Advantages

  • Semi-open adjustable impeller design accommodates solids and maintains performance without the need for disassembly
  • Hardened stainless steel impeller for increased abrasion resistance
  • Designed to handle solids up to 10% by weight while reducing wear, maintenance requirements, and total ownership cost
  • Innovative removable wear plate increases bowl wear life and prevents premature replacement

Specifications

  • Capacity: Up to 8000 m3 /hr
  • Pressure: Up to 35 bar
  • Sizes: 4-37 inches
  • Temperature: Up to 80ºC
