Gabbioneta API-610 TYPE: BB5 – TMP MODEL MESB – MESB-D

Trillium Flow Technologies

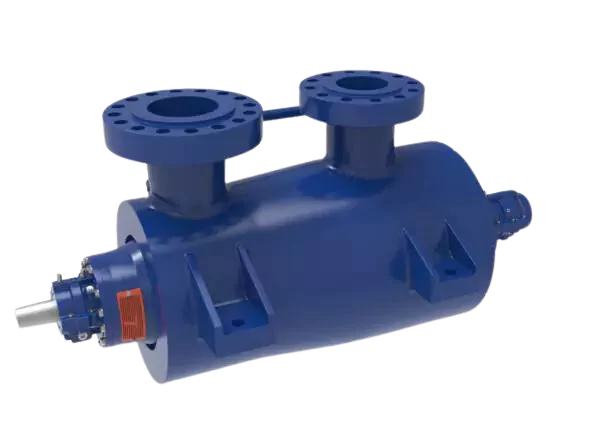

Our API 610 type BB5 pumps are double casing, radial split, multistage between bearing pumps (barrel pumps). The pump and motor are flexibly coupled and installed on a common baseplate. The back pull-out design allows the removal of the rotor assembly without disturbing the driver, coupling hubs or casing nozzle connections. The MESB has an inline impeller arrangement to minimise bearing span and provide a more compact design. The pump range is available with bolted or shear ring end cover arrangements.

All-Pumps is an exclusive industrial distributor of Gabbioneta Pumps® in Australia. Get in touch with our team for complete options.

KNOW MORE ABOUT GABBIONETA API-610 TYPE: BB5 – TMP MODEL MESB – MESB-D

GABBIONETA API-610 TYPE: BB5 – TMP MODEL MESB – MESB-D
GABBIONETA API 610 BB5 MESB
Download Brochure

Design Features

  • API 610 compliant
  • Integral case connections to avoid non-destructive testing
  • Heavy-duty shaft to minimize rotor defection and maximize uptime
  • API 682 compliant seal chamber
  • Single or double suction Impeller
  • Bolted or shear ring end cover arrangements.
  • Bearing housing leverages common parts across all Trillium Flow Technologies between bearings pumps
  • Balance line to ensure both seals remain at equal pressure
  • Inline impeller arrangement

Available Options

  • All API material options: S-4,S-5,S-6,S-8,C-6,A-8,D-1,D-2, plus bespoke options
  • Bolted or shear ring end cover arrangements
  • Composite wear parts for improved efficiency and rotor dynamics
  • Specialist options: high speed over 6000 RPM
  • Spare parts
  • Custom mounting/baseplate

Key Specifications

  • Capacity: Up to 3,000 m3/h
  • Head: Up to 7,000 m
  • Temperature: Up to 427°C
  • Speed of rotation: Up to 6,500 RPM

Applications

  • Water injection
  • Crude oil transmission
  • Boiler feed water
