The Chop-Flow pump is a reliable, cost-efficient way to chop and pump at the same time. Using impeller with ultra-sharp blade face and stationary cutter bar – both hardened to RC60 – this chopper pump can break down oversized solids, fibres, and other hard-to-pump materials several hundred times per minute.
Chop-Flow pumps are manufactured side by side with the renowned WEMCO® pumps and designed by the same engineers – making these chopper pumps as reliable as any WEMCO® pump. They are made using abrasion and corrosion-resistant materials and heavy-duty casting – making them highly durable and fit for extreme fluid handling applications in the wastewater, pulp and paper, food processing, and meat and poultry processing industries. With a common footprint to other chopper pumps, the Chop-Flow will bolt up to your existing piping and coupling.
All-Pumps is an exclusive industrial distributor of Trillium Chop-Flow pumps in Australia. Get in touch with our team for complete options.
“Wrap around nose-vanes” ensure complete chopping at the centre of the impeller even without an impeller nut
A one or two-piece, easily replaceable, stationary cutter bar that covers the entire suction opening for demanding chopping applications
Rear pump vanes with cutting slots repel and chop any material that gets behind the impeller
The wearing parts-cutting bar, impeller and rear cutting teeth can be easily and inexpensively replaced
All clearances are easily and externally adjustable by one person without having to unbolt and move the pump and/or motor
Top-quality materials and castings are utilised throughout, there are no flimsy fabricated parts to corrode
Available Options
Available with packing and all conventional mechanical seals, flushed or flush-less
Spare parts/kit
Custom mounting/baseplate
Key Specifications
Flow: Up to 2044 m³ /h
Head: Up to 46 m
Size range: 3 – 12 inches
Applications
Food and beverage
Automotive
Wastewater
Digester mixing
Pulp and paper
Other industrial applications that need chopping
Trillium Chop-Flow Pumps Pump Range

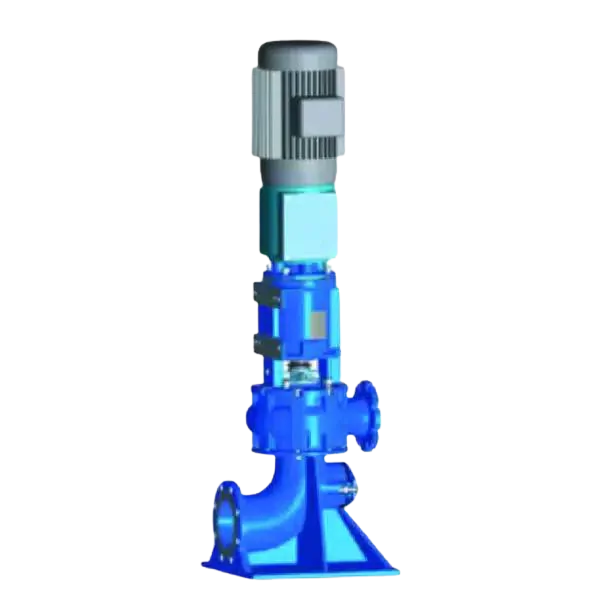

Vertical Chop-Flow Model (CFV)
Vertical Chop-Flow Model (CFV)
Vertical Chop-Flow Model (CFV)
PRINCIPLE OF OPERATION
The WSP™ Chop-Flow pump uses a rotating impeller and stationary cutter plate to break down large solids, fibres, and other hard-to-pump materials that usually cause clogging in regular centrifugal pumps. As the pump sucks in water with solids, its rugged impeller chops the foreign materials several hundred times per minute against its stationary cutter plate before it proceeds with its normal pumping operation.
Our Available Range of Trillium Flow Technologies™ WSP™ Pumps
