Tsurumi's C Range 

Tsurumi's C Range 

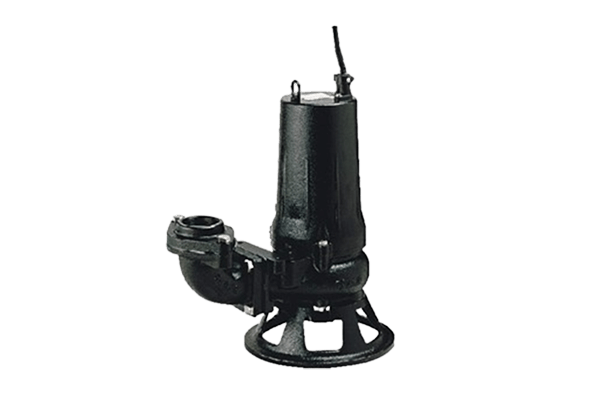

Tsurumi’s C Series comprises powerful cutter pumps that are designed to effectively shred soft solids found in sewage. The cutter pump mechanism of the C pumps features a combination of impeller vanes with one or two brazed sintered tungsten carbide alloy edges and a serrated suction cover. This tandem effectively catches and shreds solids into fine particles before they flow through the pump, preventing clogs.


The impeller vane tips are constructed using tungsten carbide alloy to resist wear and breakdowns. Advanced models called CR pumps are also available. These optimised pumps handle solids efficiently and smoothly, while maintaining high head and high volume.


Features & Benefits
Know more about the features & benefits of using Tsurumi's C Range .
  • Guaranteed non-clog design
  • Large solid passage
  • Continuous duty over long periods
  • Equipped with Tsurumi original technologies
  • Excellent durability and sound quality
  • Significantly reduces maintenance and downtime
Available Options
All-Pumps can customise pumps according to your requirements and specific applications. Get in touch with us today to find the right pump!
  • Seawater-resistant version
  • High-temperature liquids version
  • Special material version
  • Dry pit version
  • Guide rail options
  • Float switch
  • Spare parts
Key Specifications
Here are the key specifications of Tsurumi's C Range .
  • Flows up to 1.7 m3/min
  • Bore up to 200 mm
  • Heads up to 64 meters
Applications
Here is a list of industrial applications for which Tsurumi's C Range  are commonly utilized.

Materials Handled

  • Aluminum can
  • Plastic bottle
  • Tissue
  • Wet wipes
  • Napkin

OUR RANGE OF AVAILABLE TSURUMI C SERIES SUBMERSIBLE PUMPS

Abaque Peristaltic Hose PumpsTalk to Experts
Abaque Peristaltic Hose Pump HDX40 model
50C2.75S 
Abaque Peristaltic Hose Pump HDX40 model
50C2.75 
Abaque Peristaltic Hose Pump HDX40 model
80C21.5 
Abaque Peristaltic Hose Pump HDX40 model
80C22.2-CR
Abaque Peristaltic Hose Pump HDX40 model

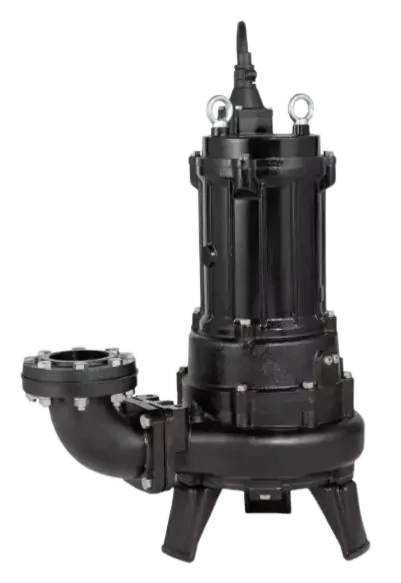

80C23.7-CR 
Abaque Peristaltic Hose Pump HDX40 model

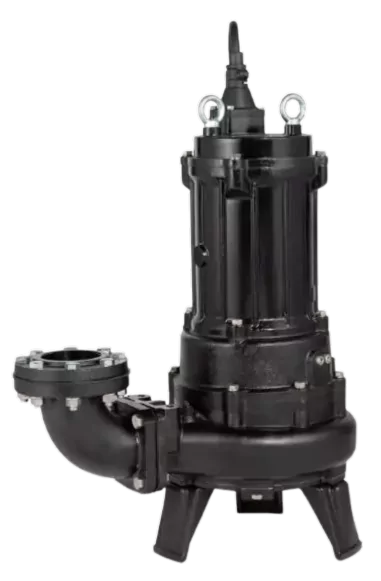

80C25.5-CR 
Abaque Peristaltic Hose Pump HDX40 model

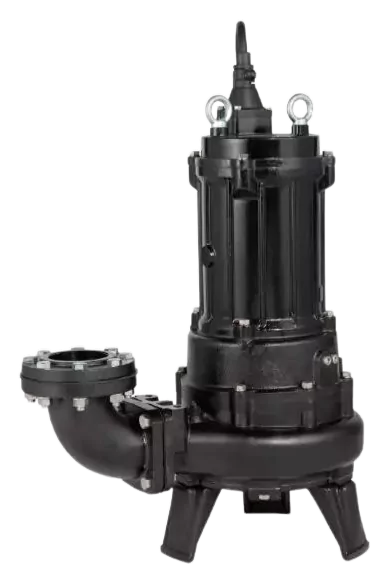

80C27.5-CR 
Abaque Peristaltic Hose Pump HDX40 model

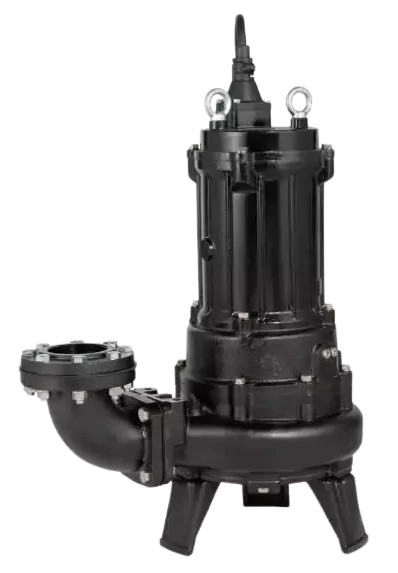

80C211-CR 
Abaque Peristaltic Hose Pump HDX40 model

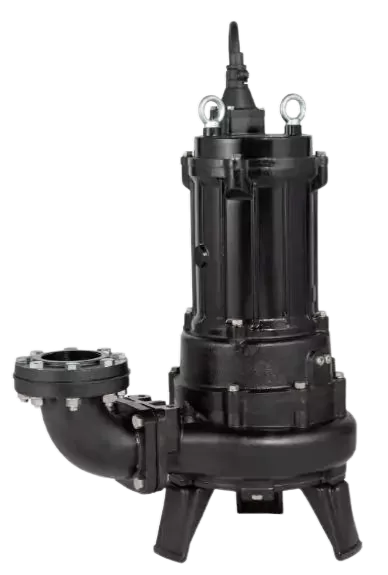

80C215-CR
Abaque Peristaltic Hose Pump HDX40 model

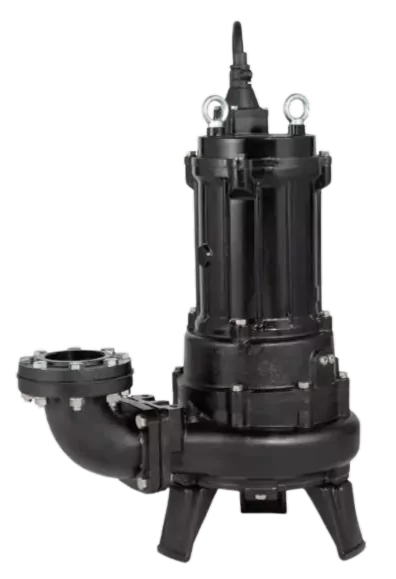

100C222-CR

PRINCIPLE OF OPERATION

Tsurumi’s C and CZ cutter pump series are innovative smashing pumps that use centrifugal force to collect wastewater from industries, infrastructures, and municipalities. A stationary blade works in tandem with an impeller blade to cut down solids on wastewater and sewage, sometimes stormwater too, as they enter the pump and flushed out under pressure to the discharge. When they come out of the pump, these solids are now in smaller sizes.

MODEL  FLOW RATE (m3/min)  HEAD (m) 
50C2.75S  0.34  11.5 
50C2.75  0.34  11.5 
80C21.5  0.81  13.2 
80C22.2-CR  0.75  21 
80C23.7-CR  0.65  29 
80C25.5-CR  1.34  32 
80C27.5-CR  1  38 
80C211-CR  1.2  47 
80C215-CR  1.2  51 
100C222-CR  1.7  64 
