Tuthill’s HD Series of Industrial Process Pumps

Tuthill’s HD Series of Industrial Process Pumps

The Heavy-Duty Series comprises high-strength circumferential piston pumps. They are resistant to abrasives and air entrainment, can withstand high and variable viscosities, and run dry without damage. The HD Series outperforms other rotary positive displacement pumps with higher differential pressure. Because of the large pumping cavities and non-contacting design, these pumps are ideal for gently handling thin and viscous liquids and liquids containing large solids. They are designed to be easily cleaned, making them ideal for applications requiring sanitary construction.

industrial

Know more about Tuthill
Hd Series Of Industrial Process Series

Design Advantages
  • Isolated fluid chamber for maximum pressure capability
  • Heavy-duty construction provides longer life
  • External bearing support for safe dry running
  • Extended, sturdy shaft offers high torque capability
  • Grease-lubricated double-row ball bearings
  • Rugged single lobe impellers
Available Options

All-Pumps can customise pumps according to your requirements and specific applications. Get in touch with us today to find the right pump!



  • Special hardening for abrasive applications
  • Variety of flanges
  • Special construction for high temperatures
  • Special clearances
  • Bolt-on heating/cooling jackets
  • Mounting options
  • Spare parts
Key Specifications
  • Pass solids up to 31.75 mm
  • Flow rate up to 118.1 m3/h
  • Differential pressure up to 31 bar
  • Viscosities up to 4,400,000 CST
  • Self-priming up to 4.3 m

MODELS

FLOW (m3/h)

PRESSURE (bar)

70A

11.8

31

120A

23.8

31

330

60.2

31

600

118.1

31

Applications
  • Adhesive & Sealant
  • Chemical Processing
  • Confectionery
  • Construction Material
  • Energy & Power
  • Filled Asphalt
  • Food & Beverage
  • Meat Processing
  • Resins, Paints, & Coatings
  • Soaps & Surfactants
  • Pulp & Paper
  • Water & Wastewater
INDUSTRIAL

Our range of available Hd Series
Of Industrial Process pumps

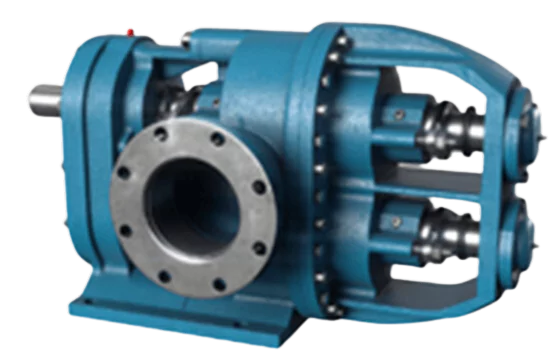

120A

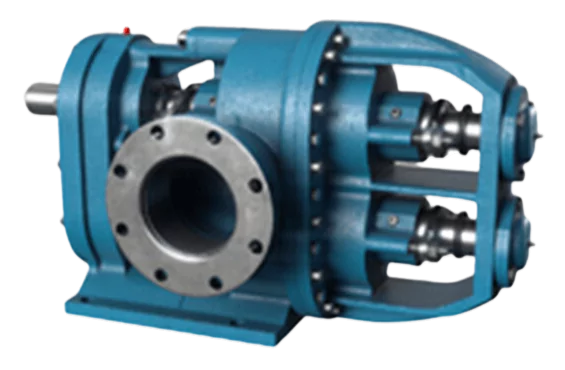

330

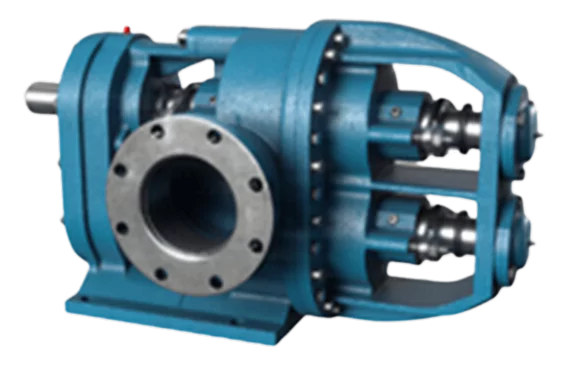

600

PUMP

Principle of Operation

A hydraulic piston pump is a type of reciprocating positive displacement pump that creates high amounts of pressure to help with the flow of fluid, such as water. It is powered by a hydraulic drive mechanism that helps move the fluid down a cylindrical-shaped chamber. These reciprocating pumps have an outer diameter seal with a piston rod attachment. They work by creating pressure by distributing energy into the pumped fluid. This action results in a pressurized fluid cylinder.

OBJECTIVES

SERVICING YOU ANYWHERE
IN AUSTRALIA

All-Pumps offers bespoke solutions to your manufacturing processes. Whether you need a new pump, replacement part, repair services, system design, or monthly maintenance, call our professionals!

Our customer support services set us apart, we take responsibility to give you the best experience possible.

How our experts can help you:

  • Design and cost a system or project
  • Customise and engineer solutions for your specific application
  • Provide spare parts and maintenance services
  • Conduct Site-Wide Pump Health Audits with our Nexus Program
  • Pump Manuals and Technical Guides

And so much more!

Get in touch

Fill out the quick form below and one of our sales officer will get in touch with you in a lighting speed!
