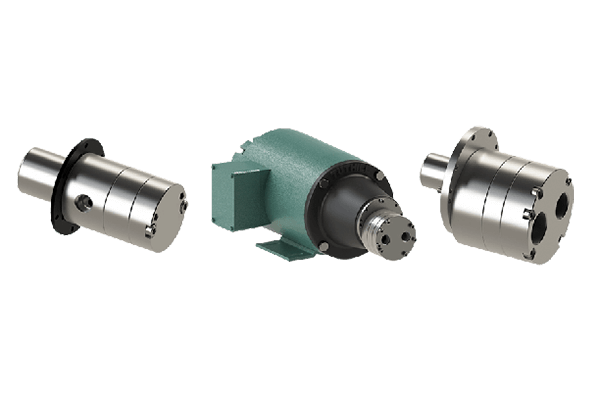

Tuthill’s Technaflo range of magnetically coupled external gear pumps comprises the D, T, and W pumps Series. These pumps are engineered to deliver precise and accurate flow, completely leak-free. This makes them the ideal solution for metering or dosing and circulating applications where pump life and reliability are critical. They boast a compact and simple design with a limited number of moving parts, thus making maintenance easier. Finally, their low internal volume provides a reliable measure of liquid passing through a pump, thus achieving more accurate flow control.

industrial

Know more about Tuthill
Technaflo – Magnetically Coupled Range Series

Design Advantages
  • ATEX approved pumps
  • Sealless, leak-free design
  • Compact, pulse-free, self-priming
  • Metering accuracy better than 1%
  • Various engineered plastics for wear parts
  • Exceptional pump life and wide compatibility
Available Options

All-Pumps can customise pumps according to your requirements and specific applications. Get in touch with us today to find the right pump!



  • Variety of drive options
  • Numerous material options
  • Mounting options
  • Spare parts
Key Specifications
  • Flows from 2.5 m3/h
  • Pressures to 17.2 bar
  • Viscosities to 10,000 cps

D SERIES

  • Flow up to 0.5 m3/h
  • Nominal pressures to 17.2 bar
  • Viscosities from up to 2,000 CPS
  • 13 models

T SERIES

  • Flow up to 2.5 m3/h
  • Nominal pressures to 17.2 bar
  • Viscosities from 0.3 CPS to 2,000 CPS
  • 5 models

W SERIES

  • Flow up to 2.5 m3/h
  • Differential pressures up to 17.2 bar
  • Based on D and T Series with enhancements
Applications
  • Agriculture
  • Biodiesel
  • Chemical
  • Electronics Cooling
  • Food & Beverage
  • Imaging Cooling
  • Medical Equipment
  • Oil & Gas
  • Paints, Coating, & Printing Inks
  • Personal Products
  • Pulp & Paper Additives
  • Semiconductor Equipment
  • Transportation
  • Water & Wastewater Treatment
TECHNAFLO
INDUSTRIAL

Our range of available
tECHNAFLO– Magnetically Coupled pumps

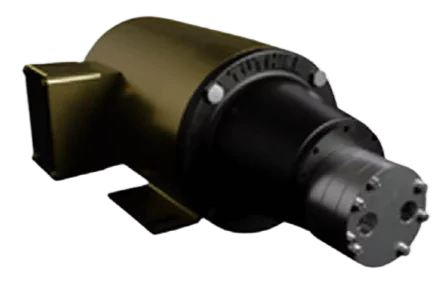

D SERIES

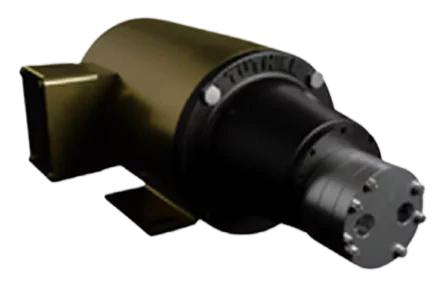

T SERIES

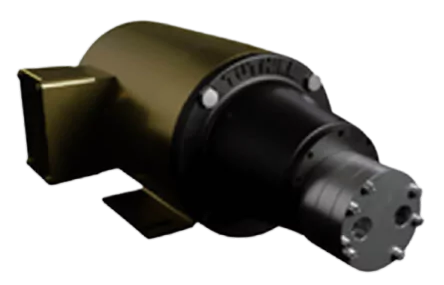

W SERIES

PUMP

Principle of Operation

An external gear pump consists of two identical, interlocking gears supported by separate shafts. Its operation is quite simple as the two external gears only need to rotate in the opposite direction. One gear is driven by a motor, which drives the second gear.
