Verderair 2nd Generation EODD Pumps

The 2nd generation of Verderair EODD pumps (Electric-Operated Double Diaphragm pumps) combines all the advantages of an AODD with the energy efficiency of an electrically driven pump. It’s not just designed to be smarter, simpler, quieter, lighter, and more efficient, but also more reliable, ensuring you can trust it to perform consistently.

With the wide range of materials available for the pump body, valve seats, valve balls, and diaphragms, the Verderair 2nd gen EODD pump is the ideal problem solver for various applications across many industries.

Features & Benefits

Verderair 2nd Generation EODD Pump Features

Energy efficient
Low noise level
Can stall against close discharge
Can run dry without damage
Dry self-priming

Key Specifications

Here are the key specifications of Verderair 2nd Generation EODD Pumps

Max. flow: 454 l/min
Max. discharge pressure: 6.9 bar

Applications

Here is a list of industrial applications for which Verderair 2nd Generation EODD Pumps are commonly utilized.

Beverage
Biotech
Dairy
Food
Personal Care
Pharmaceutical
Hygienic & Sanitary
Chemical and Industrial

Verderair 2nd Gen EODDProduct Range

Technical Specifications

Options












    MODEL
    MAX FLOW
    MAX DISCHARGE PRESSURE
    MAX DRIVE POWER
    MAX SUCTION LIFT (DRY)
    MAX SUCTION LIFT (WET)
    LIQUID CONNECTIONS



    VA-2E25 non-metallic
    114 l/min
    6.9 bar
    220-240V. 10A. 1 phase. 50/60 Hz
    2.4 m wc
    8.8 m wc
    Center flange DIN DN25/ANSI 1” - end flange DIN DN25/ANSI 1”

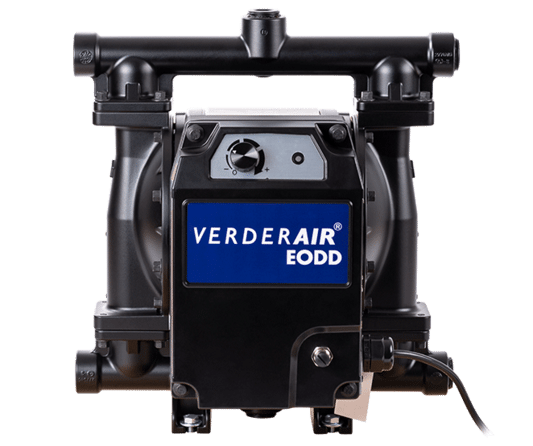

    VA-2E25 metallic
    114 l/min
    6.9 bar
    220-240V. 10A. 1 phase. 50/60 Hz
    2.4 m wc
    8.8 m wc
    1” NPT - 1” BSPT

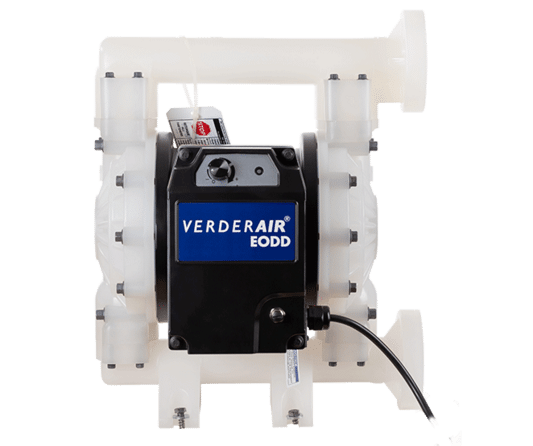

    VA-2E40 non-metallic
    303 l/min
    6.9 bar
    220-240V. 15A. 1 phase. 50/60 Hz
    5.2 m wc
    5.48 m wc
    Center flange DIN DN40/ANSI 1 1/2” - end flange DIN DN40/ANSI 2 1/2”

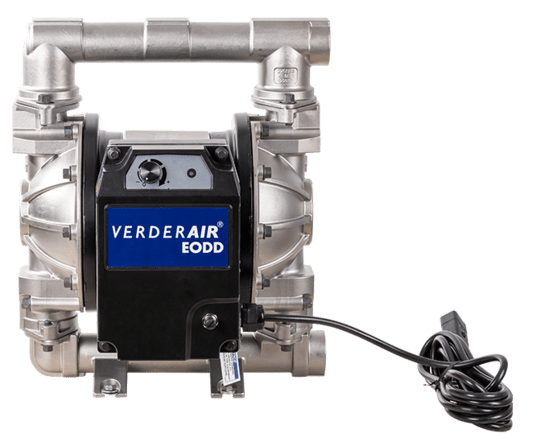

    VA-2E40 metallic
    303 l/min
    6.9 bar
    220-240V. 15A. 1 phase. 50/60 Hz
    5.2 m wc
    5.48 m wc
    1 1/2” NPT - 1 1/2” BSPT

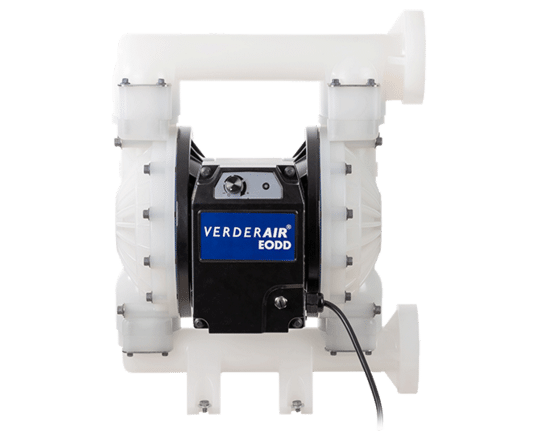

    VA-2E50 non-metallic
    454 l/min
    4.1 bar
    220-240V. 15A. 1 phase. 50/60 Hz
    4.8 m wc
    5.48 m wc
    Center flange DIN DN50/ANSI 2” - end flange DIN DN50/ANSI 2”

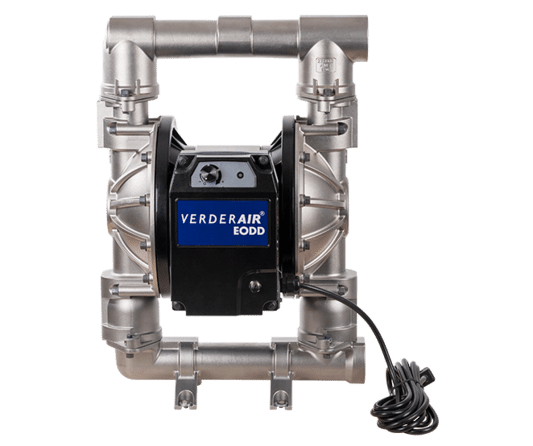

    VA-2E50 metallic
    454 l/min
    4.1 bar
    220-240V. 15A. 1 phase. 50/60 Hz
    4.8 m wc
    5.48 m wc
    2” NPT - 2” BSPT




MODEL	MAX FLOW	MAX DISCHARGE PRESSURE	MAX DRIVE POWER	MAX SUCTION LIFT (DRY)	MAX SUCTION LIFT (WET)	LIQUID CONNECTIONS
VA-2E25 non-metallic	114 l/min	6.9 bar	220-240V. 10A. 1 phase. 50/60 Hz	2.4 m wc	8.8 m wc	Center flange DIN DN25/ANSI 1” - end flange DIN DN25/ANSI 1”
VA-2E25 metallic	114 l/min	6.9 bar	220-240V. 10A. 1 phase. 50/60 Hz	2.4 m wc	8.8 m wc	1” NPT - 1” BSPT
VA-2E40 non-metallic	303 l/min	6.9 bar	220-240V. 15A. 1 phase. 50/60 Hz	5.2 m wc	5.48 m wc	Center flange DIN DN40/ANSI 1 1/2” - end flange DIN DN40/ANSI 2 1/2”
VA-2E40 metallic	303 l/min	6.9 bar	220-240V. 15A. 1 phase. 50/60 Hz	5.2 m wc	5.48 m wc	1 1/2” NPT - 1 1/2” BSPT
VA-2E50 non-metallic	454 l/min	4.1 bar	220-240V. 15A. 1 phase. 50/60 Hz	4.8 m wc	5.48 m wc	Center flange DIN DN50/ANSI 2” - end flange DIN DN50/ANSI 2”
VA-2E50 metallic	454 l/min	4.1 bar	220-240V. 15A. 1 phase. 50/60 Hz	4.8 m wc	5.48 m wc	2” NPT - 2” BSPT

All-Pumps can customise pumps according to your specific application requirements. Contact our sales team to learn about your complete options.

Wide range of different materials available

Spare parts

Mounting, roll frame, trolley, and other custom accessories
