Zenit's Uniqa Series

The Zenit UNIQA Series comprises more modern electrical submersible pumps. They are designed for improved hydraulics which makes them suitable for heavy-duty professional applications. The UNIQA pumps are driven by premium IE3 motors to guarantee high performance at low energy consumption. Models can incorporate selected motor-hydraulics combinations and choose from a variety of materials to provide optimal performance in a specific type of application.

The entire range uses a dry motor that doesn’t require an external liquid supply and allows the electric pump to operate continuously even if partially submerged.

Features & Benefits

Know more about the features & benefits of using Zenit's Uniqa Series.

Driven by high-efficiency IE3 motors
Motor is cooled by a patented closed cooling system
Written Goths cable entry to avoid any chance of leakage
A humidity sensor can be installed in the engine cover
Back-to-back mounted silicon carbide seals, V-rings, oil lifter
Special Anti-Clogging System

Available Options

We customise pumps according to your specific application. Get in touch with us to know your options.

ATEX models on request
Shaft material options
Duplex steel shaft option
Optional probe for monitoring
Various flange drilling
Base plates
Spare parts and accessories

Key Specifications

Here are the key specifications of Zenit's Uniqa Series.

Flow up to 878.3 m3/h
Head up to 100 meters
Free passage up to 220mm x 110 mm

Applications

Here is a list of industrial applications for which Zenit's Uniqa Series are commonly utilized

Civil lifting – soiled wastewater
Drainage – wastewater from rainfall and yard sluicing tanks
Sewage – unstrained wastewater
Industrial – sewage and process water
Agriculture – sewage, solids and fibres
Irrigation – clear or slightly soiled wastewater

Principle of Operation

Submersible centrifugal pumps work following the electric submersible pump operating principle. An encapsulated electric motor drives the centrifugal pump while the fluid’s kinetic energy increases. This energy is then partly converted into pressure, which lifts the fluid through the pump. The design uses a vertical shaft to rotate the impellers and pressurise fluid. The entire unit is submerged in the fluid, so it requires the use of mechanical seals to protect the electrical motor from failing.

OUR RANGE OF AVAILABLE Zenit's Uniqa Series

Zenit's UNIQA Series is the latest in electrical submersible pump innovation, designed for heavy-duty applications with improved hydraulics and powered by high-efficiency IE3 motors. These pumps offer customizable motor-hydraulics combinations and material choices to perfectly match your application needs, all while operating continuously without the need for an external liquid supply. Explore the UNIQA Series and optimize your operations with Zenit's cutting-edge solutions.

Talk to Experts

ZUG CP CHOPPER

ZUG GR GRINDER

ZUG V VORTEX

ZUG OC OPEN CHANNEL

ZUG HP HIGH HEAD

    MODELS
    FLOW (m3/h)
    HEAD (m)
    FREE PASSAGE (mm)



    ZUG V VORTEX
    396.1
    75
    125


    ZUG OC OPEN CHANNEL
    576
    100
    220mm x 110mm


    ZUG CP CHOPPER
    878.3
    75
    -


    ZUG GR GRINDER
    28.8
    57
    -


    ZUG HP HIGH HEAD
    39.5
    61
    10


MODELS	FLOW (m3/h)	HEAD (m)	FREE PASSAGE (mm)

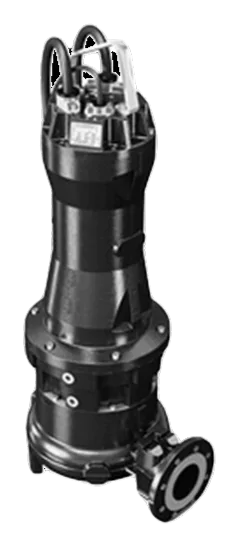

ZUG V VORTEX	396.1	75	125

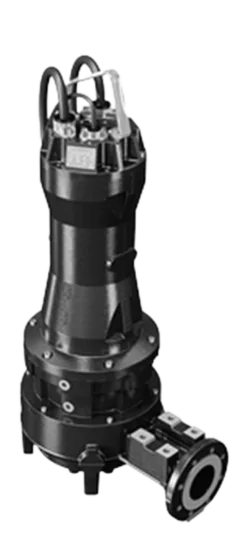

ZUG OC OPEN CHANNEL	576	100	220mm x 110mm

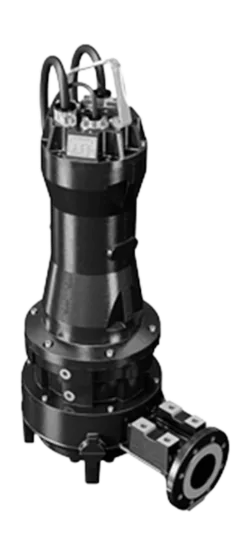

ZUG CP CHOPPER	878.3	75	-

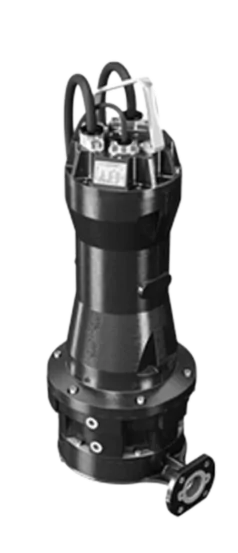

ZUG GR GRINDER	28.8	57	-

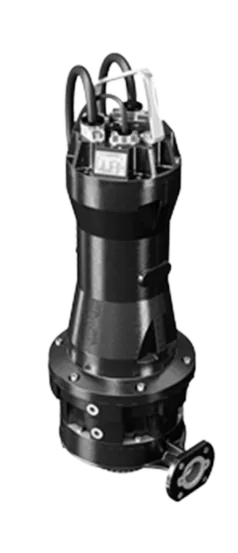

ZUG HP HIGH HEAD	39.5	61	10
