FTI's Sealless ANSI Ultrachem

Finish Thompson’s UltraChem range is composed of leak-free and magnetically driven pumps. With a clever case design and carefully chosen materials, the UltraChem pumps promise maximum reliability even in the most extreme situations without risks of sudden leaks and failure.

The UltraChem series prioritises maximising the time between routine services by incorporating materials with high resistance to corrosion caused by strong chemicals. Specifically, the series combines a tough ductile iron casing with a Tefzel (ETFE) lining for superior corrosion resistance.

Features & Benefits

Know more about the features & benefits of using FTI's Sealless ANSI Ultrachem.

Sealless design for reduced downtime
No cross-contamination, wastage, hazards
Simple design for easier servicing and reduced downtime
Close-coupled design, reduced alignment issues
Modified volute design for minimized radial loads
Balanced hydraulic axial thrust loads

Available Options

We customise pumps according to your specific application. Get in touch with us to know your options.

Material options
Dri-Coat silicon carbide bearing/shaft option
Long-coupled bearing frame
Bronze pump ring
Accessories
Spare parts
Mounting

Applications

Here is a list of industrial applications for which FTI's Sealless ANSI Ultrachem are commonly utilized.

General industrial applications
Oil and gas
Brewery and distillery
Semiconductor
Mining
Pharmaceutical
Food
Personal Care
Home Care

UC1516L

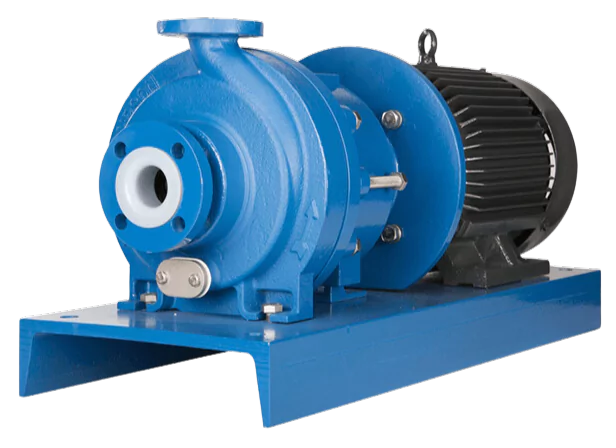

UC1516

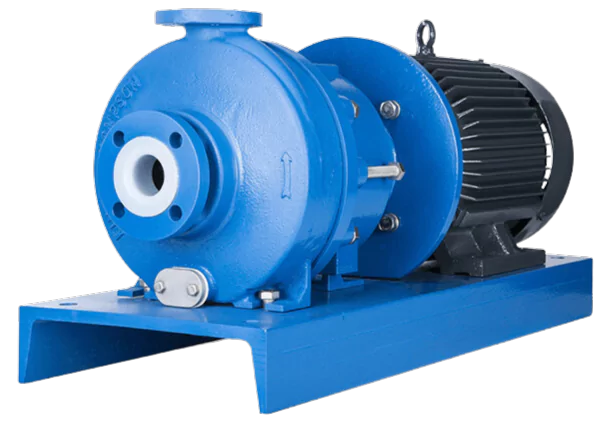

UC1518L

UC1518

UC2110L

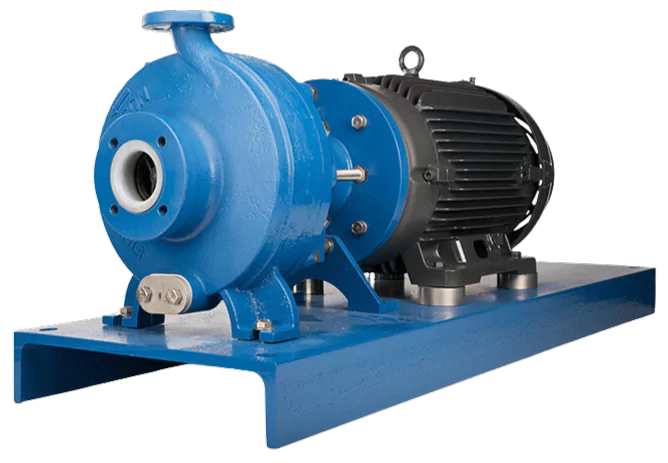

UC2110

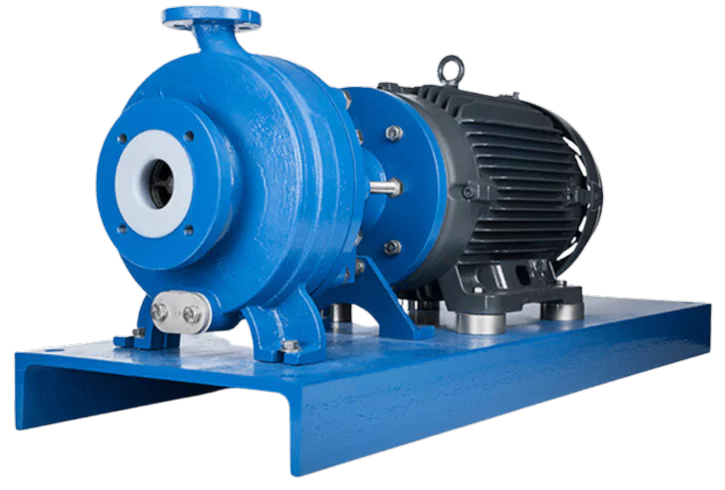

UC3110

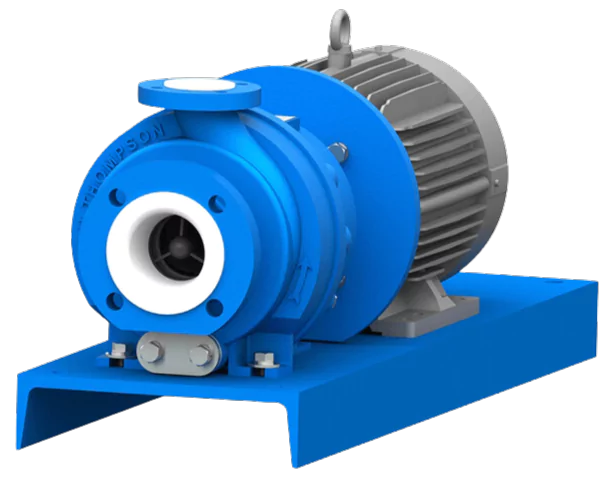

UC3156

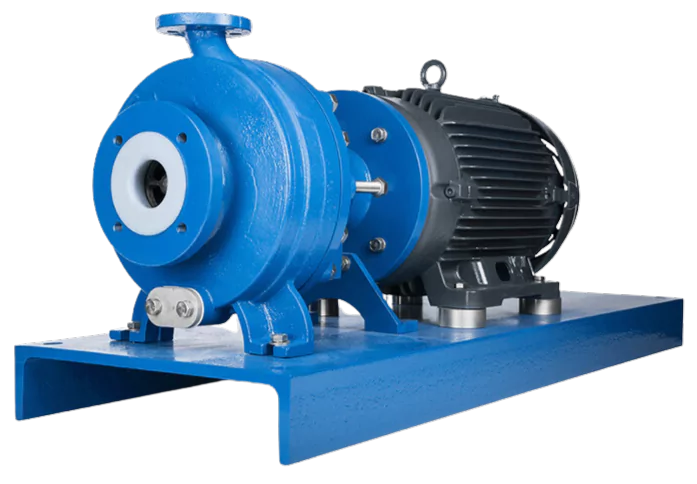

UC3158

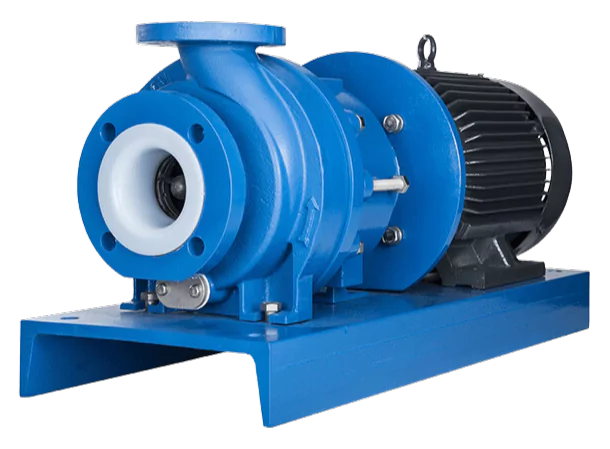

UC326

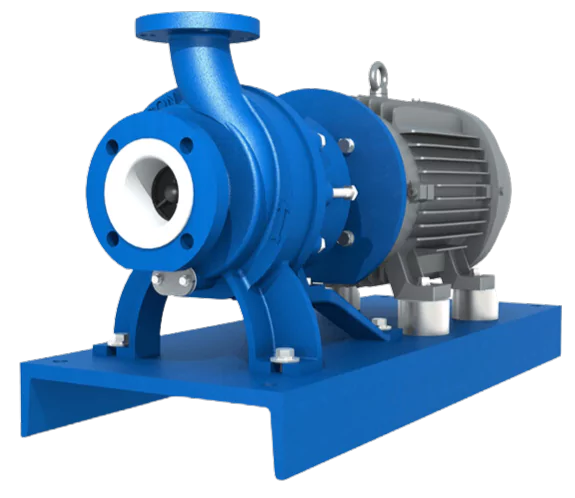

UC326H

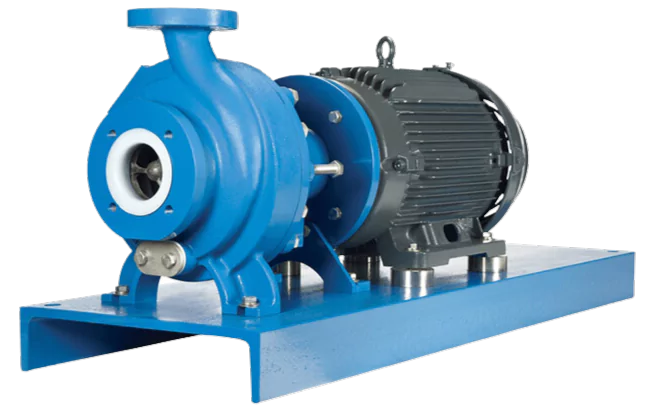

UC328

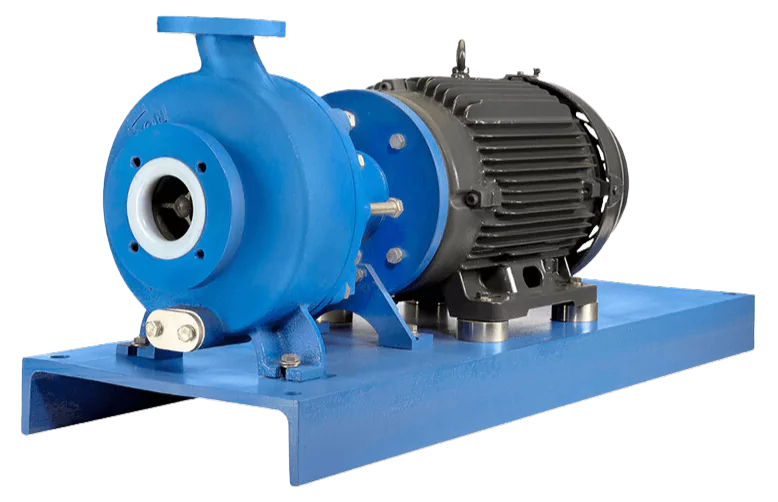

UC3210

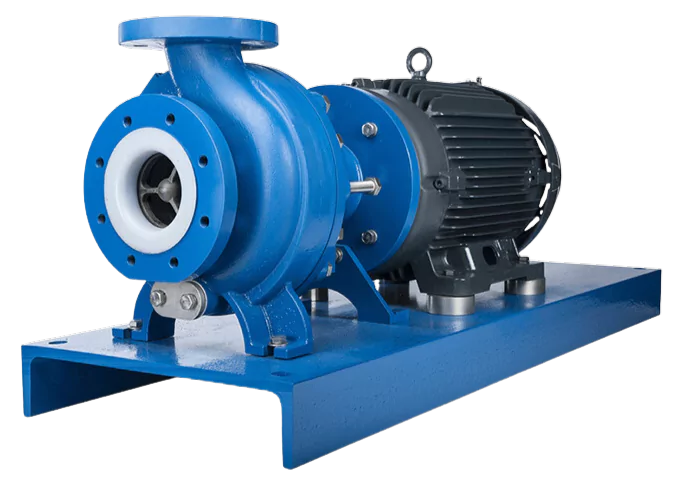

UC436

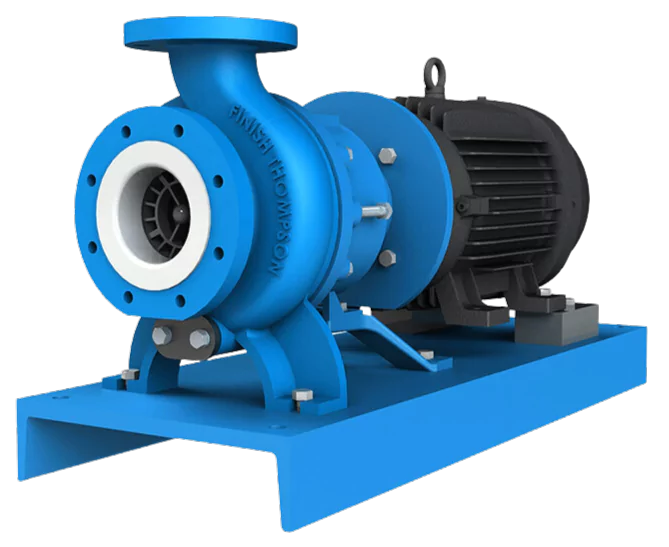

UC436L

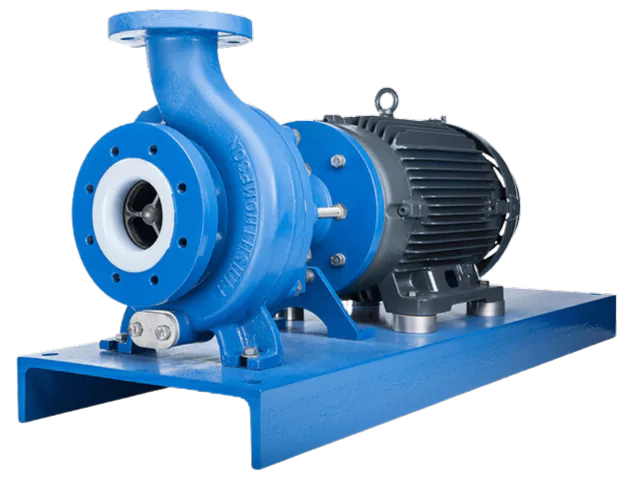

UC438

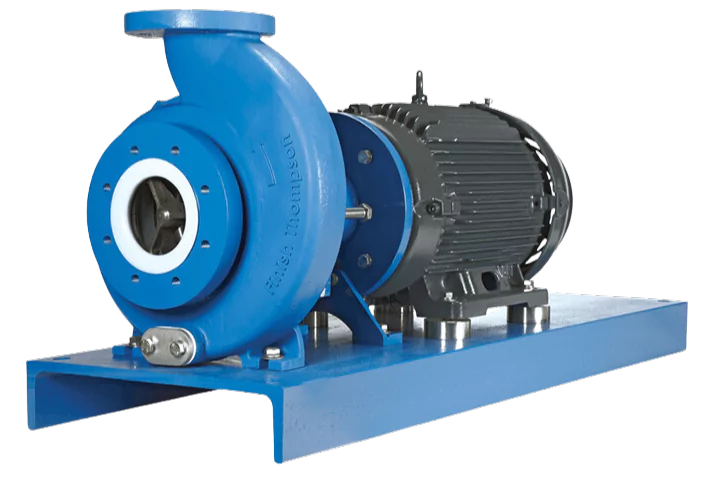

UC4310H

UC6410

OUR RANGE OF AVAILABLE SEALLESS ANSI ULTRACHEM PUMPS

Talk to Experts

UC1516L

UC1516

UC1518L

UC1518

UC2110L

UC2110

UC3110

UC3156

UC3158

UC326

UC326H

UC328

UC3210

UC436

UC436L

UC438

UC4310H

UC6410

PRINCIPLE OF OPERATION

The operating principle of a magnetic drive pump is very simple. A magnetic coupling consists of two magnet assemblies. One is the outer assembly or the drive magnet and the other is the inner assembly or the driven magnet. The outer assembly is connected to a motor and the inner assembly is directly attached to the impeller. At rest, the magnet components of the outer assembly are aligned with their counterparts in the inner assembly. When the load (torque) is applied, the coupling deflects angularly and the magnets create a force of simultaneous attraction and repulsion. This force is used to transfer torque from the motor to the impeller and is what pumps the fluid out.

    MODEL
    Flange
ANSI 150 lb
Suction/Discharge
    Max
Impeller Size
cm
    Max Flow
2900 rpm
m³/hr
    Max Head
2900 rpm
meters



    UC1516L
    1.5"
    1"
    16.2
    9
    36


    UC1516
    1.5"
    1"
    16.2
    30
    37


    UC1518L
    1.5"
    1"
    20.6
    8.6
    69


    UC1518
    1.5"
    1"
    20.6
    38
    65


    UC2110L
    2”
    1"
    26.7
    17
    94


    UC2110
    2”
    1"
    26.7
    38
    102


    UC3110
    3”
    1"
    26.7
    38
    102


    UC3156
    3”
    1.5”
    16.2
    50
    30


    UC3158
    3”
    1.5”
    21
    80
    62


    UC326
    3”
    2”
    16.2
    95
    34


    UC326H
    3”
    2”
    16.2
    95
    34


    UC328
    3”
    2”
    20.6
    85
    62


    UC3210
    3”
    2”
    26.7
    105
    100


    UC436
    4”
    3”
    16.2
    125
    10


    UC436L
    4”
    3”
    16.2
    85
    35


    UC438
    4”
    3”
    21
    160
    60


    UC4310H
    4”
    3”
    25
    200
    24


    UC6410
    6”
    4”
    26.7
    329
    34





MODEL	Flange ANSI 150 lb Suction/Discharge		Max Impeller Size cm	Max Flow 2900 rpm m³/hr	Max Head 2900 rpm meters
UC1516L	1.5"	1"	16.2	9	36
UC1516	1.5"	1"	16.2	30	37
UC1518L	1.5"	1"	20.6	8.6	69
UC1518	1.5"	1"	20.6	38	65
UC2110L	2”	1"	26.7	17	94
UC2110	2”	1"	26.7	38	102
UC3110	3”	1"	26.7	38	102
UC3156	3”	1.5”	16.2	50	30
UC3158	3”	1.5”	21	80	62
UC326	3”	2”	16.2	95	34
UC326H	3”	2”	16.2	95	34
UC328	3”	2”	20.6	85	62
UC3210	3”	2”	26.7	105	100
UC436	4”	3”	16.2	125	10
UC436L	4”	3”	16.2	85	35
UC438	4”	3”	21	160	60
UC4310H	4”	3”	25	200	24
UC6410	6”	4”	26.7	329	34
