Albany's Twin Screw

Albany Pumps S Series comprise high speed, quiet-running twin screw pump. The main markets for these pumps include the oil and marine industries as they have found that Twin Screw Pumps best meet their needs. The twin screw technology can efficiently handle a wide range of viscosities that are often encountered with hydrocarbon liquids at different temperature ranges.

Additionally, twin screw pumps have good gas handling characteristics, which is why they are often used for line stripping duties running alongside much larger pumps in refineries or ship loading.

Features & Benefits

Know more about the features & benefits of using Albany's Twin Screw.

Compact design with smooth and quiet operation
Low resonance and noise level
Excellent gas handling characteristics
Hydraulically balanced allowing optimum efficiency
Customisable to fit customer’s unique requirements
Engineered using high-quality materials for longevity

Available Options

We customise pumps according to your specific application. Get in touch with us to know your options.

Internal or external bearing configurations
Steam heating/water cooling jackets
Horizontal or vertical mounting
Spare parts

Applications

Here is a list of industrial applications for which Albany's Twin Screw are commonly utilized.

Crude oil
Fuel oil
Aviation fuel
Bitumen
Asphalt
Fresh sea water
Oily water/slops
Flare scrubbing
Fire foam injection
Line stripping
Cargo pumping

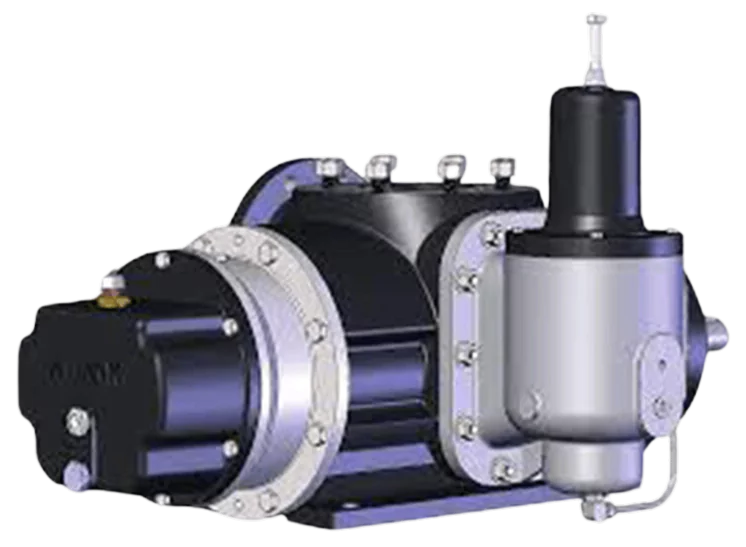

INTERNAL SEAL PUMP

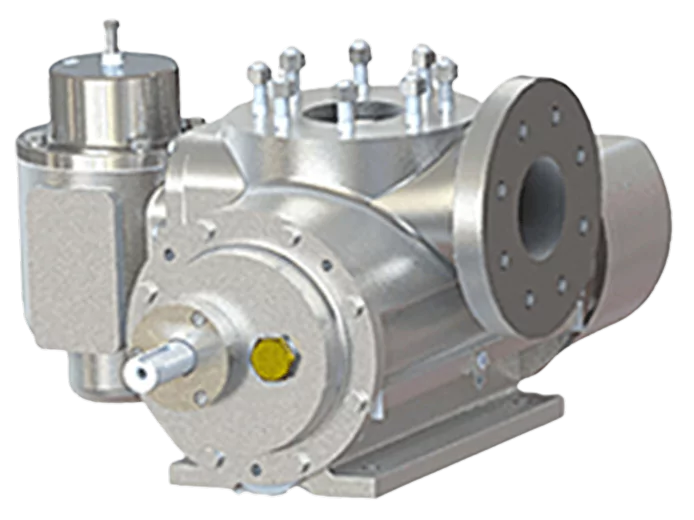

EXTERNAL BEARING PUMP

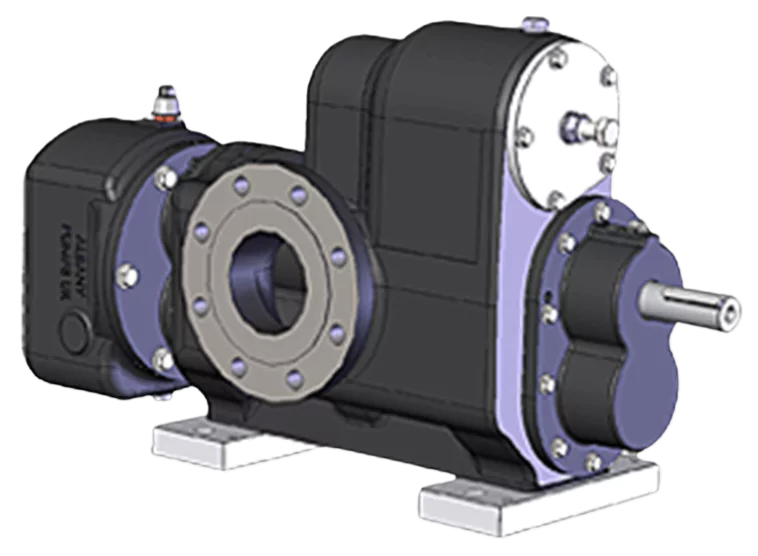

INTERNAL SEAL EXTERNAL BEARING PUMP

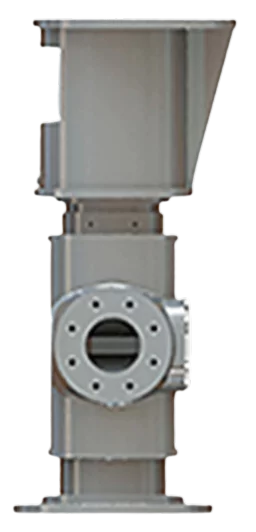

VERTICAL INTERNAL SEAL PUMP

VERTICAL INTERNAL BEARING PUMP

OUR RANGE OF AVAILABLE Albany's Twin Screw

INTERNAL SEAL PUMP

EXTERNAL BEARING PUMP

INTERNAL SEAL EXTERNAL BEARING PUMP

VERTICAL INTERNAL SEAL PUMP

VERTICAL INTERNAL BEARING PUMP

PRINCIPLE OF OPERATION

Twin screw pumps operate without metal-to-metal contact within the pump housing. As the pump rotates, the intermeshing of the two screws along with the pump housing form chambers. These chambers fill with the pumped fluid and move it from the suction side of the pump to the high-pressure discharge side of the pump.

    MODEL
    PUMP SIZE
    MAX TEMP
    MAX PRESS
    FLOW RATE



    SA Internal seal pump
    3” to 10”
    200 °C
    3 MPaG
    600000 lph


    SB External bearing pumps
    3” to 5”
    300 °C
    3 MPaG
    600000 lph


    SC Internal seal external bearing pumps
    3″ – 10″
    200 °C
    3 MPaG
    600000 lph


    SD Vertical internal seal pumps
    3″ – 12″
    200 °C
    2 MPaG
    1000000 lph


    SE Vertical Internal bearing pumps
    3″ – 10″
    300 °C
    3 MPaG
    600000 lph


MODEL	PUMP SIZE	MAX TEMP	MAX PRESS	FLOW RATE
SA Internal seal pump	3” to 10”	200 °C	3 MPaG	600000 lph
SB External bearing pumps	3” to 5”	300 °C	3 MPaG	600000 lph
SC Internal seal external bearing pumps	3″ – 10″	200 °C	3 MPaG	600000 lph
SD Vertical internal seal pumps	3″ – 12″	200 °C	2 MPaG	1000000 lph
SE Vertical Internal bearing pumps	3″ – 10″	300 °C	3 MPaG	600000 lph
