Blackmer Sliding Vane Pumps

Blackmer® – part of PSG®, a Dover company logo
Blackmer’s sliding vane pumps (rotary vane pumps) are designed to handle lubricating fluids and other low-viscosity fluids at low and medium pressures. The unique sliding vane technology allows self-adjustment to mitigate wear while maintaining flow rates. Blackmer sliding vane pumps are known for their outstanding self-priming and dry-run capabilities, providing uninterrupted operation and reliable performance.

KNOW MORE ABOUT BLACKMER
SLIDING VANE PUMPS

Abaque Peristaltic Pump HD25 model

Design Advantages

  • Unique technology: self-adjusting for wear, self-priming, dry-running
  • Ease of maintenance: vanes can be easily replaced without disturbing the system
  • Excellent performance: high suction lift exceeding 7.6 meters and line-stripping capabilities to empty tanks and pipes of fluid
  • Renewable and repairable: designed to support low maintenance and low life-cycle costs
  • Solids handling capabilities: made possible by large displacement and slow internal velocities
  • Flexibility: handles thin to thick fluids without heating systems
  • Highly efficient: requires less horsepower/electricity than other pumps

Available Options

We customise pumps according to your specific application. Contact us today to get a complete list of your options.

  • Vane material options
  • Sealing options
  • Elastomer options
  • Material options
  • Connection options
  • Porting options
  • Mounting options
  • Maintenance kit/spare parts

Key Specifications

  • Flow rates up to 2233 L/min
  • Differential pressures up to 13.8 bar
  • Working pressures up to 24.1 bar
  • Viscosities up to 10,500 cP

Applications

  • Chemicals
  • Petroleum
  • Paint and coatings
  • Pulp and paper
  • Food processing
  • Asphalts
  • Oils
  • Molasses
  • Adhesives

OUR RANGE OF BLACKMER SLIDING VANE PUMPS

alfa laval CENTRIFUGAL Capacities of up to 500 m3/h | 1.9 MPaML SERIES
Flow rates up to 2,233 L/min
Differential pressures up to 13.8 bar
rotary lobeNP SERIES
Flow rates up to 1985 L/min
Differential pressures up to 13.8 bar

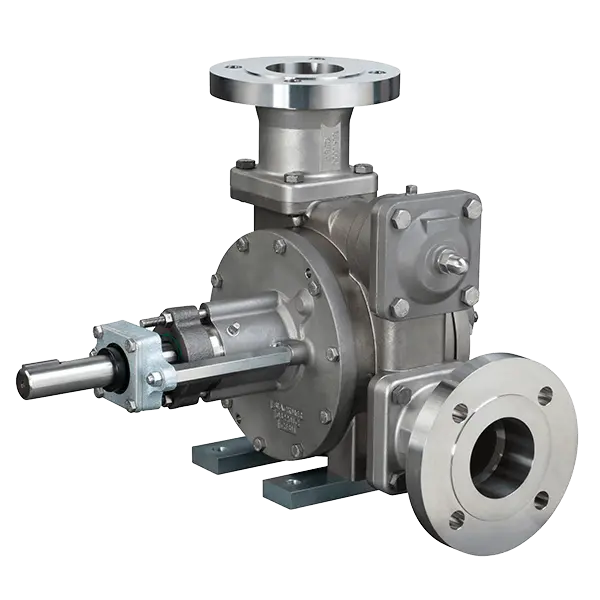

twin screw seriesSNP SERIES
Flow rates up to 1040 L/min
Differential pressures: 10.3 bar
Blackmer STX2 Sliding Vane Pump 600 LRSTX SERIES
Flow rates up to 946 L/min
Differential pressures: 8.6 bar
piston pumpTX SERIES
Flow rates up to 1911 L/min
Differential pressures: 8.6 bar
piston pumpX SERIES
Flow rates up to 2000 L/min
Differential pressures: 8.6 bar
piston pumpXL SERIES
Flow rates up to 1306 L/min
Differential pressures: 10.3 bar

PRINCIPLE OF OPERATION

Blackmer sliding vane pumps use a rotor with sliding vanes to draw liquid into the pump. This rotor is located close to the wall of the cam so that a crescent-shaped cavity is formed on the opposite wall. Each rotor slot contains a sliding vane. As the rotor rotates, centrifugal force, hydraulic pressure, and push rods work together to extend each vane to the casing wall. This creates an expanding cavity on the inlet side – creating a vacuum that pulls liquid into the pump. The liquid is trapped between the vanes and the casing wall. The rotor rotation moves the liquid cavities around to the outlet side of the pump. The vanes are forced back into their slots at the outlet side, decreasing the cavity size and forcing the liquid through the outlet port.
