TX Series Sliding Vane Pumps

Blackmer® – part of PSG®, a Dover company logo
Blackmer® TX Sliding Vane Pumps, part of the Iron Line, are durable tanker truck unloading pumps for fast and quiet operation. These tanker truck pumps are designed to transport petrochemicals, gasoline, biofuels and solvents and for fleet and aviation refuelling. The unique sliding vane technology provides sustained performance and trouble-free operation.

KNOW MORE ABOUT BLACKMER TX SERIES SLIDING VANE PUMPS

  • Albany is a force to reckon with in the design and manufacture of high-quality positive displacement pumps, gear pumps, lobe pumps, and screw pumps.
  • Albany is a force to reckon with in the design and manufacture of high-quality positive displacement pumps, gear pumps, lobe pumps, and screw pumps.
  • Albany is a force to reckon with in the design and manufacture of high-quality positive displacement pumps, gear pumps, lobe pumps, and screw pumps.
  • Albany is a force to reckon with in the design and manufacture of high-quality positive displacement pumps, gear pumps, lobe pumps, and screw pumps.

Design Advantages

  • External roller ball bearings support the rotor from both sides, creating a stable environment for the internal mechanical seals
  • Special closed rotor design has minimal clearance to improve inlet performance allowing for line stripping, priming evacuated piping systems and vertical lift of fluid to the pump inlet
  • Blackmer mechanical seal and ball-bearing construction provide maximum reliability
  • Internal mechanical seals allow for extended dry run and continuous operation with non-lubricating liquids
  • Symmetrical bearing support assures even loading and wear for long life
  • Excellent self-priming and dry-run capabilities 
  • Sustained performance and trouble-free operation 
  • High suction lift and line-stripping capabilities 
  • Easy to maintain – low maintenance and life cycle costs 

Available Options

  • Optional air-operated relief valve
  • T-type strainers
  • Vane material options
  • Sealing options
  • Elastomer options
  • Material options
  • Connection options
  • Porting options
  • Mounting/baseplates
  • Maintenance kits/spare parts

Key Specifications

  • Flow rates up to 1,911 L/min
  • Max differential pressure: 8.6 bar
  • Working pressures up to 15.5 bar
  • Max viscosities up to 10,500 Cp

Applications

  • Asphalt
  • Grease
  • Lube oils
  • Resins
  • Molasses
  • Bunkered fuels
  • Inks
  • Adhesives
  • Fuel oil
  • Jet fuel & aviation fuel
  • Gasoline
  • Biodiesel
  • Ethanol & other alcohols
  • Solvents
  • Ester
  • Ketone
  • Naphtha
  • Ether
  • Amine
  • Aromatic
  • Terpene
  • Glycol
  • Additives

OUR RANGE OF BLACKMER TX SERIES SLIDING VANE PUMPS

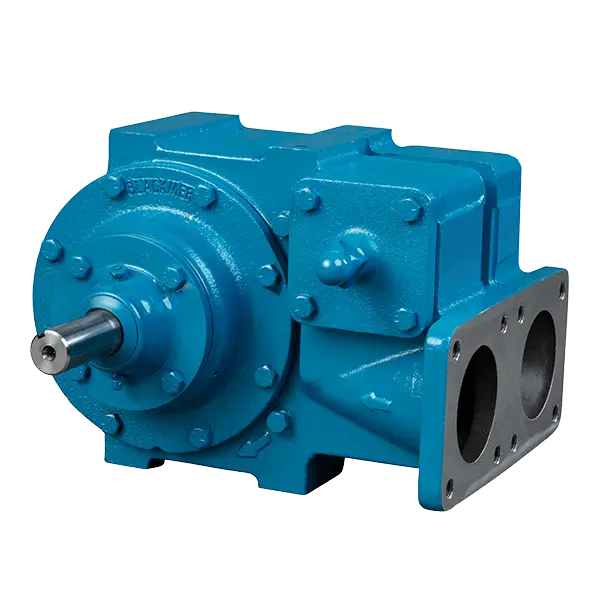

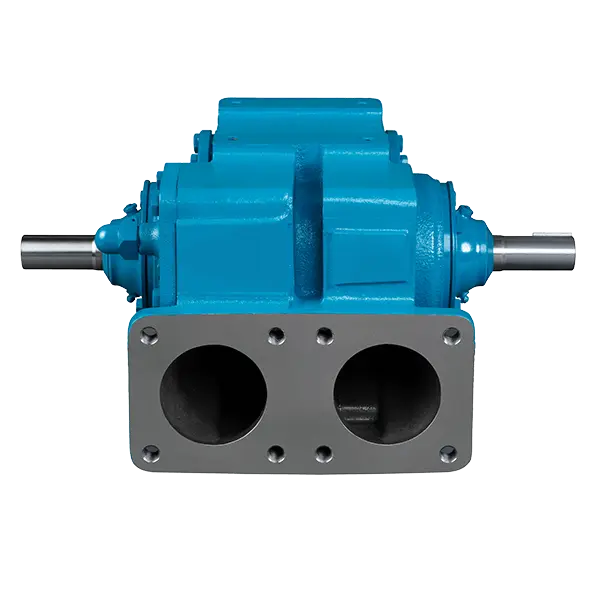

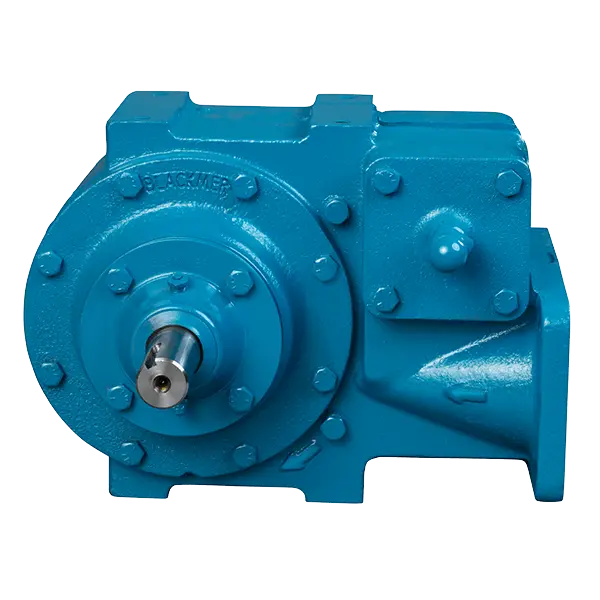

TXH SLIDING VANE PUMPS

Blackmer TXH sliding vane truck pumps are designed for handling a wide range of clean, non-abrasive and non-corrosive fluids compatible with cast iron.

Features

  • Dual-ended shaft on 2-, 2.5- and 3-in models simplifies installation
  • Internal mechanical seals allow for extended dry run and continuous operation with non-lubricating liquids
  • Symmetrical bearing support assures even loading and wear for long life

Key Specifications

  • Flow rates up to 1,135 L/min
  • Max differential pressures: 8.6 bar
  • Working pressures up to 12.1 bar
  • Max viscosities: 0.2 - 4,250 cP
  • Albany is a force to reckon with in the design and manufacture of high-quality positive displacement pumps, gear pumps, lobe pumps, and screw pumps.
  • Albany is a force to reckon with in the design and manufacture of high-quality positive displacement pumps, gear pumps, lobe pumps, and screw pumps.
  • Albany is a force to reckon with in the design and manufacture of high-quality positive displacement pumps, gear pumps, lobe pumps, and screw pumps.

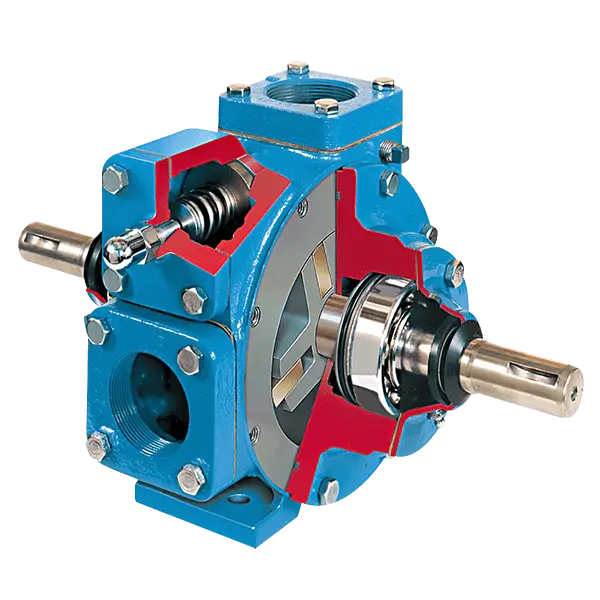

TXV SLIDING VANE PUMPS

Blackmer TXV cast iron sliding vane pumps are designed for the high-temperature transfer of thick, viscous fluids, including asphalts. They deliver higher flow rates per revolution than other ported gear pumps. Their slower operating speeds mean longer service life and reduced maintenance requirements. The TXV Series comes standard with bronze vanes and are available in 2.5- and 3-in port sizes.

Features

  • Special open rotor design that offers easy flushing
  • Bronze vanes, FKM elastomers, PTFE lip seals
  • Slower operating speeds mean longer service life and reduced maintenance requirements
  • High-performance capabilities, including self-priming and line clearing

Key Specifications

  • Flow rates up to 1,043 L/min
  • Max differential pressures: 8.6 bar
  • Working pressures up to 12.1 bar
  • Max viscosities: 0.2 – 10,500 cP
  • Albany is a force to reckon with in the design and manufacture of high-quality positive displacement pumps, gear pumps, lobe pumps, and screw pumps.
  • Albany is a force to reckon with in the design and manufacture of high-quality positive displacement pumps, gear pumps, lobe pumps, and screw pumps.

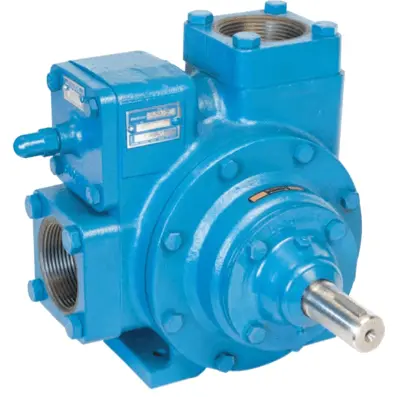

TXD1220 SLIDING VANE PUMPS

Blackmer TXD1120 cast iron sliding vane pumps boast speeds of up to 1,200 RPM, providing fast transfer of fluids and quiet operation. These high-speed pumps are also durable, reliable, safe, and efficient.

Features

  • Double-ended drive shaft for either clockwise (RH) or counterclockwise (LH) rotation
  • Dual-ended shaft on 2-, 2.5- and 3-in models simplifies installation
  • Symmetrical bearing support assures even loading and wear for long life

Key Specifications

  • Flow rates up to 1,200 L/min
  • Max differential pressures: 8.6 bar
  • Working pressures up to 15.5 bar
  • Max viscosities: 0.2 - 20 cP
  • Albany is a force to reckon with in the design and manufacture of high-quality positive displacement pumps, gear pumps, lobe pumps, and screw pumps.
  • Albany is a force to reckon with in the design and manufacture of high-quality positive displacement pumps, gear pumps, lobe pumps, and screw pumps.

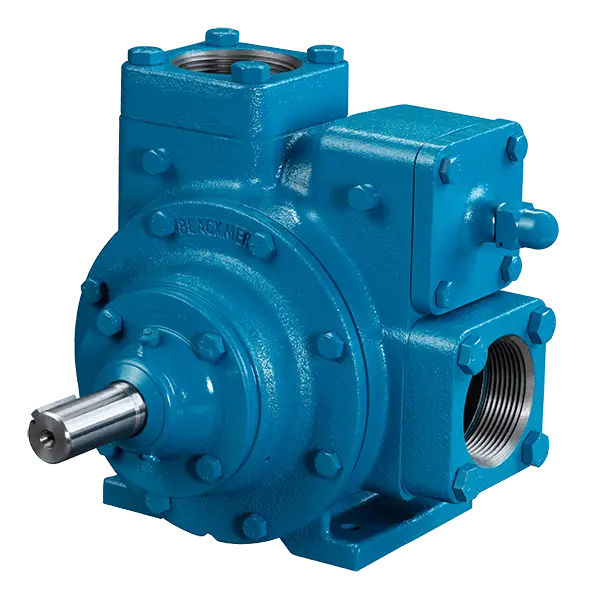

TXD SLIDING VANE PUMPS

Blackmer TXD Series comprises ductile iron and cast iron sliding vane pump models. These pumps are equipped with FKM O-rings and Blackmer mechanical seals that are compatible with all biodiesel and ethanol blends. The TX/TXD/TXDI models include corrosion-resistant relief valve, pneumatic relief valves and Buna or PTFE elastomers and seals.

Features

  • Double-ended drive shaft for either clockwise (RH) or counterclockwise (LH) rotation
  • Dual-ended shaft on 2-, 2.5- and 3-in models simplifies installation
  • Symmetrical bearing support assures even loading and wear for long life

Key Specifications

  • Flow rates up to 1,911 L/min
  • Max differential pressures: 8.6 bar
  • Working pressures up to 15.5 bar
  • Max viscosities: 0.2 - 4,250 cP
  • Albany is a force to reckon with in the design and manufacture of high-quality positive displacement pumps, gear pumps, lobe pumps, and screw pumps.
  • Albany is a force to reckon with in the design and manufacture of high-quality positive displacement pumps, gear pumps, lobe pumps, and screw pumps.
  • Albany is a force to reckon with in the design and manufacture of high-quality positive displacement pumps, gear pumps, lobe pumps, and screw pumps.
  • Albany is a force to reckon with in the design and manufacture of high-quality positive displacement pumps, gear pumps, lobe pumps, and screw pumps.
  • Albany is a force to reckon with in the design and manufacture of high-quality positive displacement pumps, gear pumps, lobe pumps, and screw pumps.

PRINCIPLE OF OPERATION

Blackmer sliding vane pumps use a rotor with sliding vanes to draw liquid into the pump. This rotor is located close to the wall of the cam so that a crescent-shaped cavity is formed on the opposite wall. Each rotor slot contains a sliding vane. As the rotor rotates, centrifugal force, hydraulic pressure, and push rods work together to extend each vane to the casing wall. This creates an expanding cavity on the inlet side – creating a vacuum that pulls liquid into the pump. The liquid is trapped between the vanes and the casing wall. The rotor rotation moves the liquid cavities around to the outlet side of the pump. The vanes are forced back into their slots at the outlet side, decreasing the cavity size and forcing the liquid through the outlet port.
