Chemical Pump - Durco PolyChem S-Series Non-Metallic

The PolyChem S-Series chemical process pumps are powerful workhorses suitable for handling highly corrosive fluids. These non-metallic centrifugal pumps are lined with a flexible fluoropolymer, resulting in superior temperature tolerance and corrosion resistance.

The S Series is designed according to the dimensional standards of ASME B73.1, ISO 2858/5199, and JIS drilling, making it adaptable to many different applications.

Features & Benefits

Know more about the features & benefits of using Chemical Pump - Durco PolyChem S-Series Non-Metallic.

Rugged cast iron metal armour that conforms to ASTM A395 and offers durability not found in conventional plastic pumps
Enclosed impeller provides balanced hydraulic loads and extends bearing life
Self-flushing, self-venting, self-draining Advanced FM SealSentry™ Design Technology
Seal chamber with flow modifiers redirect solids and slurry away from the seal
External micrometre impeller adjustment allows for quick and accurate impeller setting
Silicon carbide shaft sleeve mitigates corrosion and wear

Available Options

Durco PolyChem S-Series has various options to meet your application’s unique requirements. Get in touch with our experts for more information.

Sealing options
Open impeller option
Baseplates
ClearGuard and DurcoShield pump guards
Spare parts
10 pump sizes

Key Specifications

Here are the key specifications of Chemical Pump - Durco PolyChem S-Series Non-Metallic.

Flows to 7000 LPM or 420 m3/h
Heads to 145 m
Pressures to 17 bar

Applications

Here is a list of industrial applications for which Chemical Pump - Durco PolyChem S-Series Non-Metallic are commonly utilized.

Steel & Primary Metals
Organic & Inorganic chemicals
Specialty chemicals
Biofuels
Pharmaceutical
Petrochemicals
Water Management
Wastewater

flowserve-australia-durco-chemical-process-pumps-polychem-non-metallic-s-series-transp

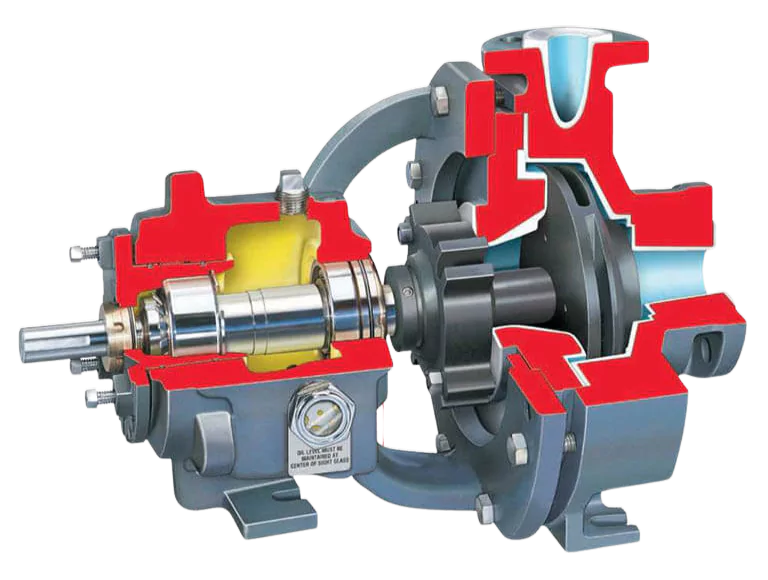

DURCO POLYCHEM S-SERIES

FLOW UP TO 7,000 LPM (LITERS PER MINUTE)
OR 420 M3/HR

Industrial Chemical Pumps

In Durco PolyChem centrifugal pumps, fluid enters the impeller through the “eye” and is “centrifuged” (hence the name) to the impeller periphery. As the impeller rotates, it imparts kinetic energy onto the fluid. The impeller vanes have channels with an increasing flow path area. As the flow path area expands, the passing fluid’s velocity decreases and the pressure increases. The fluid then falls to the volute. Due to the unique shape of the volute casing, the fluid undergoes a further velocity decrease and pressure increase. This causes the liquid to be discharged through the discharge port.

Durco Polychem Chemical Pump Brochure

Sealing Options

PolyChem S-Series pumps offer the advantage of innovative and readily available seal selections. Shown here are standard and recommended seal arrangements.

Advanced FM SEALSENTRY

Design Technology Only Flowserve offers a non-metallic pump with the advantages of an oversized seal chamber with flow modifiers.

Fluoropolymer PFA Lined

Wet End is globally preferred for its superior corrosion resistance and temperature allowance.
