Flygt 3000 Series N-Technology Sewage Pumps

FlyGT by Xylem logo 450x250

The Flygt 3000 Series has been upgraded with the innovative 3000 N-Pumps Series, featuring advanced non-clog Adaptive N® hydraulic technology. These pumps deliver not only high performance but also exceptional long-term reliability. 

Engineered to tackle common water and wastewater handling challenges, such as clogging, overheating, and efficiency losses, the self-cleaning N-impeller plays a key role in reducing energy consumption and minimising unplanned maintenance. This results in significant cost savings and a strong return on investment. 

Benefits

  • The clog-free, high-efficiency N-impeller is designed to effectively handle fluids with high solid concentration and fibrous materials.

  • The pump's short shaft overhang design reduces deflection and increases seal and bearing life.

  • The motor design is engineered to shift heat losses around the stator core for improved cooling.

  • The series uses a double mechanical seal system with two sets of mechanical shaft seals, each working independently to provide reliable double protection.

  • The integrated Griploc system is designed to secure the seals to the shaft without rubber friction, grub screws and shaft damage.

Options

  • Three impeller material options: hardened grey iron, hard iron (60 HRC), duplex stainless steel

  • Replaceable wear ring on grey iron and hard-iron impeller models

  • Seal options

  • Installation configurations: free-standing, semi-permanent, submersible, portable, vertical, horizontal, permanent, dry installation

SPECIFICATIONS

  • Flow: Up to 1760 li/sec

  • Head: Up to 100 m

  • Motor ratings: 1.3 kW to 680 kW

  • Discharge size: Up to 500 mm

  • Solid concentration: Up to 8%

Applications

  • Construction and tunnelling

  • Mining and quarrying

  • Industrial

  • Municipal

Talk to our Experts
Flygt 3000 Series N-Technology Pumps

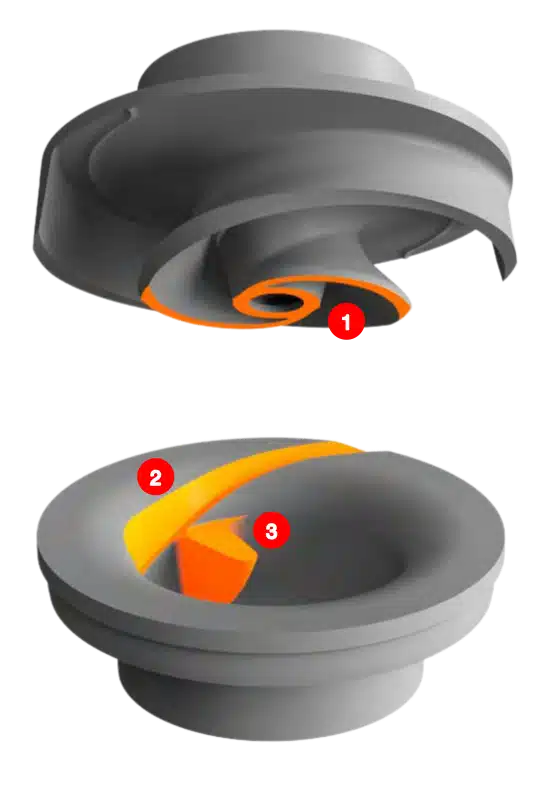

N-Technology: Impeller and Hydraulics

The Adaptive N-impeller and Adaptive N-hydraulic technologies are unique to Flygt N-pumps, combining a special geometry, dual-blade impeller and other patented features to achieve higher efficiency, smoother operation and more uptime than other pumps.

1

Backswept leading edges: The N-impeller has optimised blade geometry with backswept leading edges to prevent any solid from sticking to the impeller.

2

Relief groove: This part functions as a guide for solids for their efficient transport along the edge of the impeller vane, through the volute and out of the pump.

3

Integrated guide pin: A pin in the insert ring that clears the centre of the impeller by pushing solids along the backswept leading edges to the periphery of the impeller.
