Graco Hydraulic Fixed Ratio (HFR) Meter, Mix & Dispense System

Blacoh pulsation dampener Logo

The Graco Hydraulic Fixed Ratio HFR™ Metering System is a meter, mix and dispense system that processes multiple sealant and adhesive materials–from elastomers to epoxies. Its modular design, combined with Graco technologies and precision dispensing capabilities, gives you a system that is advanced and reliable yet affordable. Static, dynamic, or impingement mixing options, along with positive displacement pump technology, will improve throughput while reducing scrap and rework. This system provides accurate, on-ratio dispensing of materials at a constant pressure or flow rate. It offers precision dispensing that reduces material waste and lowers rework.

KNOW MORE ABOUT GRACO
Hydraulic Fixed Ratio (HFR) System

Graco Advanced Two-Component System HYDRAULIC FIXED RATIO METRE, MIX & DISPENSE SYSTEM
Hydraulic Fixed Ratio (HFR) Brochure

Design Benefits

  • Constant pressure or constant flow rate material outputs
  • Accurate, on-ratio dispensing compatible with small or large beads or with a robot with continuous flow
  • Precision dispensing saves material waste, reducing scrap and rework in your plant
  • Easier maintenance with standard parts - eliminate costly pump rebuilds and the need for backup pumps
  • Lower cost than basic shot meters or gear pumps

Materials

  • Urethanes
  • Polysulfides
  • Epoxies
  • Acrylics
  • Methyl Methacrylate Adhesive (MMA)
  • Silicones
  • Filled and unfilled materials

Industries

  • Insulated glass
  • Medical
  • Solar
  • Transportation
  • Flexible packaging
  • Composites
  • General assembly

Applications

  • Batch processing
  • Potting
  • Encapsulating
  • Vacuum infusion
  • Automated bead applications
  • Pultrusion

Components & Features of Graco Hydraulic Fixed Ratio (HFR) System

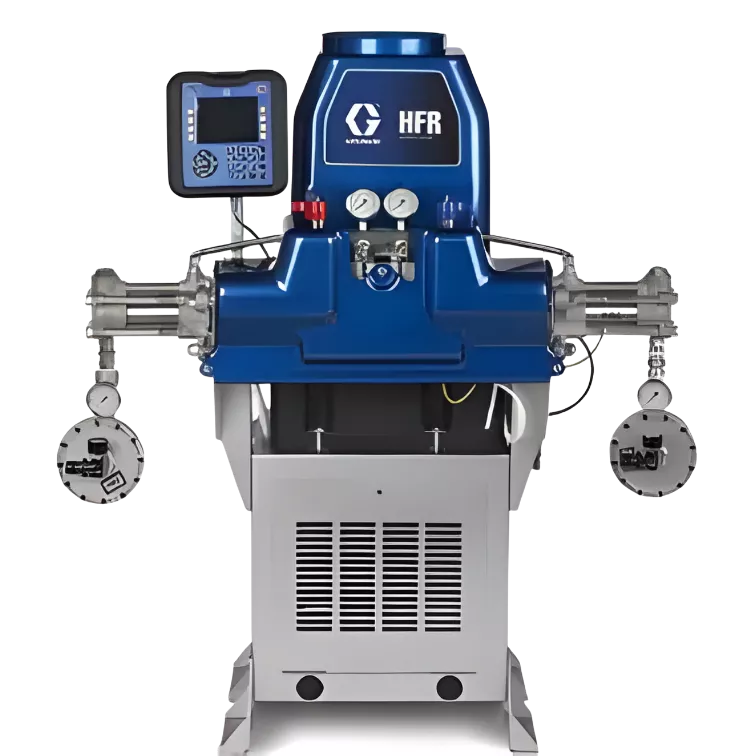

Graco Hydraulic Fixed Ratio (HFR) Meter, Mix & Dispense System
  1. Motor Control Module
    • In sync with the Advanced Display Module to make real-time adjustments and deliver precise dispense
    • Closed-loop technology providing pressure and flow control
  2. Graco Z-Series Horizontal Pumps
    • Precision control, eliminating pressure spikes
    • Easy-to-replace cartridge packings, seals, elastomeric, and pump seats
  3. Advanced Display Module
    • Stores 100 shot sizes and five sequences of 20 positions each
    • Sets flow rate through ADM or communications gate way
    • USB drive for data reporting
  4. Fluid Regulators
    • Manage inbound pressures
  5. Fully Configurable
    • Options to suit your material and application
    • Shorter lead time than custom solutions
    • Standard wear parts availability
