Graco Check Mate Pumps and Supply System

Check-Mate Pumps and Supply Systems reliably transfers one-component sealants, adhesives and other medium to high-viscosity fluids from pails or drums to dispensing and metering systems.

Packed with innovative features, advanced pump, and air motor technologies, Graco Check Mate Supply Systems help maximise your plant’s production capacity.

Features & Benefits

Know more about the features & benefits of using Graco Check Mate Pumps and Supply System.

Available as a standalone pump or system with elevator or ram
Minimises left-over materials and waste
High-quality, durable parts
Hard part coating extends wear life
Pressure ratio range from 5:1 to 85:1
Tracks material usage and flow
Maximum life option available for abrasive materials

Materials

We customise pumps according to your specific application. Get in touch with us to know your options.

Sealants
Adhesives
Silicones
Epoxies
Acrylics
Urethanes
Inks
Mastics
Lubricants
Butyls
PVC sealers
Caulking compounds

Applications

Here is a list of industrial applications for which Graco Check Mate Pumps and Supply System are commonly utilized.

Feeding high-volume applicators, multiple meters or proportioners
Transferring sealants or adhesives to one or more operator dispensing stations
Packaging drums, pails, caulking tubes or chubs

CHECK MATE PUMPS ADVANTAGES

Xtreme Coupler: Quick-disconnect coupler for easy maintenance
Optional Enclosed Wet Cup: Prevents seal contamination, reduces maintenance, extends seal life, allows recirculation
Cartridge Throat Packings: Allows easy servicing without removing from the ram
Cast Outlet and Inlet Housing: Improves structural integrity
Piston Valve with Floating Piston Seal: Maximises pressure balance over a range of viscosities
Replaceable Seat: Minimises service cost
Floating Priming Plate: Provides balance and uniform flow

Check-Mate Pumps and Supply Systems reliably transfers one-component sealants, adhesives and other medium to high-viscosity fluids from pails or drums to dispensing and metering systems.

CHECK MATE SUPPLY SYSTEMS ADVANTAGES

Graco Check-Mate Supply Systems are available in various configurations using different ratios of Check-Mate, Viscount 2, or Monark piston pumps and different dispensing systems such as the ram or elevator.

Available in Carbon Steel and Stainless Steel; SST models for waterborne compatibility
Large internal port for maximum flow
Floating piston seal and priming plate improve balance and performance
Maintains balance over a wide viscosity range
Minimal bead distortion for critical dispensing of expensive materials
High flow and pressures increase production
High output per cycle reduces wear for longer life and lower repair costs
Pump ratios: 2.4:1, 5:1, 14:1, 20:1, 23:1, 26:1, 29:1, 36:1, 40:1, 55:1, 61:1, 65:1, 68:1

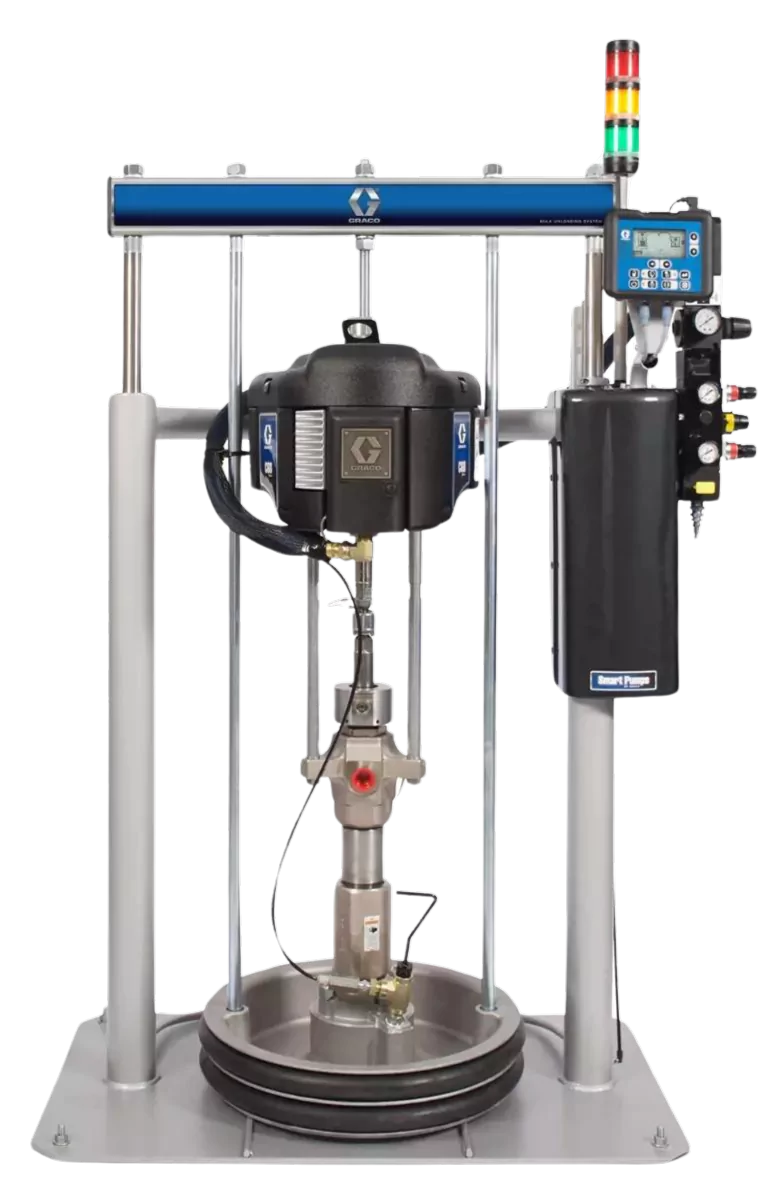

Graco Check-Mate pumps and supply system with Smart Pump controls, designed for high-viscosity fluid transfer and precision material dispensing. Features pneumatic piston pump technology, electronic monitoring, and automated safety controls for industrial coating and lubrication applications.
